Quectel SG368Z Series User Manual

Smart Module Series
SG368Z_Series_Hardware_Design 90 / 113
5.4. RF Connector Recommendation
If the RF connector is used for antenna connection, it is recommended to use U.FL-R-SMT receptacle
provided by Hirose.

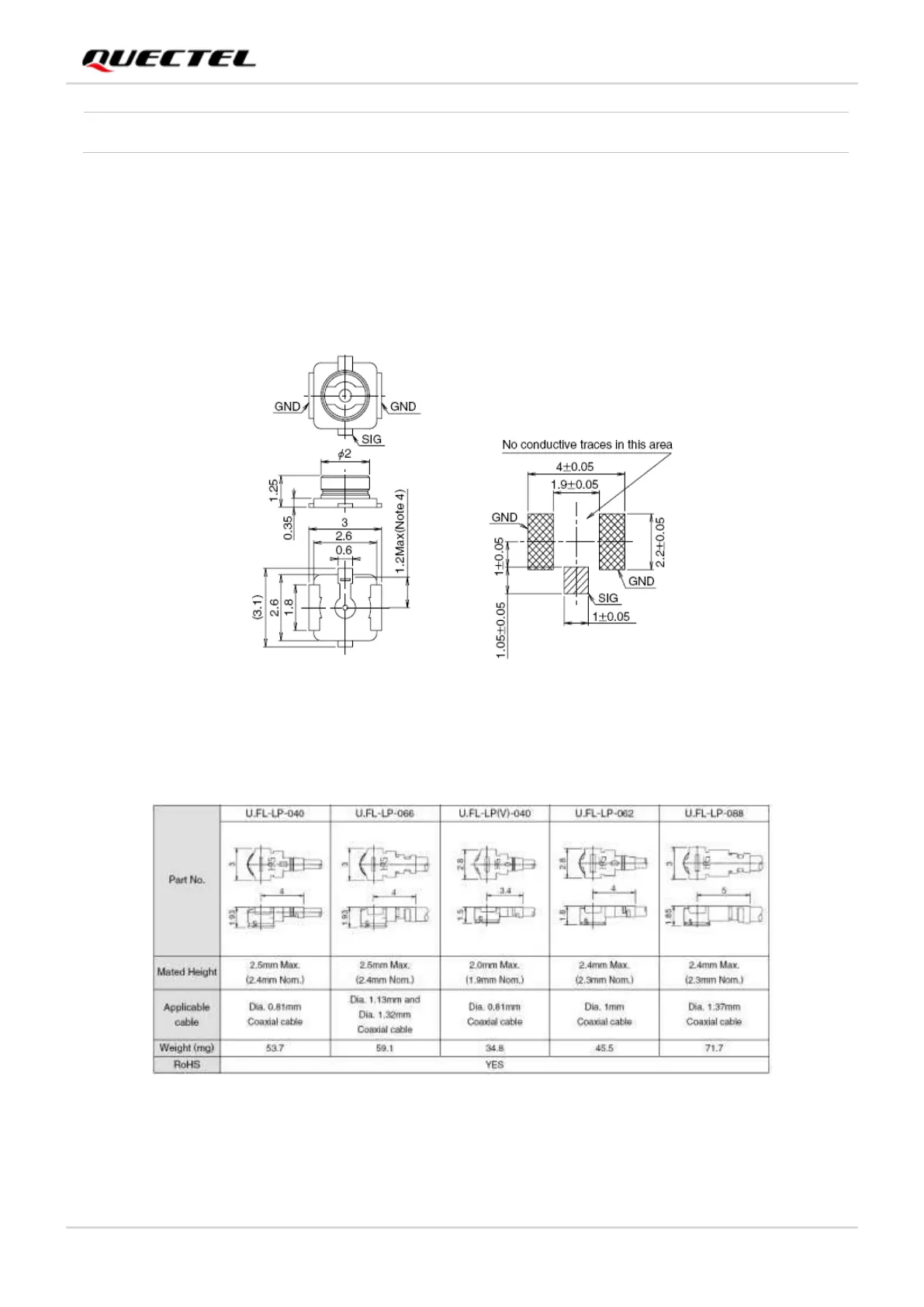

Figure 35: Dimensions of the Receptacle (Unit: mm)
U.FL-LP series mated plugs listed in the following figure can be used to match the U.FL-R-SMT.
Figure 36: Specifications of Mated Plugs (Unit: mm)
Cable insertion loss: < 1 dB
