7.2. Recommended Footprint

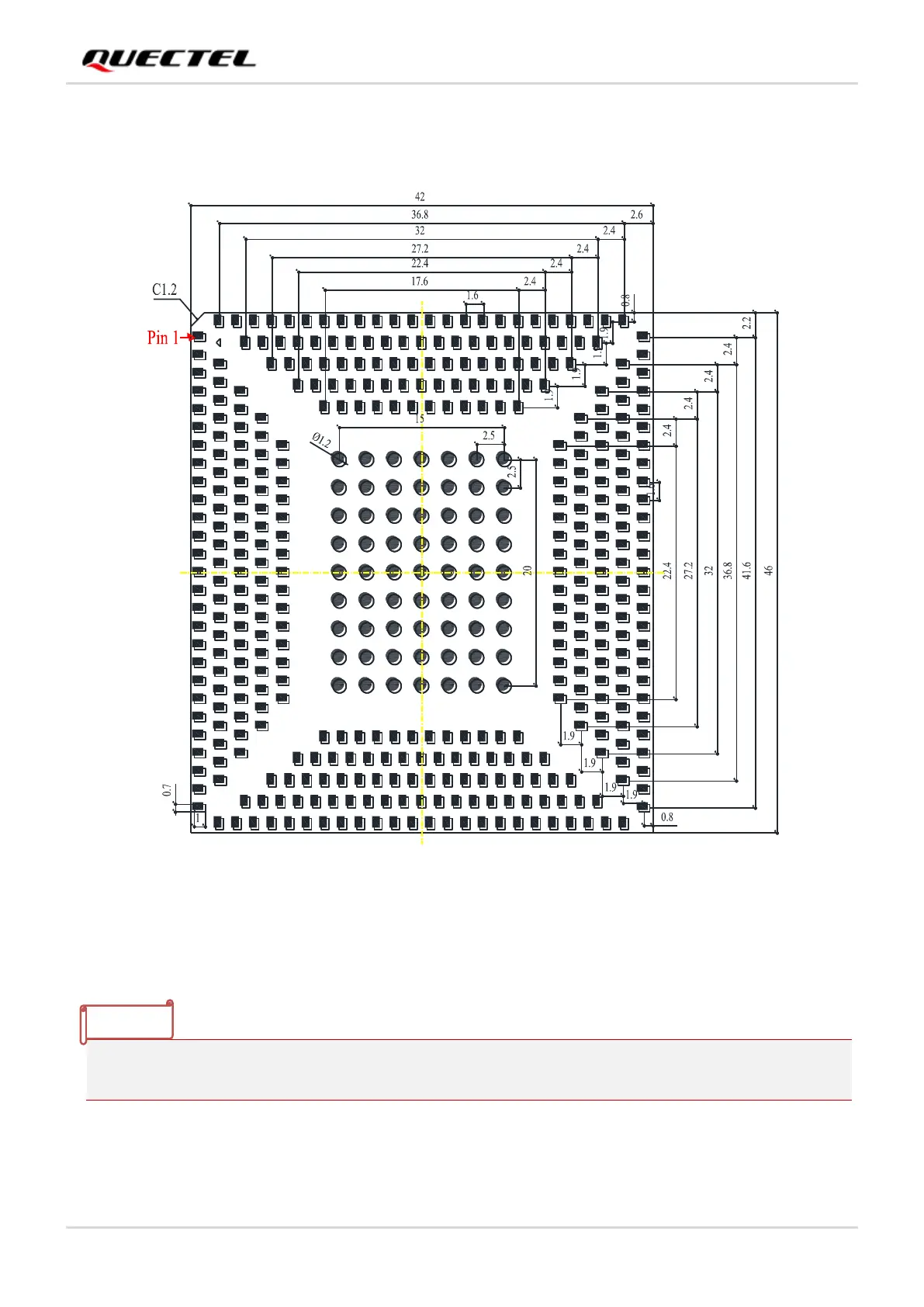

Figure 40: Recommended Footprint
.
Keep at least 3 mm between the module and other components on the motherboard to improve
soldering quality and maintenance convenience.
