Smart Module Series
SG368Z_Series_Hardware_Design 99 / 113

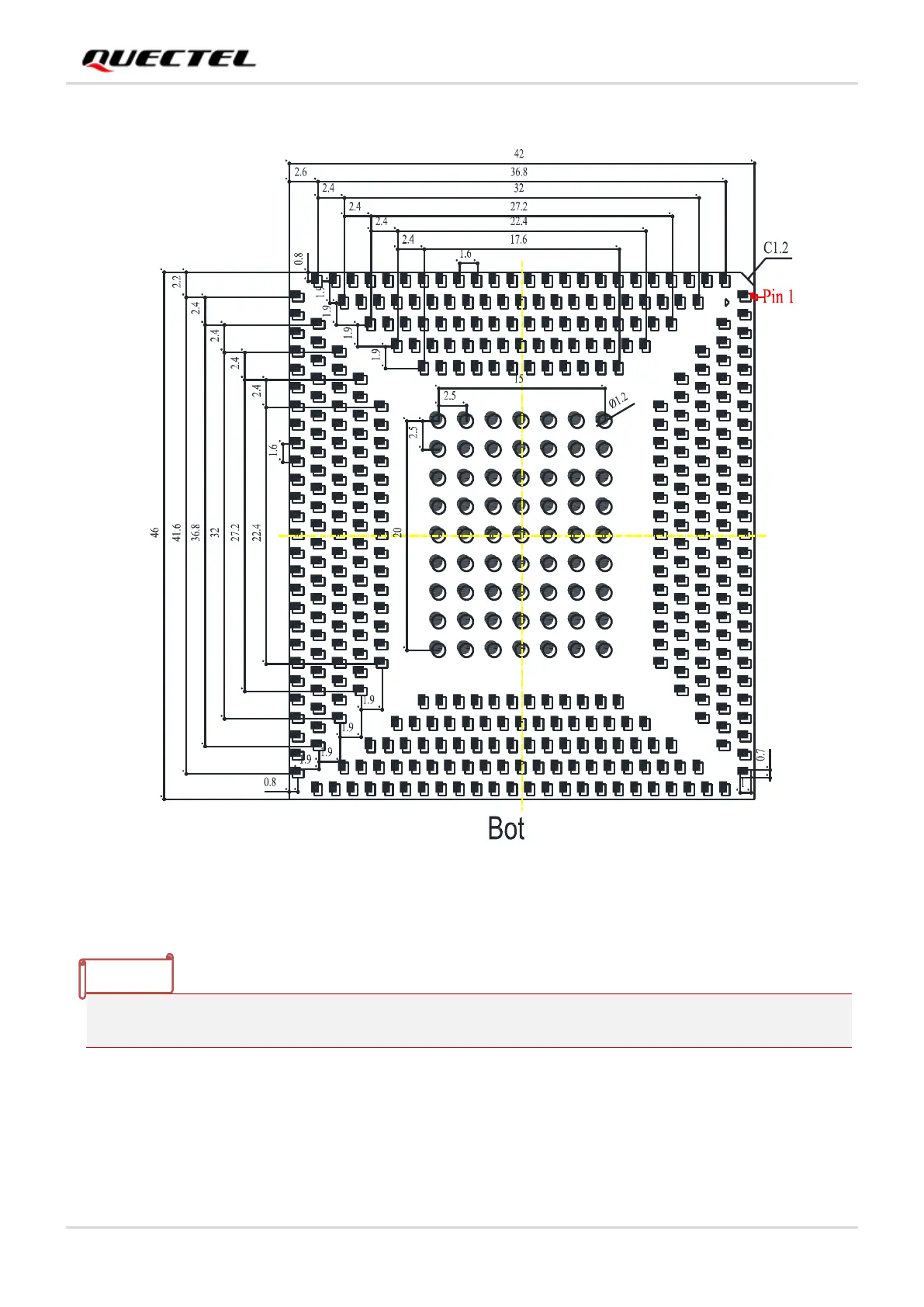

Figure 39: Bottom Dimensions
⚫
The package warpage level of the module conforms to the JEITA ED-7306 standard.
NOTE
