Smart Module Series
Smart_EVB_G5_User_Guide 26 / 66

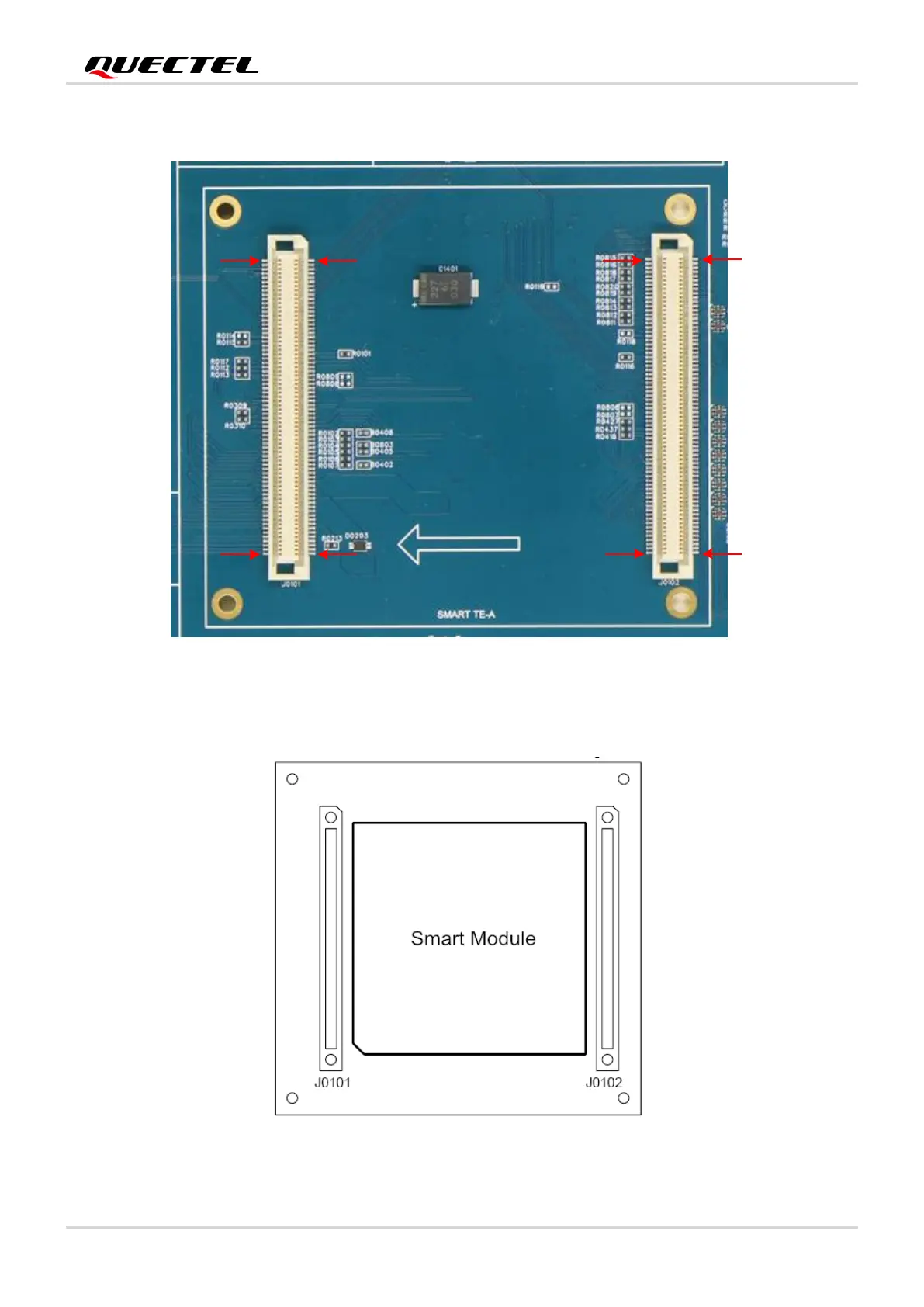

The following two figures show the two B2B connectors and the sketch map of the Smart TE-A.
1
2
140 139
J0101
1
2
140
139
J0102
Figure 12: B2B Connectors
Figure 13: Sketch Map of Smart TE-A (Top View)
