QUICK GPSeries INSTALLATION AND USER’S MANUAL - REV000A
10
6.0 - Important cautions
• Stay clear of chains, ropes and gypsy.
• Operate the windlass from a position where it is possible to supervise the work area
• Make sure the electric motor is not powered when the windlass is used manually (even when using the handle to
disengage the clutch), because people with windlass remote controls (remote push-button panel or radio control)
might accidentally operate it.
• Secure the chain with a retainer before sailing off.
• DO NOT operate the windlass by using the electrical power when the handle is inserted in the drum or into the gypsy cover.
• Quick® recommends using a suitable power fuse/thermal-magnetic/hydraulic-magnetic protection for the motor
used, to protect the motor from overheating or short circuits.
• The circuit breaker can be used to isolate the windlass control circuit, thus avoiding accidental activation.

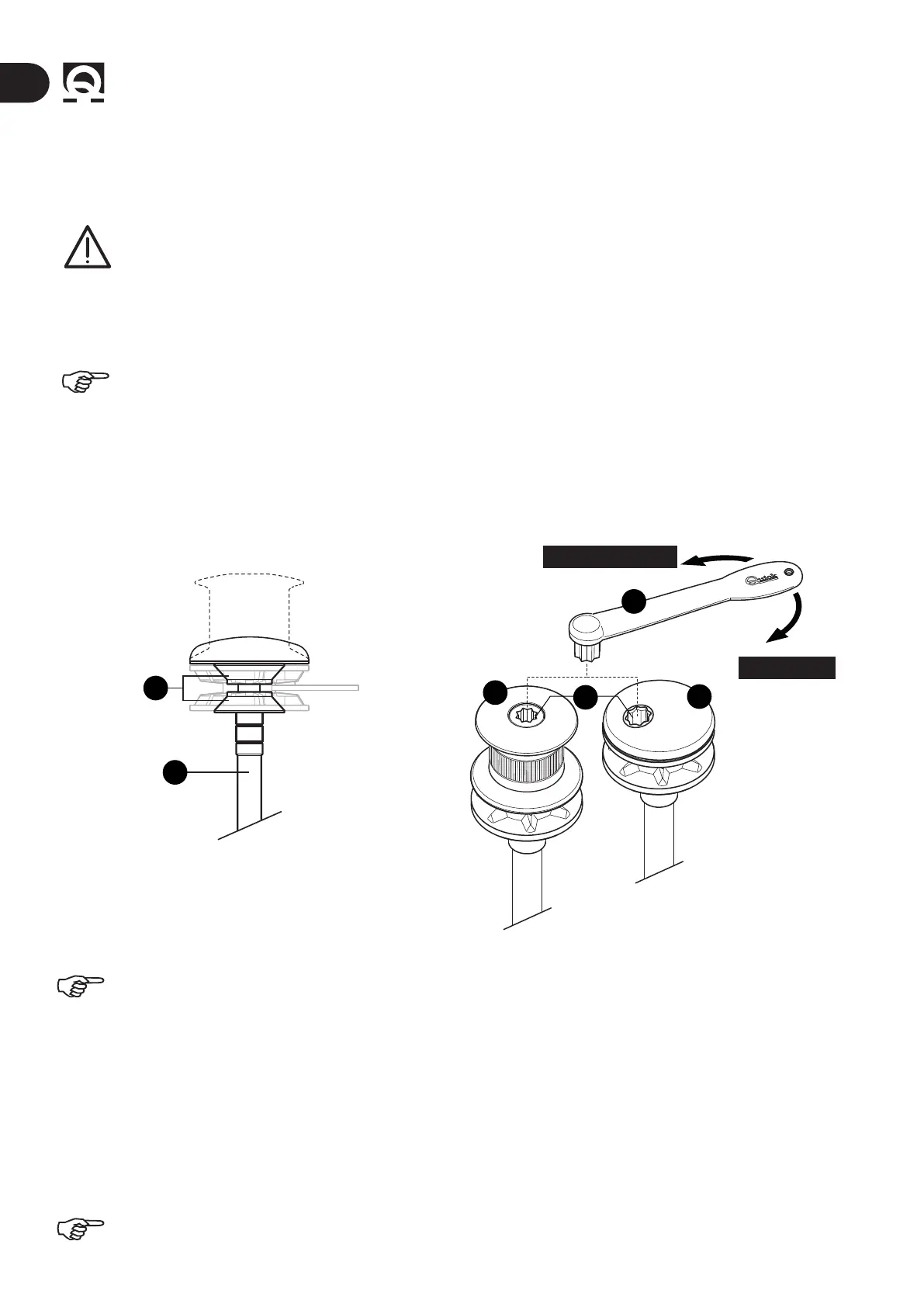

6.1 - Clutch use
The clutch (B) provides a link between the gypsy and the main shaft (A). The clutch can be released (disengagement) by using
handle (C) which, when inserted into bush (D) of the drum (E) or into the gypsy cover (F), must be turned counter-clockwise.
The clutch will be re-engaged by turning it clockwise.
A
WEIGHING THE ANCHOR
A Turn on the boat engine.
B Make sure the clutch is engaged and remove the handle.
C Press the UP button on the control provided. (*)
Check the upward movement of the chain for the last few meters in order to avoid damage to the bow.
CASTING THE ANCHOR
The anchor can be cast by using the electrical controls or manually.
Manually
The clutch must be disengaged allowing the gypsy to revolve and letting the chain or rope fall into the water.
To slow down the chain, the handle must be turned counter-clockwise.
Electrically
To cast the anchor by using the electrical power, press the DOWN button on the control provided.
In this manner, anchor casting is under control and the chain unwinds evenly.
In order to avoid any stress on the windlass once the boat is anchored, fasten the chain or secure it to a safe point by
means of a rope.
B
RE-ENGAGED
DISENGAGEMENT
D
C
F
E
6 - Cautions & Use
