QUICK GPSeries INSTALLATION AND USER’S MANUAL - REV000A
8

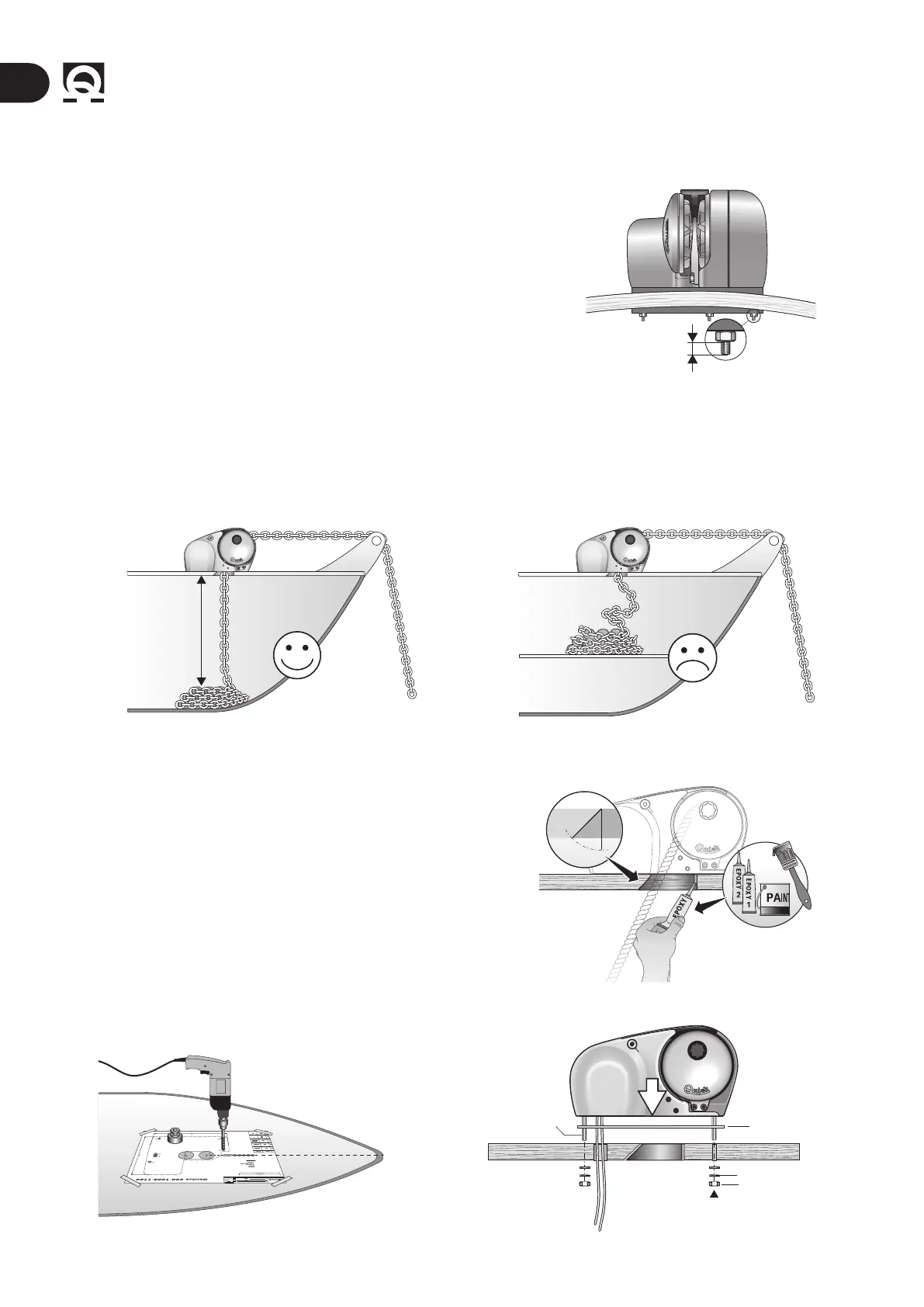

4.1 - Installation procedures
A Identify the ideal position and drill the holes using the
drilling template supplied.
B Remove the excess material from the rope/chain passage
hole,nishitandsmoothitwithaspecicproduct(marine
paint, epoxy resin or gel) ensuring the free passage of the
chain.
C Position the upper section inserting the gasket between
the deck and the base. Fix the windlass by screwing the
nutsontothexingstuds.
Connect the supply cables from the windlass to the
reversing contactor unit.
STUD
B DECK LEVEL
Ensure that the upper and lower surfaces of the deck are as
parallel as possible. If this is not the case, compensate the
differenceappropriately(g.B).
A lack of parallelism could result in a loss of motor power.
Thedeckthicknessmustbeincludedamongthegureslisted
in the table.
In case of different thickness, please contact your Quick
®
dealer.
C PEAK DEPTH AND BOW ROLLER HEIGHT
Theremustbenoobstaclestothepassageofcables,ropeandchainunderdeck(g.1C).
Insufcientdepthofthepeakcouldcausechainjamming(g.2C).
Max
5 mm (3/6”)
GASKET
NUT
GROWER
1C 2C
40 cm (16”)
4 - Installation
