QUICK GPSeries INSTALLATION AND USER’S MANUAL - REV000A
14
No. NAME
1 WINDLASS LEVER - NYLON
2 GYPSY COVER
3 CLUTCH CONE
4 A GYPSY 6 MM
4B GYPSY 7 MM - 1/4”
4C GYPSY 8 MM
4D GYPSY 5/16”
5 SCREW
6 GROWER
7 CHAIN STRIPPER
8 OIL SEAL
9 SCREW
10 SCREW
11 WINDLASS COVER
12 PRESSURE LEVER SCREW
13 PRESSURE LEVER SPRING
14 PRESSURE LEVER
15 REED SENSOR
16 CASING GASKET 150W
17 BEARING
18 OUTPUT SHAFT GEAR
19 SHAFT
20 PIN
21 EXTERNAL SNAP RING
22 BEARING
23 GEAR
24 GEAR
25 PIN
26 WINDLASS BASE
27 SCREW
28 SCREW
29 MOTOR
30 SCREW
31 PRESSURE LEVER PIN
32 PIN
33 WASHER
34 ROLLER SHELL
35 GEAR
36 CRANKSHAFT WHEEL
37 GASKET
38 STUDS
39 WASHER
40 SERRATED WASHER
41 NUT
42 HEXAGON HOLLOW CYLINDRICAL
SCREW
43 SPACER
44 O-RING

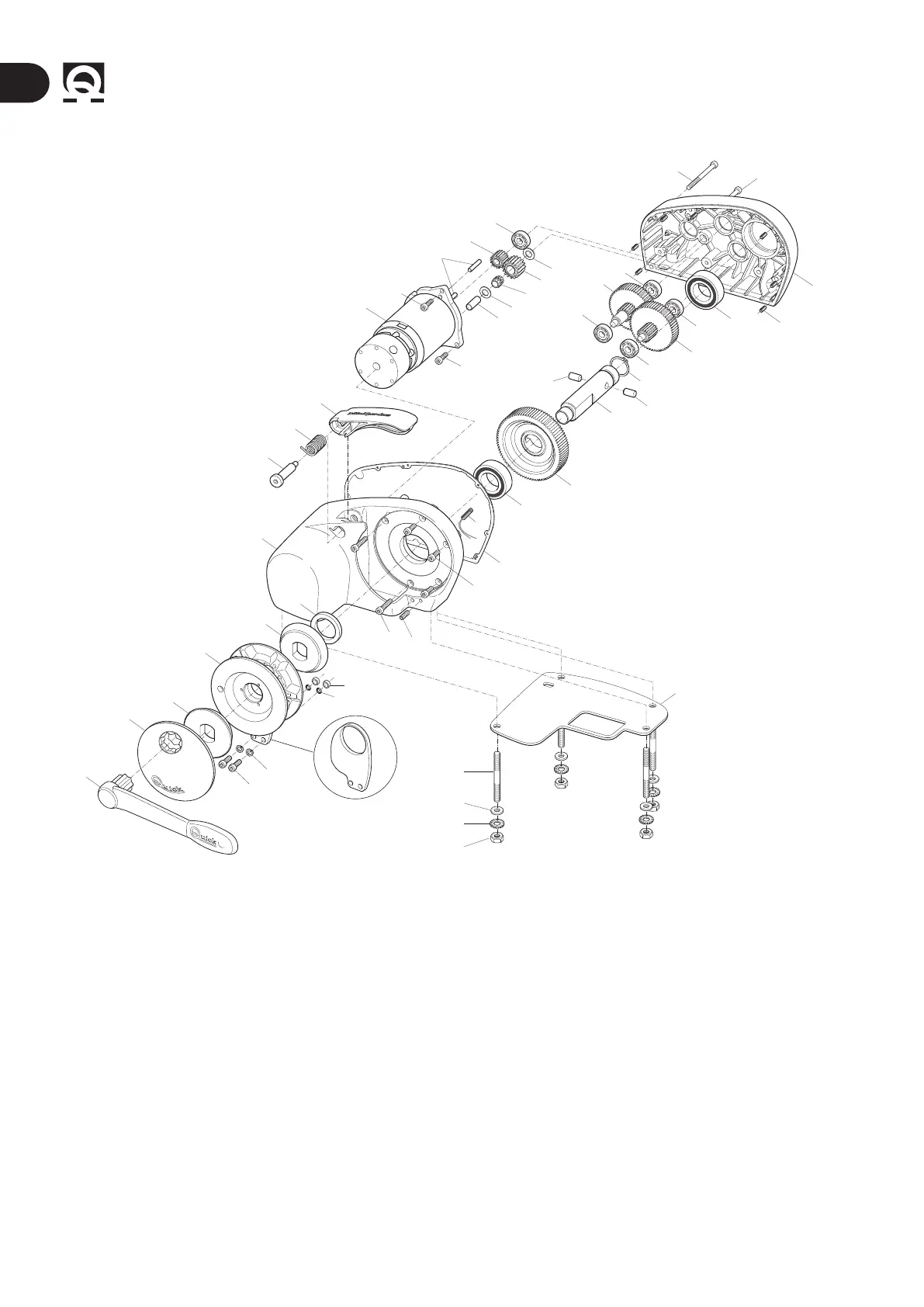

9 - List of components GP2 500
29
30
31
30
21
22
22
23
22
18
17
27
38
39
40
36
22
41
14
13
12
11
16
10
9
42
32
33
34
35
33
37
28
15
25
26
17
7
3
8
4
3
2
1
5
6
44
43
20
20
19
22
24
