Quick GP2 2000 User Manual

GP Series
EN
QUICK GPSeries INSTALLATION AND USER’S MANUAL - REV000A
16

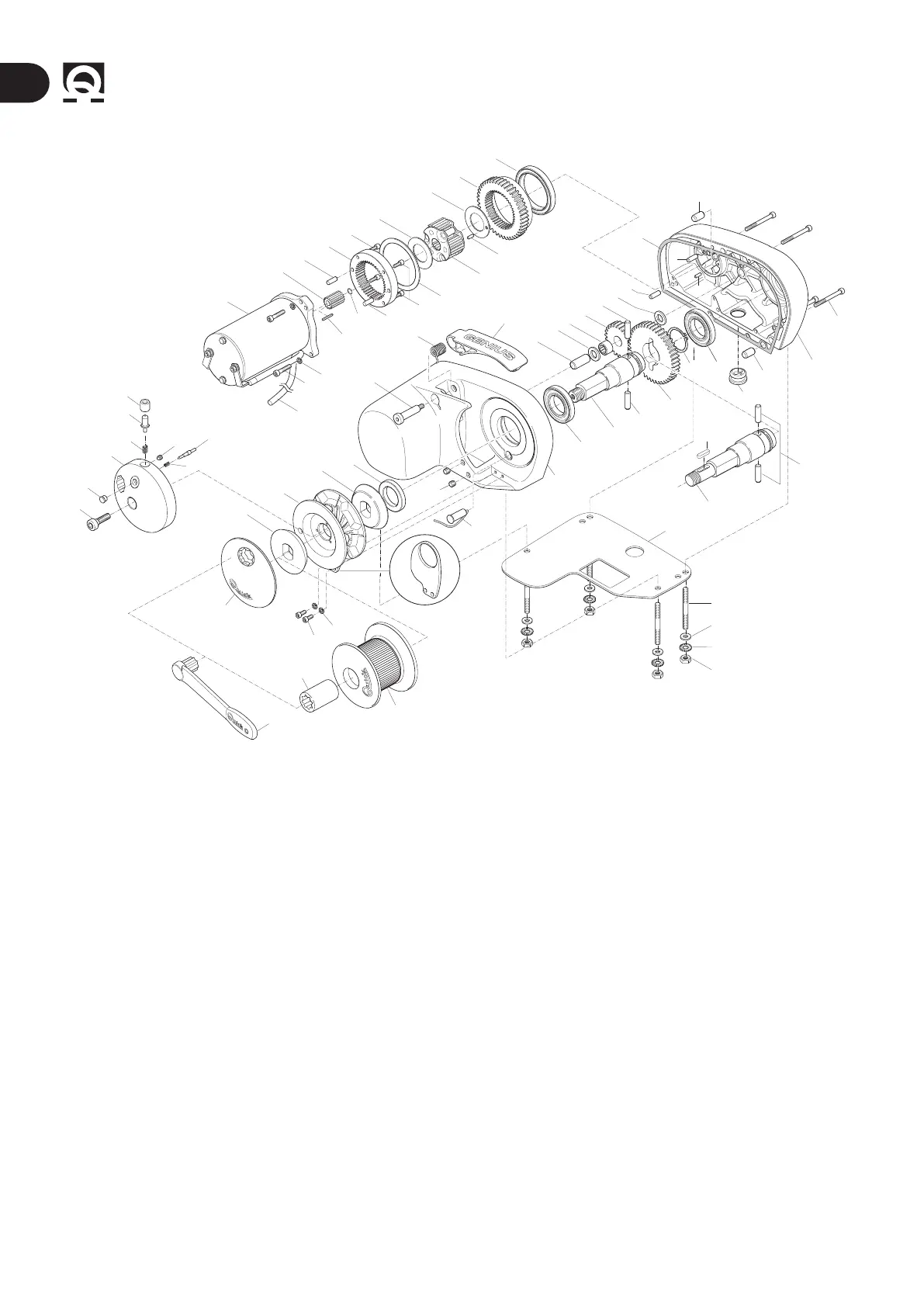

11 - List of components GP2 1500/2000
3
22
17
50
45
23
17
53
24
25
24
30
15
46
47
3
26
28
21
18
20
19
27
18
27
27
10
9
7
8
7
1
43
12
11
3
5
6
5
4
3
2
52
13
51
38
39
40
41
42
14
48
44
32
31
35
34
34
49
36
51
33
29
16
37
59
60
58
54
61
62
56
55
57
No. NAME
1 A MOTOR 800W 12V
1B MOTOR 800W 24V
1C MOTOR 500W 12V
2 SOLAR GEAR
3 PIN
4 FIXED CROWN
5 SCREW
6 RING Ø 80
7 FIFTH WHEEL
8 PLANETARY GROUP
9 MOBILE CROWN
10 BEARING
11 SNAP RING
12 KEY
13 SCREW
14 PRESSURE LEVER
15 PRESSURE LEVER SPRING
16 PRESSURE LEVER SCREW
17 PIN
18 WASHER
19 IDLE GEAR
20 BEARING
21 PIN
22 SCREW
23 WINDLASS BASE
24 BEARING
25 SNAP RING
26 OUTPUT GEAR
27 PIN
28 SHORT SHAFT
29 OIL SEAL
30 WINDLASS COVER
31 ASSEMBLED REED SENSOR
32 CHAIN STRIPPER
33 SCREW
34 WINDLASS CLUTCH CONE
35 A GYPSY “GP2” 6 MM
35B GYPSY “GP2” 7 MM - 1/4”
35C GYPSY “GP2” 8 MM
35D GYPSY “GP2” 5/16”
36 GYPSY COVER
37 NYLON WINDLASS LEVER
38 GASKET/TEMPLATE
39 STUD
40 WASHER
41 SERRATED WASHER
42 NUT
43 CABLE
44 SCREW
45 CASING GASKET
46 LONG SHAFT
47 KEY
48 DRUM
49 BUSH
50 PIN
51 GROWER
52 PIN
53 CABLE GLAND
54 GYPSY COVER FF
55 SPRING
56 BRAKE PIN
57 BRAKE PIN COVER
58 DOWEL
59 PIN
60 SPRING
61 KNOB
62 SCREW
