GP Series
EN
GP Series
QUICK GPSeries INSTALLATION AND USER’S MANUAL - REV000A
13
WARNING: make sure the electrical power to the motor is switched off when working manually on the windlass.
Carefully remove the chain from the gypsy or the rope from the drum.
Quick® windlasses are made of materials resistant to the marine environment: it is essential, in any case, to periodically
remove salt deposits that form on the external surfaces to avoid corrosion and consequently damage to the device.
Thoroughly wash the surfaces and parts where salt can deposit with fresh water.

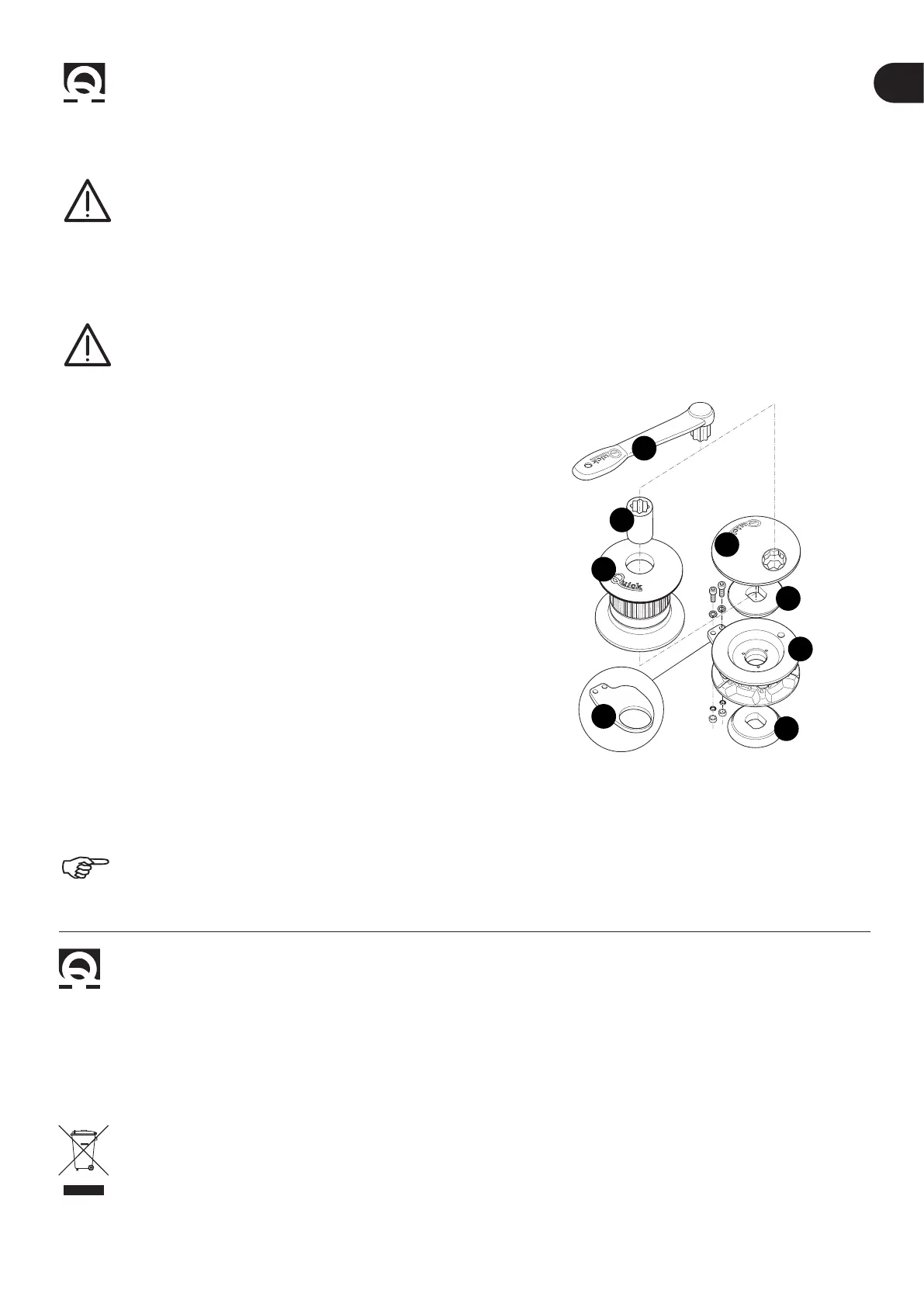

Once a year, disassemble the gypsy and the drum according to the following sequence:
WARNING: make sure that the anchor and its rope or chain are securely fastened to a bollard or other strong point
on the boat.
Drum version
• Use the handle (A) to loosen the bush (B); pull off the drum (C1)
• Remove the top clutch cone (D)
• Undo the retaining screws (E) to remove the chain stripper (F)
• Remove the gypsy (G)
• Remove the bottom clutch cone (H)
No-drum version
• Use the handle (A) to remove the gypsy cover (C1)
• Remove the top clutch cone (D)
• Undo the retaining screws (E) to remove the chain stripper (F)
• Remove the gypsy (G)
• Remove the bottom clutch cone (H)
Clean all the parts removed to avoid corrosion, and grease (with marine grease) the shaft thread and the gypsy where the
clutch cones rest.
Remove any oxide deposits from the terminals of the electric motor and the reversing contactor unit; grease them.
Ifrequired,windlassmustbedisassembledbyqualiedpersonnel.
Make sure that the motor gearbox is cold before disassembling it.
The disposal must be carried out according to the regulations of the place where the work is carried out.
7 - Maintenance
Aswithinstallation,attheendofthisproductlife,dismantlingmustbecarriedoutbyqualiedpersonnel.
This product is made up of various materials, some can be recycled and others must be suitably disposed of; enquire about the
recycling or disposal systems provided for by local regulations for this product category.
Some parts of the product may contain pollutants or hazardous substances that, if dispersed, may be harmful to the
environment and human health.
As indicated by the symbol on the side, it is forbidden to dispose of this product as domestic waste.
Separate the products for disposal in accordance with the regulations in force in your area or return the product
to the seller when purchasing a new equivalent product. Local regulations may impose severe penalties for the
improper disposal of this product.
8 - Product disposal
A
B
E
G
H
F
C2
C1
