Quicksilver 555PH — System & Component Overview and Operaon
Cockpit Table
17. Sun Awning (oponal)
If installed, an oponal sun awning is available to provide protecon from the sun. The sun awning
consists of a rail on the hardtop and a canvas.
Operaon
Within the hardtop rails (port and starboard), there is a pin that holds the awning rail in place. To extend
the sun awning, simply push the pin on both sides and slide the rail out. The pins will re-engage and lock
the rail when fully extended. To install the sun awning canvas, slide the welng (piping) located on front
Table base
Table leg
Table
Table storage
Table leg storage
16. Cockpit Table (oponal)

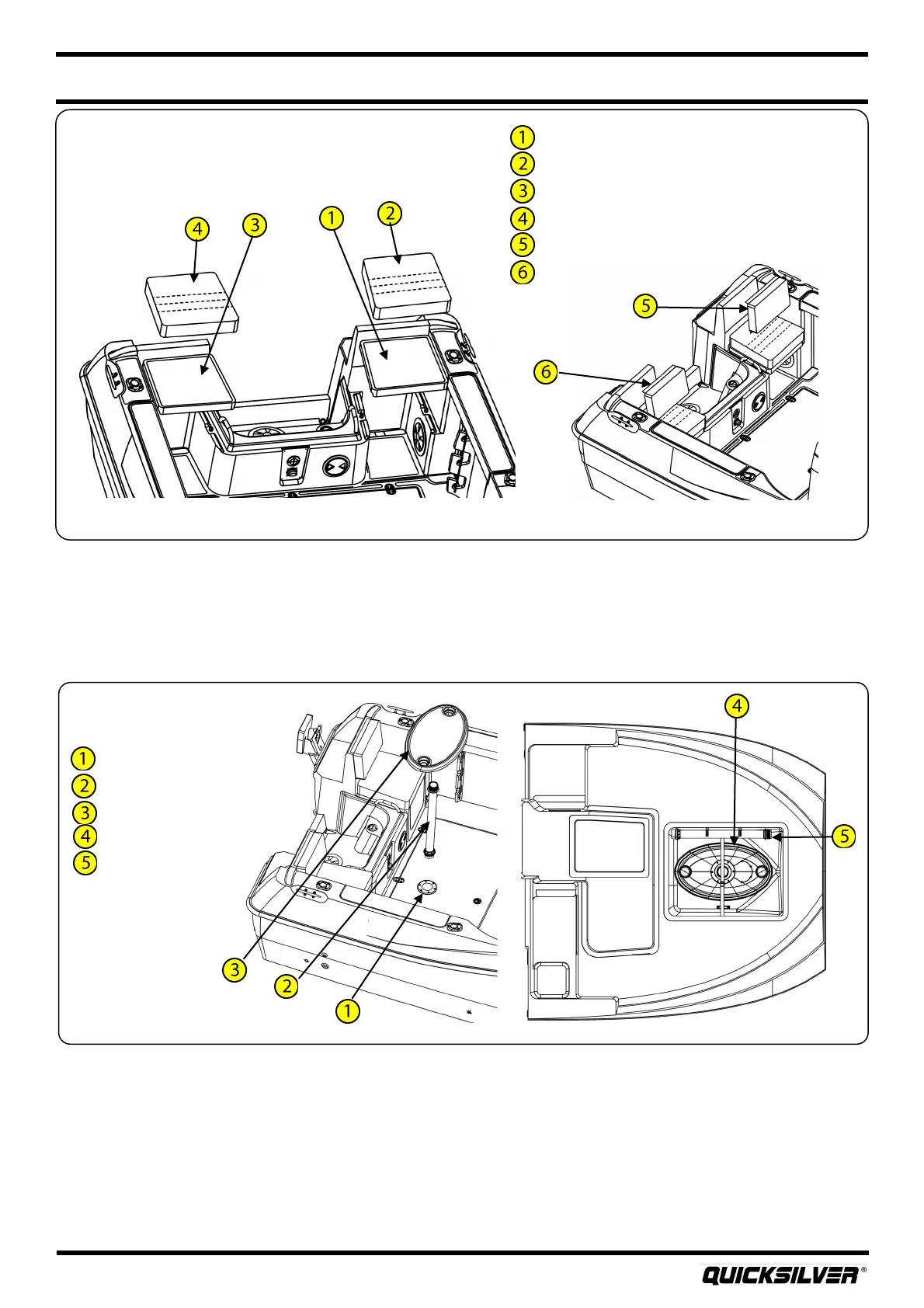

On your boat, a cockpit table is available for entertaining. The table and table leg are removable and
can be stored inside the forward cabin storage. To install the table, rst remove the plasc cover lo-
cated in the table base plate. Next, push and lock the table leg into the base plate. Finally, place the
table onto the table leg.
Cockpit Jump Seat Installaon Port seat base
Port seat base cushion
Starboard seat base
Starboard seat base cushion
Port seat backrest
Starboard seat backrest
