Quicksilver 555PH — System & Component Overview and Operaon
31
Sun Awning
In rough seas, the sun awning should be stored to avoid
damage to the rail and or canvas.

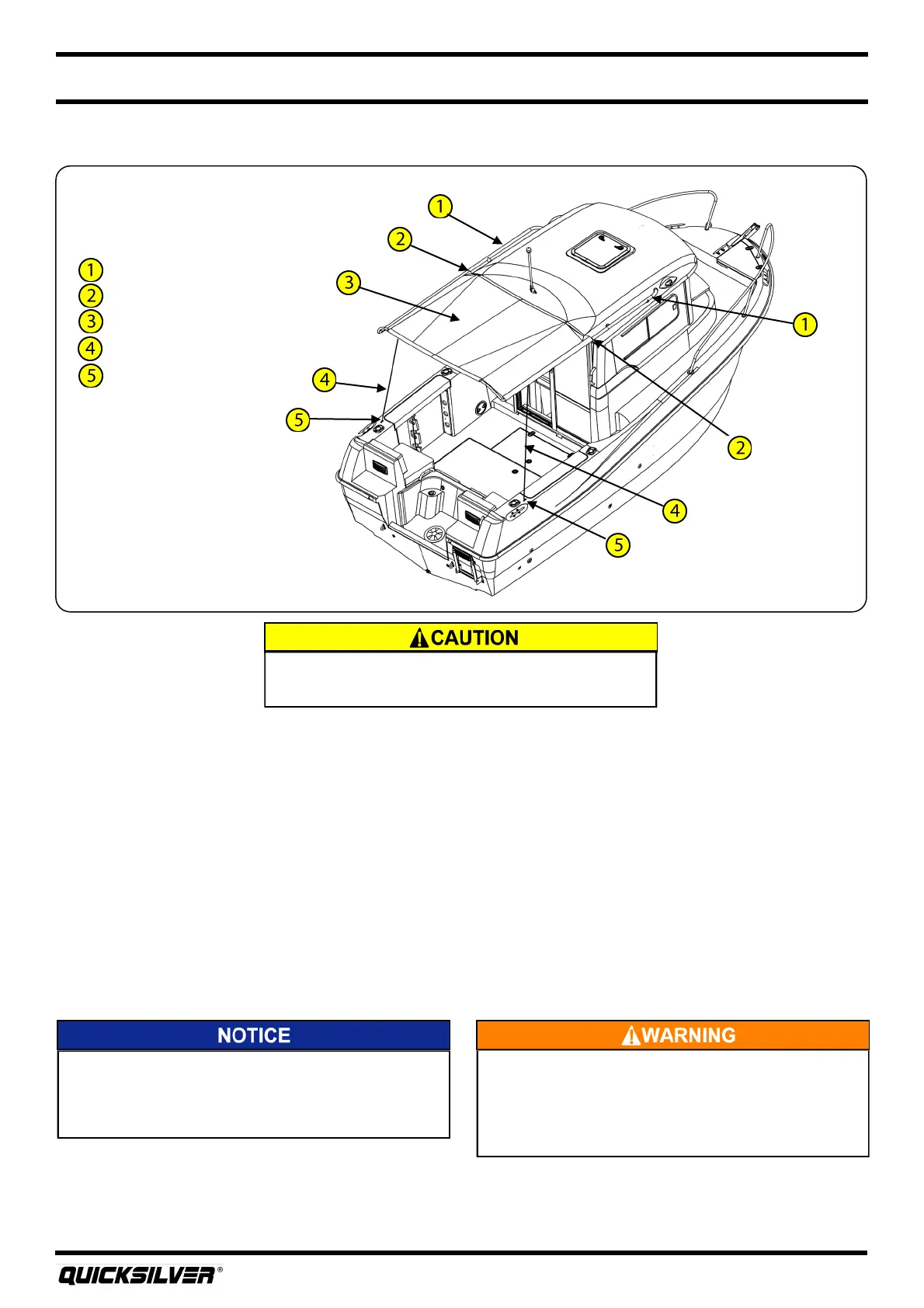

Sun awning rail
Pull pin (P&S)
Sun awning canvas
Sun awning straps (P&S)
Deck eyelets (P&S)
18. Canvas (oponal)
As an opon, there is a bimini with frame and a bimini with vinyl panels that fully encloses the cockpit.
Bimini
When not in use, the bimini can be stored in an a posion where it does not interfere with the use of
the boat. In this posion, always make sure that the bimini is secured in the canvas boot. To use the
bimini, remove the canvas boot and rotate the bimini frame forward and secure the canvas to the
hardtop.
Bimini with Enclosure
In addion to the bimini, clear vinyl panels can be installed to enclose the cockpit. Each panel aaches
to the bimini with a zipper and snaps or studs are used to aach to the deck.
edge through the sun awning track installed on the hardtop. Next connect the canvas to the sun awning
rail using the zippers on the edge of the canvas Finally, connect the straps to the eyelets on the deck.
NEVER TRAILER THE CANVAS BIMINI, BIMINI WITH
ENCLOSURE, OR SUN AWNING IN THE DEPLOYED POSITION.
The bimini canvas must be secured in the canvas boot with
the rails in the stored posion before trailering.
NEVER OPERATE THE VESSEL WITH THE CANVAS
ENCLOSURE UNLESS THERE IS VENTILATION THROUGHOUT
THE BOAT. The forward and a canvas panels must be
removed to allow air ow through the boat so Carbon
Monoxide cannot accumulate.
