Quicksilver 88688A26 - Starboard Side Control Module Cable Installation; Shift Cable; Throttle Cable

Starboard Side Control
Module Cable Installation
(All Models except 250 hp 3.4 Litre
Outboard and Above)
ACAUTION
Before tightening cable fastener locknut, be sure that
pin on end of cable fastener is completely thru cable
end and shift/throttle lever. A pin, that is partially thru
cable and lever, may cause fastener to bend when
locknut is tightened.

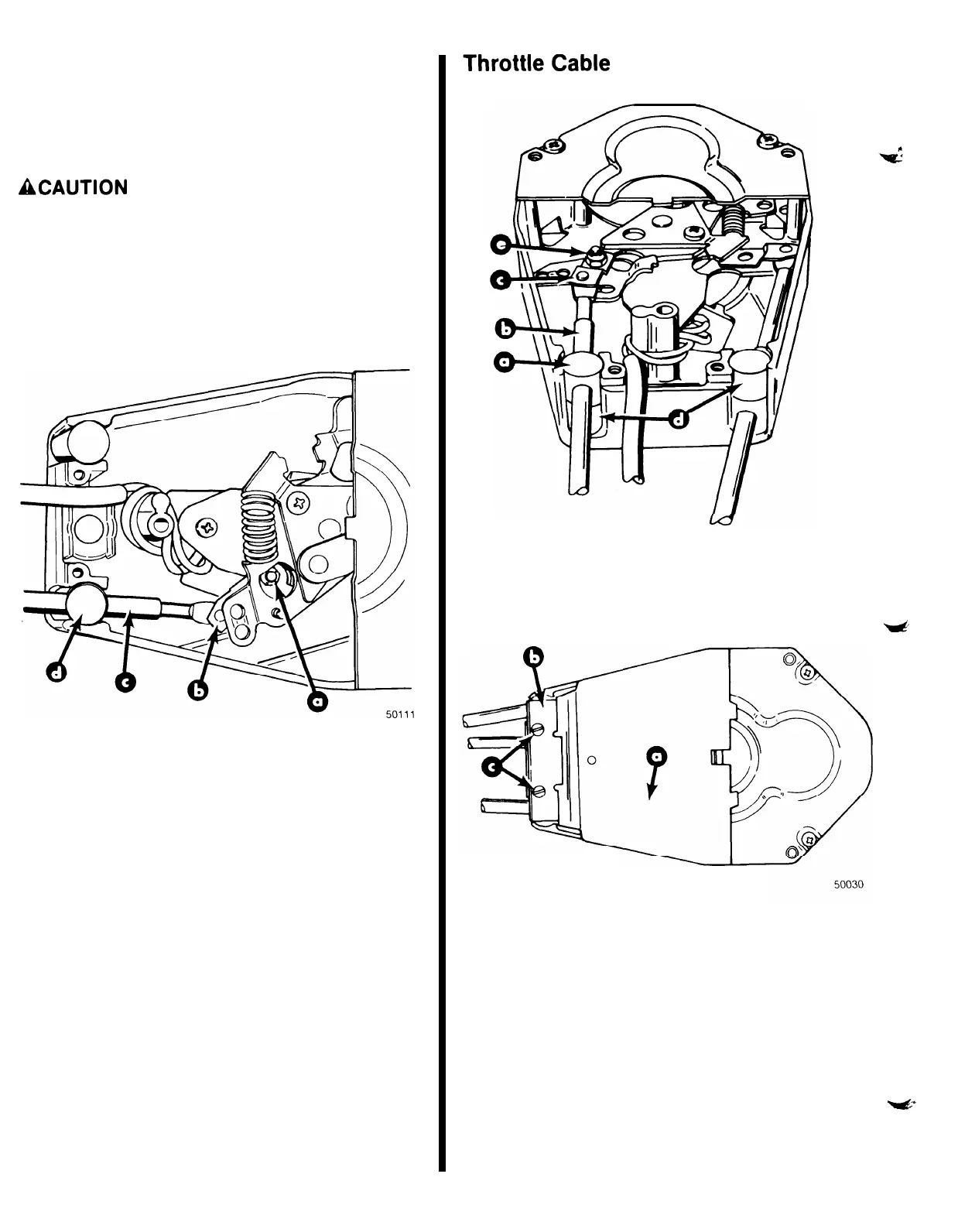

Shift Cable
a - Locknut (Cable Fastener)
b
- Cable Fastener
c
- Shift Cable
d
- Cable Anchor Barrel
Torque shift cable fastener locknut to 20 to 25 lb. in.
(2.3 to 2.8 N.m).
50030
a - Throttle Anchor Barrel
b
- Throttle Cable
c
- Cable Fastener
d
- Spacers (From Parts Bag)
e
- Cable Fastener Locknut
Torque throttle cable fastener locknut to 20 to 25 lbs
in. (2.3 to 2.8 N.m.)
a - Access Cover
b
- Cable Retainer
c - Screws
Position access cover and cable retainer onto back
side of control and secure both to control with 2
screws. Torque access cover and cable retainer screws
to 60 Ibs. in. (7
N.m.)
-4-
