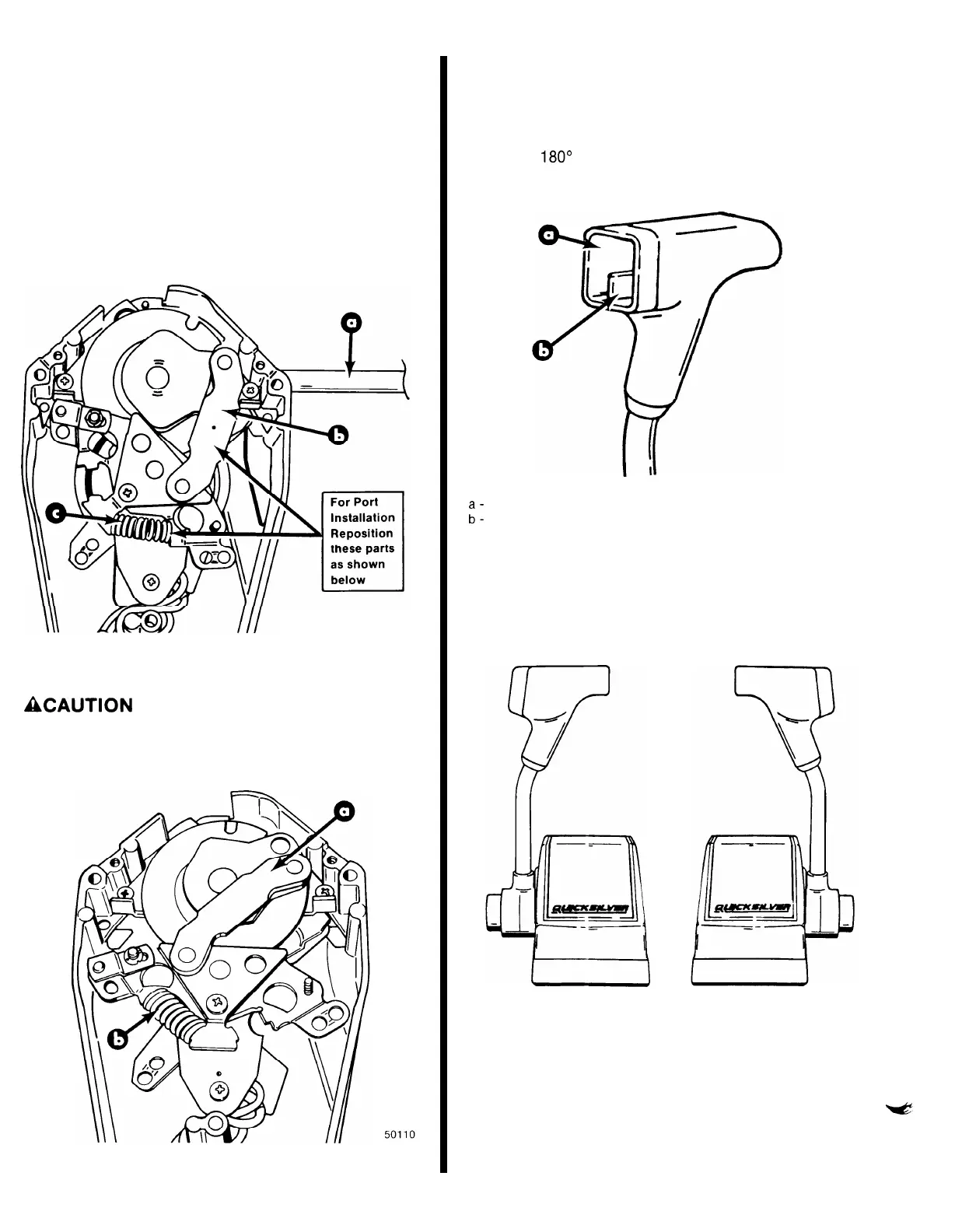

Remote Control Alteration
for Port Installation
Throttle link and throttle spring must be changed when
control handle will be positioned on the right side of
remote control.
1. Remove remote control module back cover.
2. Move control handle to position shown.
3. Reposition throttle link and spring to position
shown.
50109
a
-
Control Handle
b
-
Throttle Link
c
-
Spring
ACAUTION
Spring is under pressure and may eject suddenly.
4. Reinstall back cover with 2 screws. Torque screws
to 60 lb. in. (7
N.m).
a
-
Throttle
Link
b
-
Spring
Control Handle
Repositioning Control Handle Trim Switch for port
control installation.
1. Pry bezel from handle, pull trim switch out, turn
switch
180”
and install back into handle.
a-
Bezel
b-
Trim Switch
2.
Discard bezel removed and install new bezel
(from
parts bag).
Starboard Control
Mounting
24906
Port Control
Mounting
24962
25023
-6-
