Quicksilver 88688A26 - Starboard Side Control Module Cable Installation; Throttle Cable

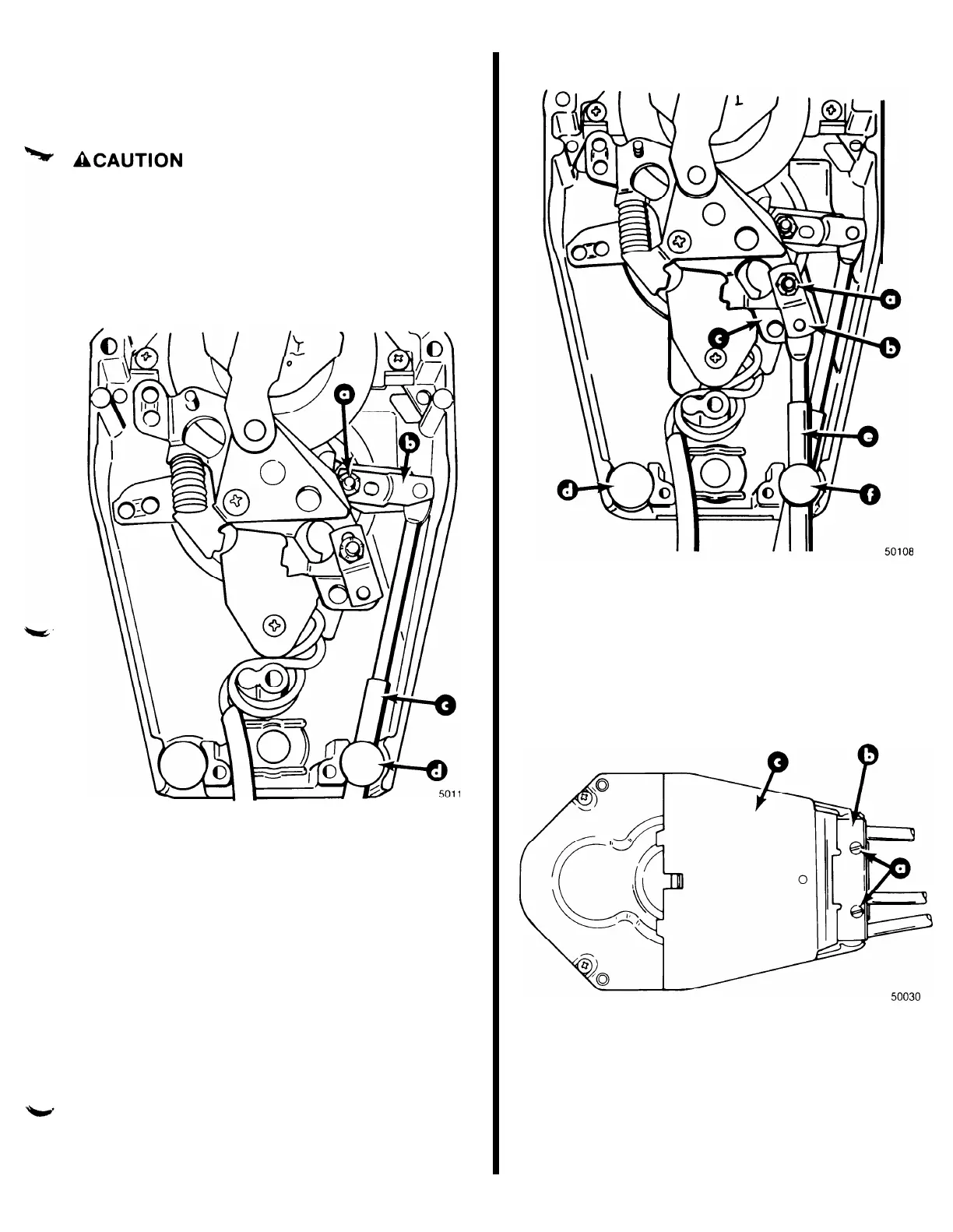

Starboard Side Control
Module Cable Installation
(250 hp 3.4 Litre Outboard and Above)
ACAUTION
Before tightening cable fastener locknut, be sure that
pin on end of cable fastener is completely thru cable
end and shift/throttle lever. A pin, that is partially thru
cable and lever, may cause fastener to bend when
locknut
Shift
c
Q
is tightened.
Cable
IO
a - Cable Fastener Locknut
b
- Cable Fastener
c
- Shift Cable
d
- Cable Anchor Barrel
IMPORTANT: Cable fastener (b) must be relocated to
position as shown.
Torque shift cable fastener locknut to 20 to 25 lb. in.
(2.3 to 2.8 N.m).
Throttle Cable
a - Cable Fastener Locknut
b - Cable Fastener
c
- Throttle Lever
d
- Spacer (From Parts Bag)
e
- Throttle Cable
f
- Cable Anchor Barrel
Torque throttle cable fastener locknut to 20 to 25 Ibs
in. (2.3 to 2.8 N.m.)
a - Screws
b
- Cable Retainer
c
- Access Cover
Position access cover and cable retainer onto back
side of control and secure both to control with 2
screws. Torque access cover and cable retainer screws
to 60 Ibs. in. (7 N.m.)
-5
