Port Side Control
Module Cable Installation
(All Models except 250 hp Outboard
and Above)
ACAUTION
Before tightening cable fastener locknut, be sure that
pin on end of cable fastener is completely thru cable
end and shift/throttle lever. A pin, that is partially thru
cable and lever, may cause cable fastener to bend
when nut is tightened.

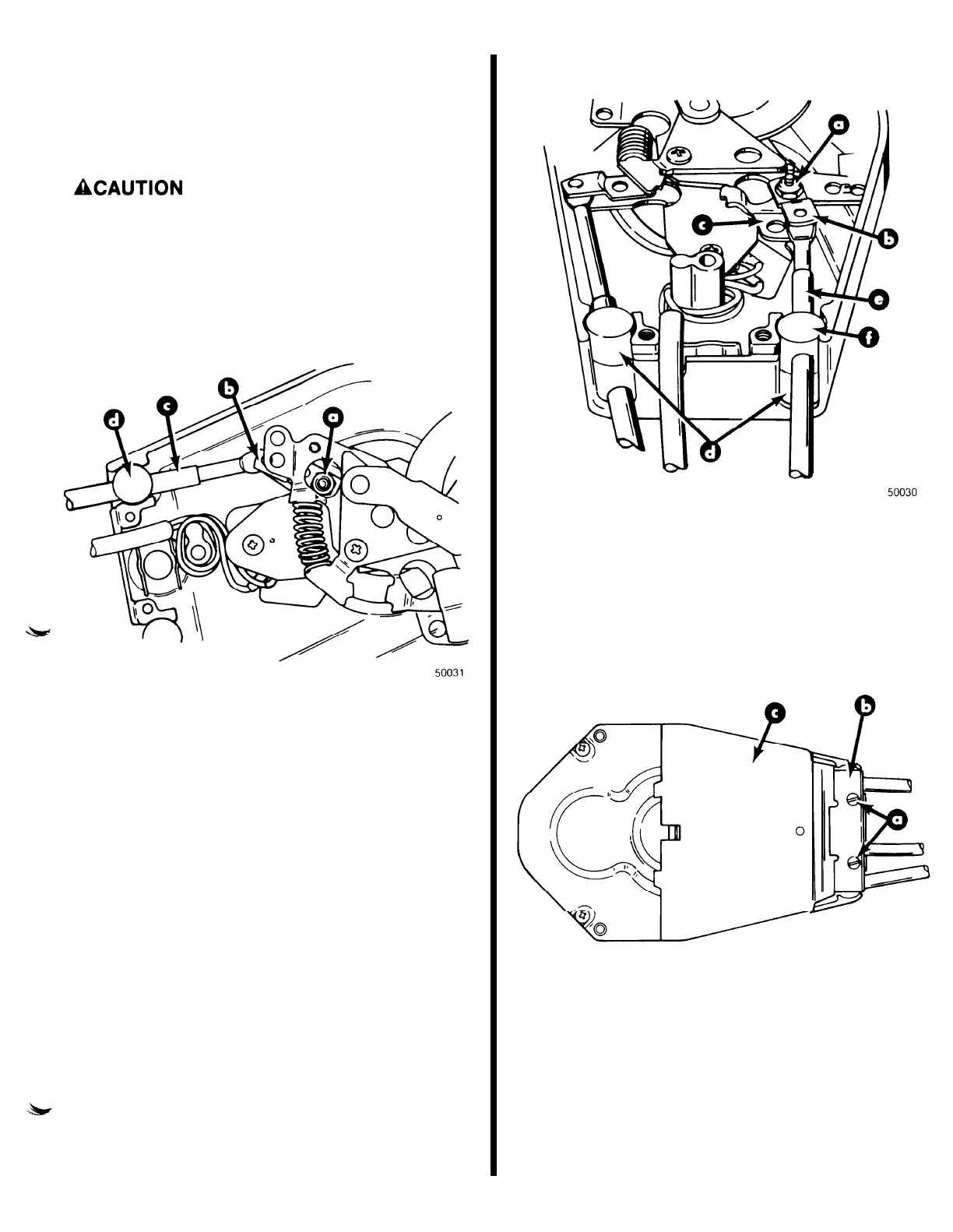

Shift Cable
a
-
Cable Fastener Locknut
b
-
Cable Fastener
c
-
Shift Cable
d
-
Cable Anchor Barrel
Torque shift cable fastener locknut to 20-25 Ibs. in. (2.3
to 2.8 N.m.)
Throttle Cable
a
-
Cable Fastener Locknut
b
-
Cable Fastener
c
-
Throttle Lever
d
-
Spacer (From Parts Bag)
e
-
Throttle Cable
f
-
Cable Anchor Barrel
Torque throttle cable fastener locknut to 20 to 25 Ibs.
in. (2.3 to 2.8 N.m.)
50030
a
-
Screws
b
-
Cable Retainer
c
-
Access Cover
Position access cover and cable retainer onto back
side of control and secure both to control with 2
screws.
Torque access cover and cable retainer screws
to 60 Ibs. in. (7 N.m.)
To Next Page
