Port Side Control
Module Cable Installation
(250
hp Outboard and Above)
The control cables in the starboard side module are
installed differently than those in the port side module,
therefore, the back cover of each control has been
stamped “PORT” or “STBD.”
ACAUTION
Before tightening cable fastener locknut, be sure that
pin on end of cable fastener is completely thru cable
end and shift/throttle lever. A pin, that is partially thru
cable and lever, may cause fastener to bend when
locknut is tightened.

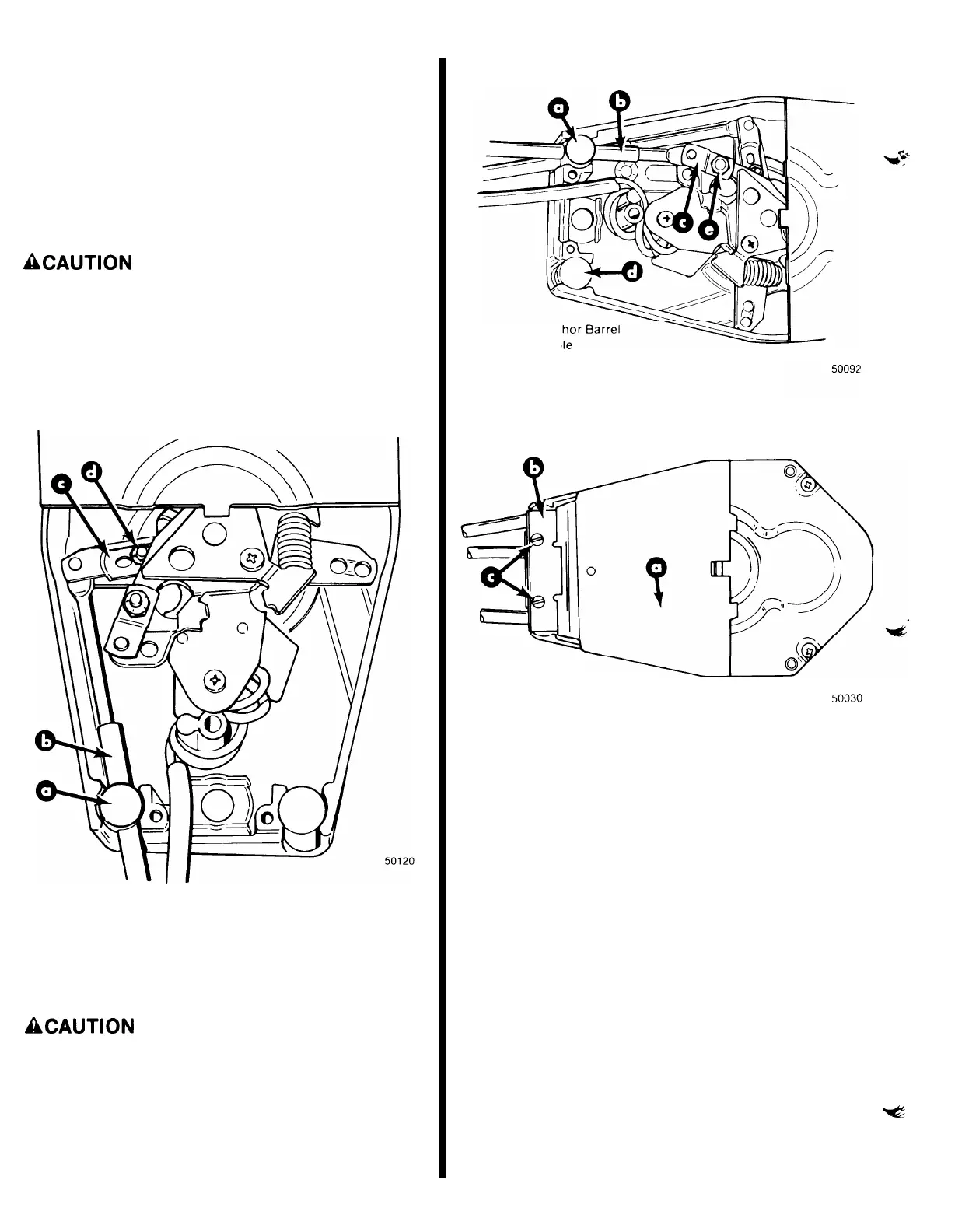

Shift Cable
a
-
Shift Anchor Barrel
b
-
Shift Cable
c
-
Cable Fastener
d
-
Cable Fastener Locknut
IMPORTANT: Cable fastener (b) must be relocated to
position as shown.
ACAUTION
Before tightening cable fastener locknut, be sure that
pin (on end of cable fastener) is completely thru cable
end and shift lever. A pin, which is partially thru cable
and shift lever, may cause fastener to bend when lock-
nut is tightened.
Torque shift cable fastener locknut to 20 to 25 lb. in.
(2.3
to
2.8
N.m).
8-
Throttle Cable
a
-
Throttle
Anc
b
-
Throttle Cab
c
-
Cable Fastener
d
-
Spacers (From Parts Bag)
e
-
Cable Fastener Locknut
Torque throttle cable fastener locknut to 20 to 25 Ibs.
in.
(2.3
to
2.8
N.m.)
a
-
Access Cover
b
-
Cable Retainer
c
-
Screws
Position access
cover and cable retainer onto back
side of controland secure both to control with 2
screws. Torque access cover and cable retainer screws
to 60 Ibs. in. (7 N.m.)
