Reference Designation Function
4 Alarm button The alarm button can be tapped to show the
current alarms. If an alarm occurs, the icon
on the button will be red.
5 Service button The service button can be tapped to show
the service information.
6 Status This icon shows the current status of the unit.
7 Page indicator Indicates which page you currently see. The
middle indication is the main screen, left is
the menu screen and at the right the quick
access screen.
Swipe left or right to go to another screen.
8, 9, 10, 11 These fields can contain a history chart, an
input or a counter value, depending on the
type of the machine.
Tap the field to view the type of
measurement. This will be shown in the
screen information bar.
Examples of inputs:
• Ambient temp
• Outlet
Examples of counters:
• Running hours
• Load relay
• Loaded hours
12 Menu button The menu button is always shown and can
be tapped to go to the menu.
3.5 Quick access screen
Function
The screen is used to directly access some frequently used functions.
Procedure
The Quick access screen can be viewed by swiping left, starting from the main screen.
Description
Instruction book
9829 3199 74 27

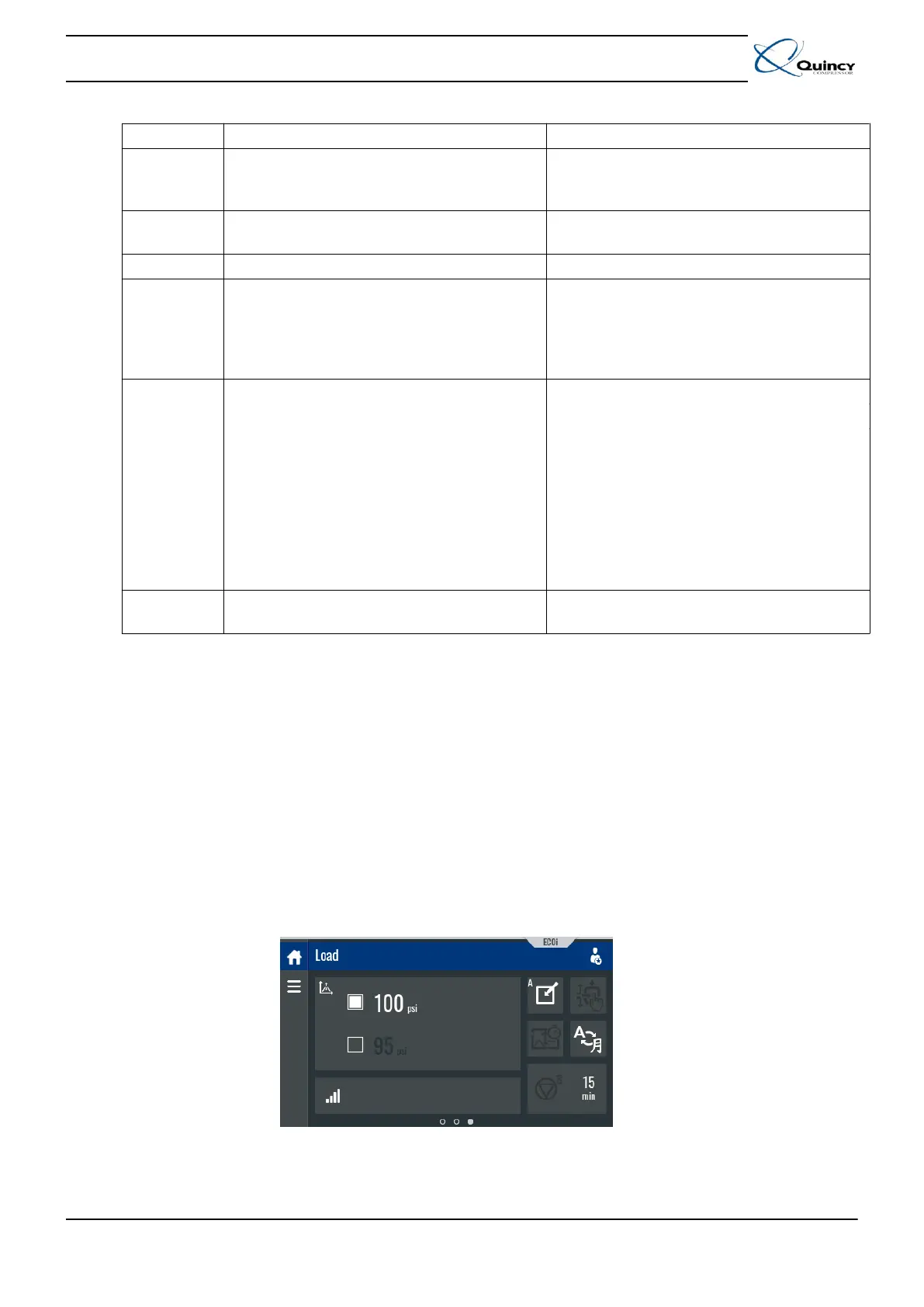

Figure 4: Quick access screen
Through this screen, several important settings can be viewed and modified.
