VESTS & BELTS

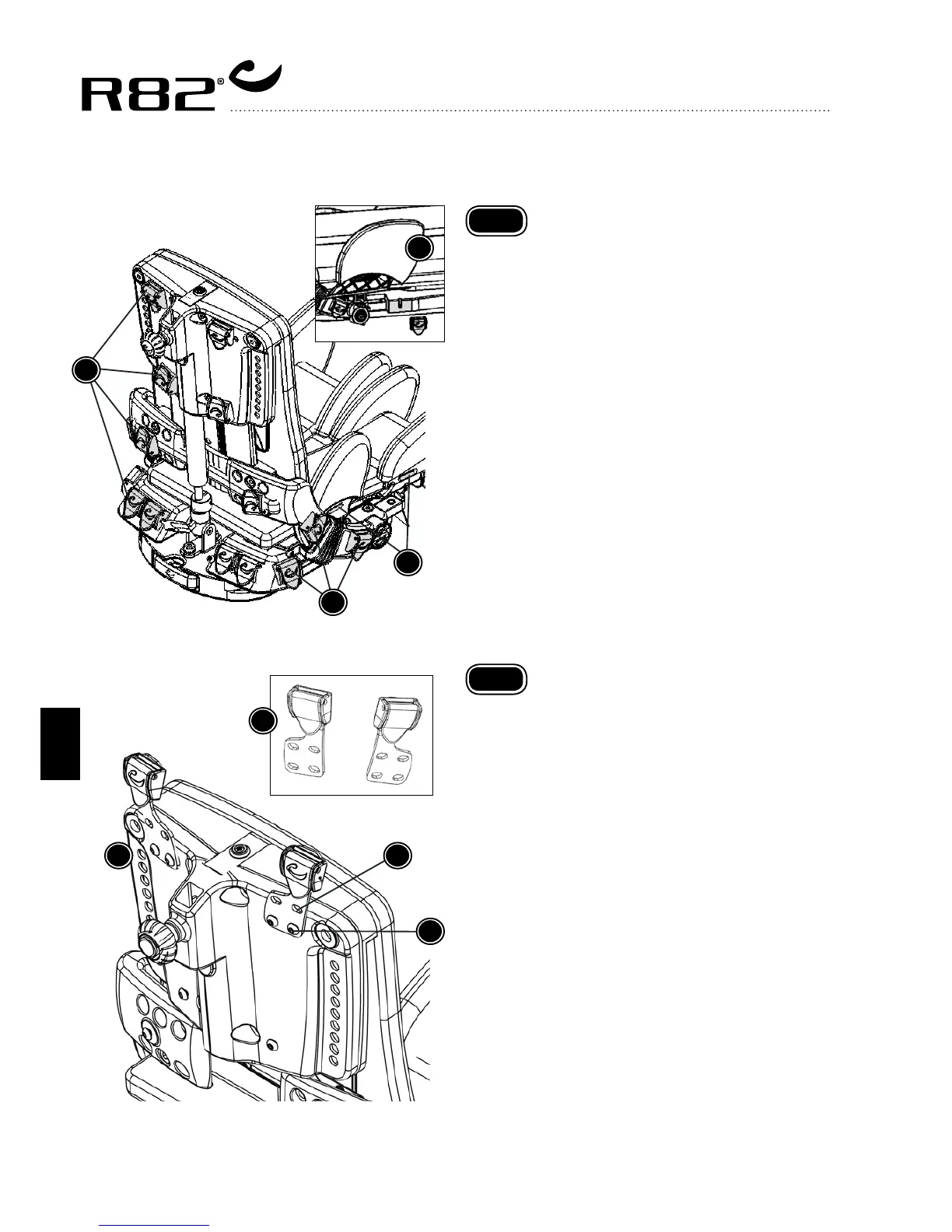

All vests and belts with 25 mm strap can be
mounted on the seat. We recommend to use the
fixlocks or belt guidances on the chair.
Fixlocks:
Use the fixlock (A) mounted on the chair to fa-
sten and adjust all vests and belts. An extra 40
mm fixlock can be mounted on the size 4 seat
if needed (B).
Belt guidance:
Guide the beltstraps through the prepared slots
(C) in the seat.
FIXLOCK FITTINGS
To mount vests and belts the correct way, it might
be necessary to mount extra fixlock fittings. The
fittings are mounted on the top of the back and
are able to lift the straps away from the shoulders
of the user.
* Mount the fittings in the lower holes (A) to get
a higher mounting of the straps.
* Mount the fittings in the top holes (B) to get a
lower mounting of the straps.
* Mount the fittings as shown on drawing (C)
to get a larger distance between the fittings.
* Mount the fittings as shown on drawing (D) to
get a smaller distance between the fittings.
