GROWTH FROM
ONE SIZE TO
ANOTHER - WIDTH
ADJUSTMENT
Follow this description to perform a smooth
adjustment of the seat width. Also read the in-
structions on the next page concerning depth
adjustment.

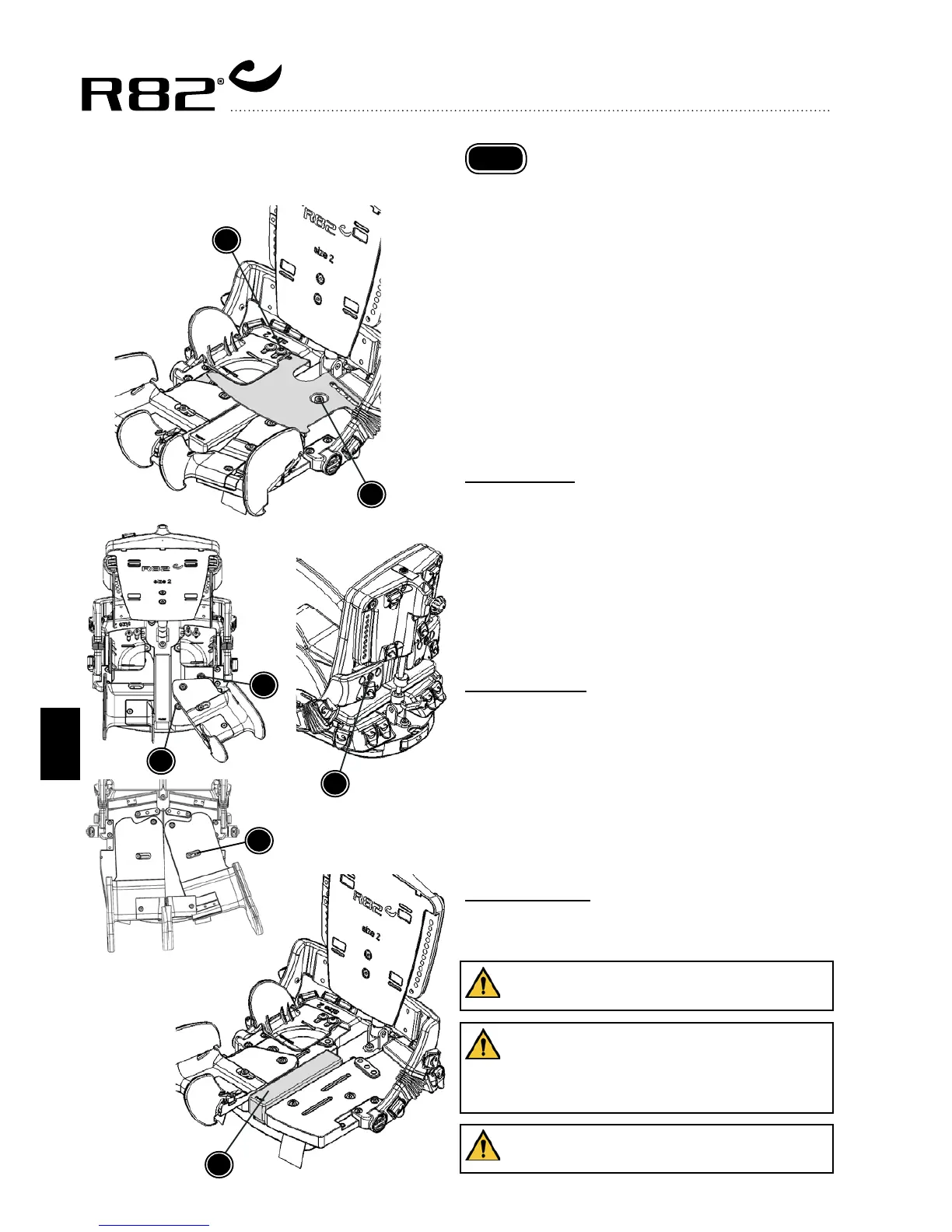

Dismount the hip supports (A) at both sides.
Dismount the metalplate (B). Remove the 4 bolts
(C) and swing away the back.
Left chair side:
Pull the leg support forward but do not remove
any bolts not described.
Remove the bolt (D).
Remove the bolt (E).
Remount at the desired width position and re-
place the bolts (D) and (E). Do not fasten the
bolts completely.
Right chair side:
Remove the bolts (D) and (E) at the opposite
side of the chair.
Place the seat spacer (F).
Remount at the same width position as the op-
posite side and replace the bolts (D) and (E).
Remount the bolts (C).
Both chair sides:
Fasten all bolts (C) (D) and (E) at both sides of
the seat.
Do not loosen or remove any bolts not
described above.
To prevent at mix up of bolts, we re-
commend to keep the removed bolts
together with the removed part, e.g.
the hip supports.
The carer should check and tighten all
bolts at least every month.
