LU160™ INSTALLATION
RAB Lighting is committed to creating high-quality, aordable, well-designed and energy-ecient LED lighting and controls that make it easy for electricians to install
and end users to save energy. We’d love to hear your comments. Please call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
OPERATION

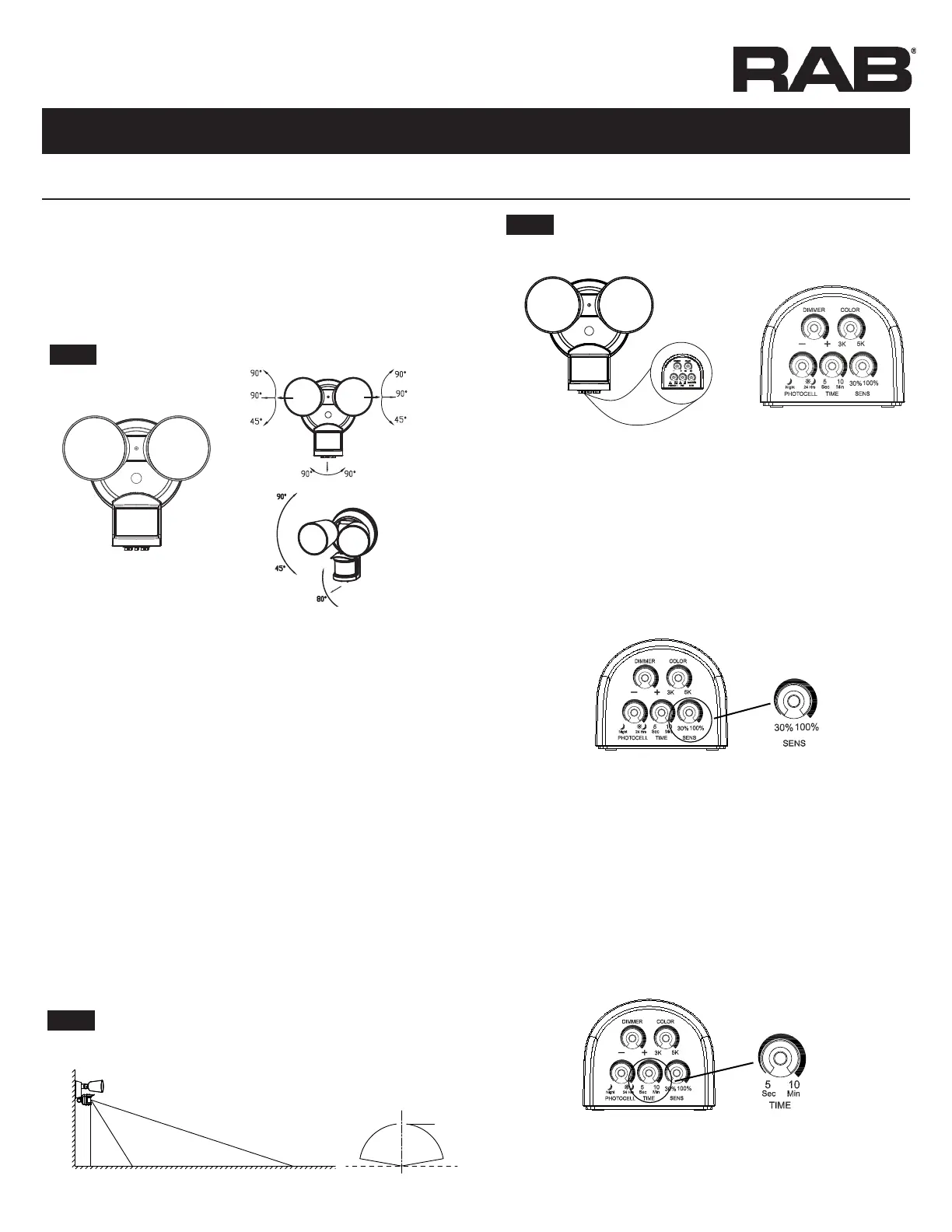

Step 1: Adjusting the Lamp Heads and Sensor.
head left and right or up and down to get the desired lamp
Note: LED LAMPS ARE NON-REPLACEABLE. Do not attempt to
access or maintain the LEDs; they are non-replaceable and any
contact may damage the LEDs and will void the warranty.
Fig: 8
Step 2: Adjusting the Detector.
After installing your motion activated light, you are ready to
Adjust the sensor head up or down for longer or shorter
1m / 3.2 ft
15m / 50 ft
1m / 3.2 ft
2m / 6.5 ft
3m / 9.8 ft
160°
15m / 50 ft
Fig: 10
Sensor Detection Range (SENS) Switch.
Adjust the SENS setting to adjust range of Passive lnfrared
Slide the “SENS” switch toward the 30%low) position for
Slide the “SENS” switch toward the 100%high) position for
Stepless dimming
Stepless dimming
Stepless dimming
Time Setting.
Adjust the timer for how long the Security Floodlight will be
Set the “TIME” switch to the 5 sec position is 5 seconds,
switch to the 10 min
It will automatically turn off when motion is no longer sensed and
Stepless dimming
Default settings:
•
•
• LUX: Night only
• Time: 1 Min
•
