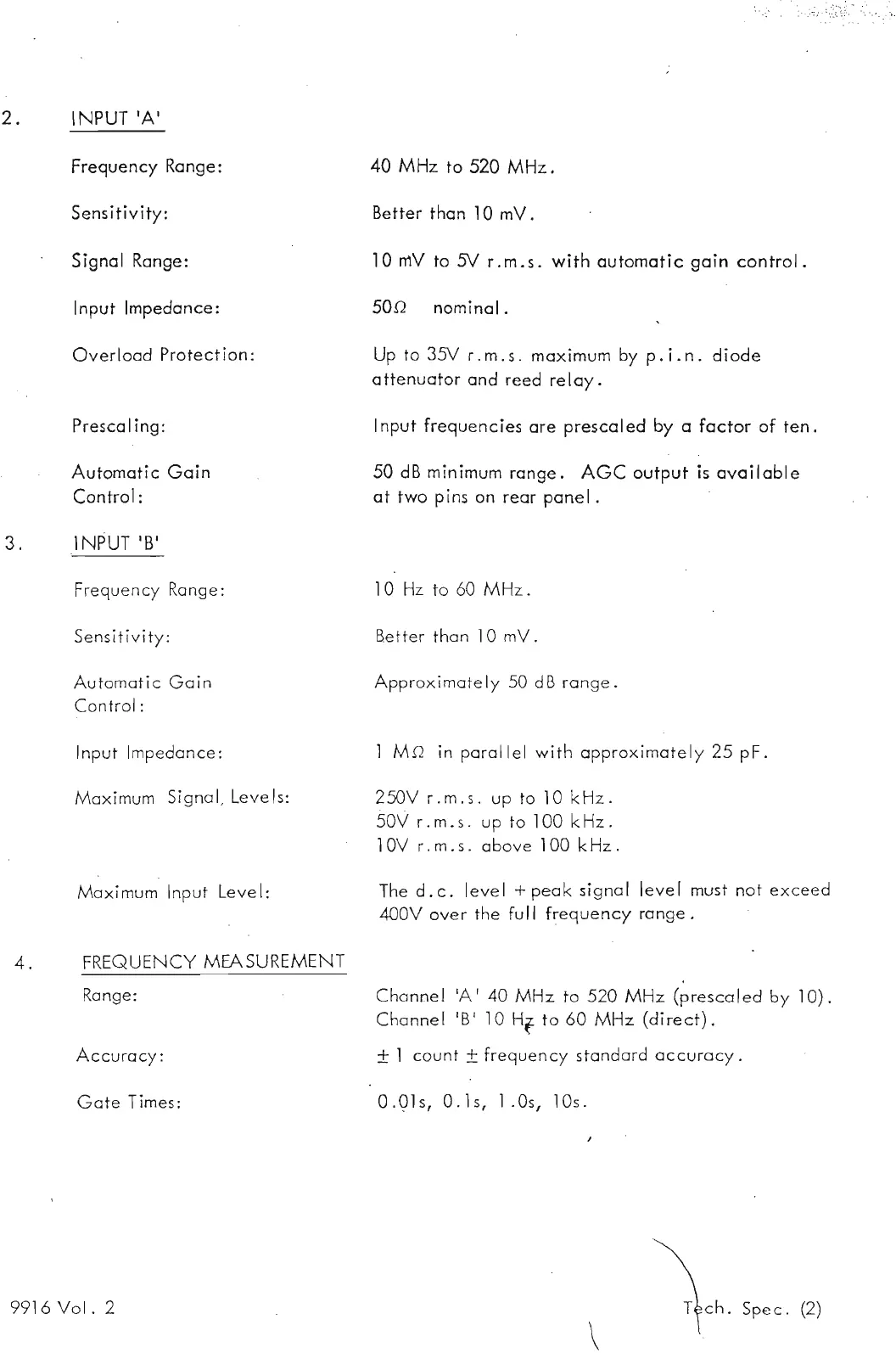

2. INPUT IAI
Frequency Range:
S ens it iv i ty:
40 MHz to 520 MHz.
Better than 10 mV.
..... -: ..
Signal Range:
Input Impedance:
Overload Protection:
Prescaling:
Automatic Gain
Control:
3. INPUT IB'
Frequency Range:
Sensitivity:
Automatic Gain
Control:
Input Impedance:
Maximum Signal, Levels:
Maximum Input Level:
4. FREQUENCY MEASUREMENT
Range:
Accuracy:
Gate Times:
10 nW to 5V r.m.s. with automatic gain control.
50.0 nominal.
Up to 35V r. m. s. maximum by p. i . n. diode
attenuator and reed relay.
I nput frequencies are prescal ed by a factor of ten.
50 dB minimum range. AGe output is available
at two pins on rear panel.
10Hz to 60 MHz.
Better than 10 mV.
Approximately 50 dB range.
1 MD in parallel with approximately 25 pF.
250V r.m.s. up to 10 kHz.
SOV r. m. s. up to 100 k Hz.
10V r.m.s. above 100 kHz.
The d.c. level + peak signal level must not exceed
400V over the full frequency range.
Channel "A I 40 MHz to 520 MHz (prescaled by 10).
Channel 'B' 10 H~ to 60 MHz (direct).
± 1 count ± frequency standard accuracy.
0.91s, O.ls, 1.0s, 105.
9916 Vol. 2
\
~Ch. Spec. (2)
