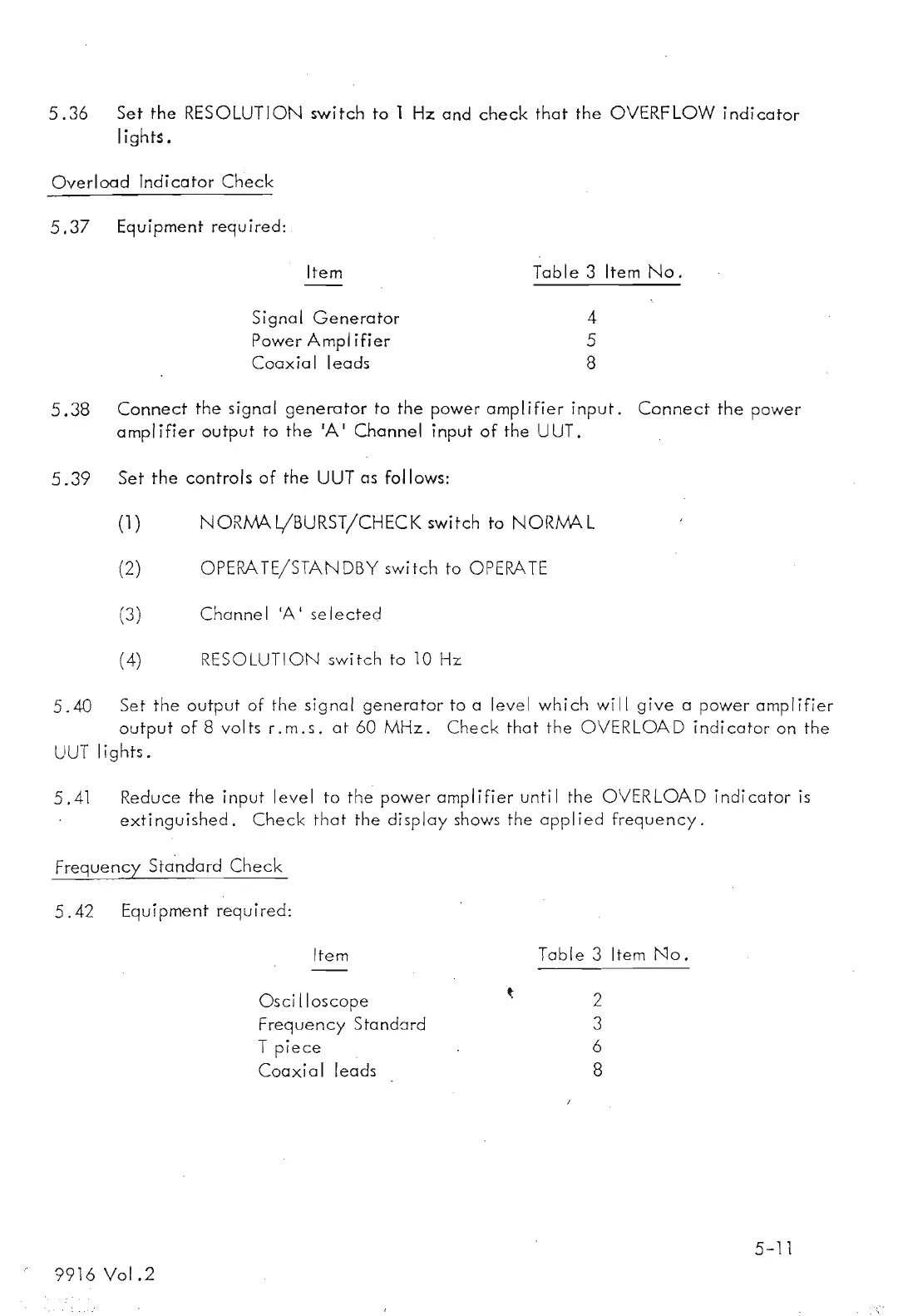

5.36
Set
the
RESOLUTION
switch
to
1 Hz
and
check
that
the
OVERFLOW
indicator
lights.
Overload
Indicator
Check
5.37
Equipment
required:
Item
Signal
Generator
Power
Ampl
ifier
Coaxial
leads
Table
3 Item
No.
4
5
8
5.38
Connect
the
signal
generator
to
the
power
amplifier
input.
Connect
the
power
amplifier
output
to
the
'A'
Channel
input
of
the
UUT.
5.39
Set
the
controls
of
the
UUT
as
follows:
(1)
NOR!v\A
l/BURST/CHECK
switch
to NOR!v\A L
(2) OPERA
TE/STANDBY
switch
to
OPERATE
(3)
Channel
'A'
selected
(4) RESOLUTION
switch
to
10
Hz
5.40
Set
the
output
of
the
signal
generator
to
a
level
which
will
give
a
power
amplifier
output
of
8
volts
r.m.s.
at
60 MHz.
Check
that
the
OVERLOAD
indicator
on
the
UUT
lights.
5.41
Reduce
the
input
level
to
the
power
amplifier
until
the
OVERLOAD
indicator
is
exti
nguished.
Check
that
the
display
shows
the
appl
ied
frequency.
Frequency
Sta"ndard
Check
5.42
Equipment
required:
Item
Osci
[Ioscope
Frequency
Standard
T
piece
Coaxial
leads
Table
3 Item
No.
t;
2
3
6
8
5-11
