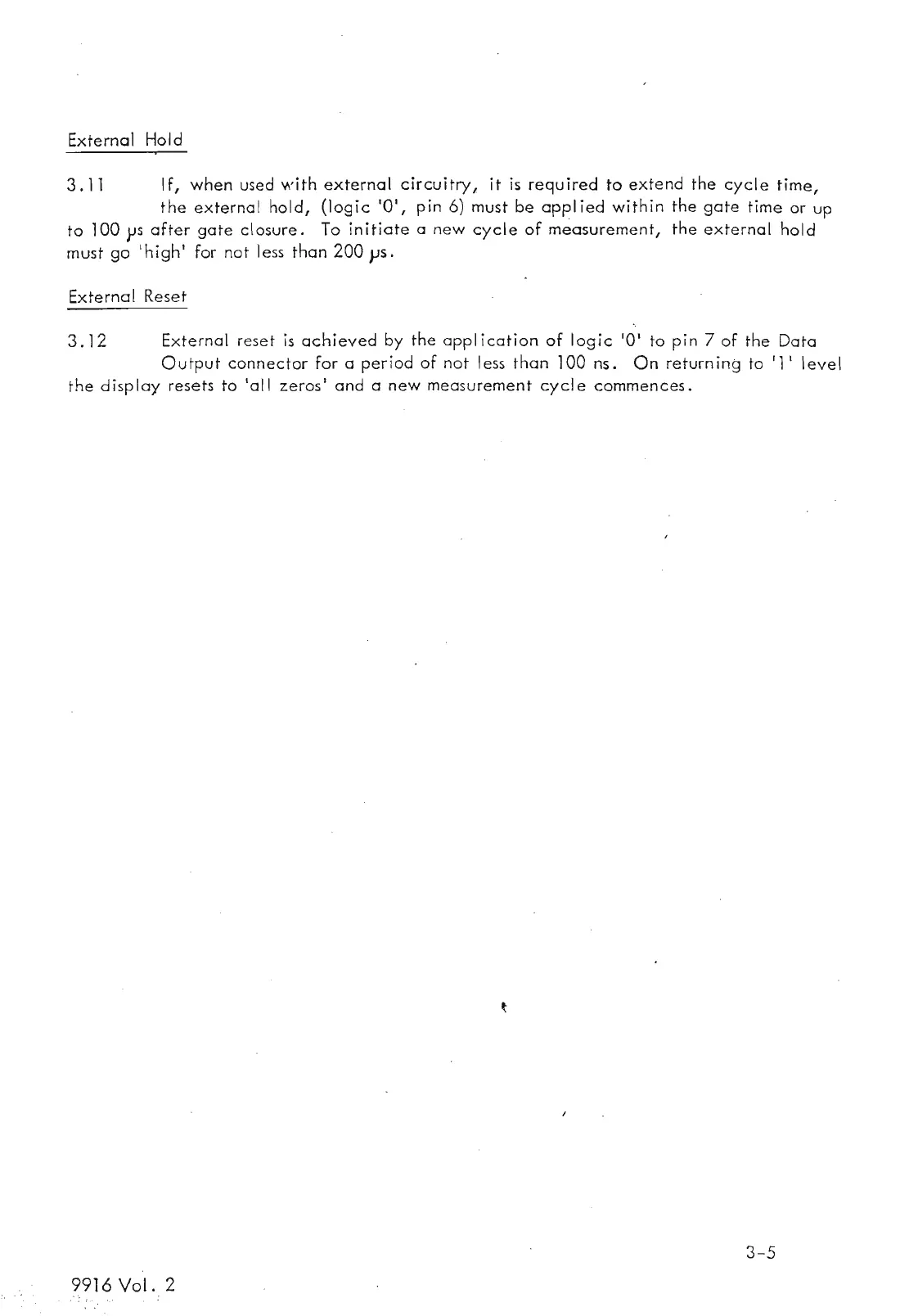

External Hold
3.11
If,
when
used
with
external
circuitry,
it
is
required
to
extend
the
cycle
time,
the
external
hold,
(logic
'0',
pin 6) must
be
applied
within
the
gate
time
or up
to
100
}Is
after
gate
closure.
To
initiate
a
new
cycle
of
measurement,
the
external
hold
must go
'high'
for not less
than
200
ys.
External
Reset
3.12
External
reset
is
achieved
by
the
appl
ication
of
logic
'0'
to pin 7
of
the
Data
Output
connector
for a
period
of
not
less
than
100
ns.
On
returning
to
'1'
level
the
display
resets
to
'all
zeros'
and
a
new
measurement
cycle
commences.
3-5
9916 Vol. 2
