rada V12 - Flow Rates; Low Pressure Systems Analysis

11
1145094-W2-D
Flow Rates

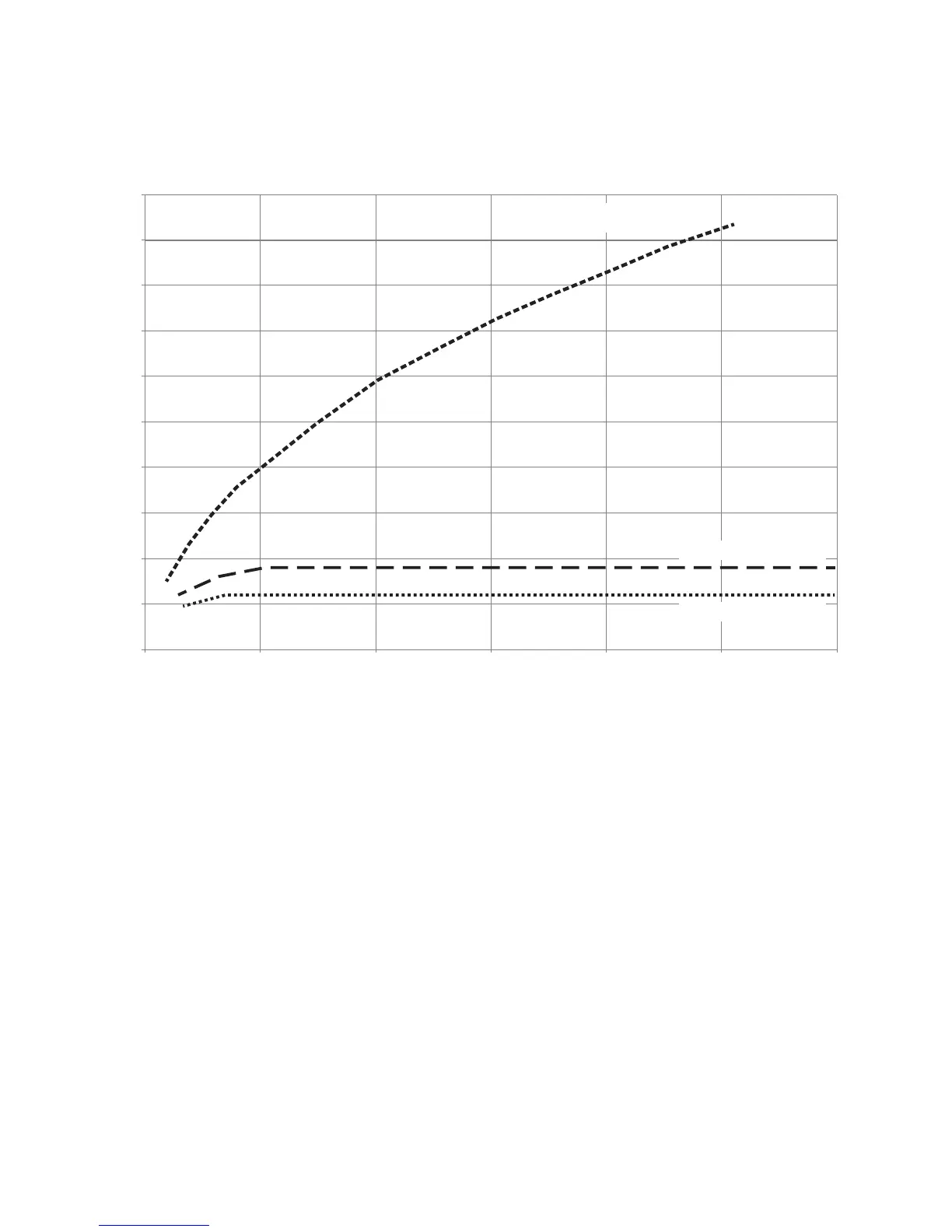

Typical Flow Rates on Low Pressure Systems (0.1 Bar to 1 Bar) - Rada V12 Shower
Valve only:
*Note! Pressure Loss = Inlet pressure - outlet pressure (measured at valve outlet)
0
5
10
15
20
25
30
35
40
45
50
0.00.5 1.01.5 2.02.5 3.0
Outlet Flow (l/min)
Pressure Loss (bar) *
V12 mixer only
( no flow regulators)
with 6 l/min flow regulator
with 9 l/min flow regulator
