rada V12 - Spare Parts: Rada V12 Exposed Shower Valve

33
1145094-W2-D

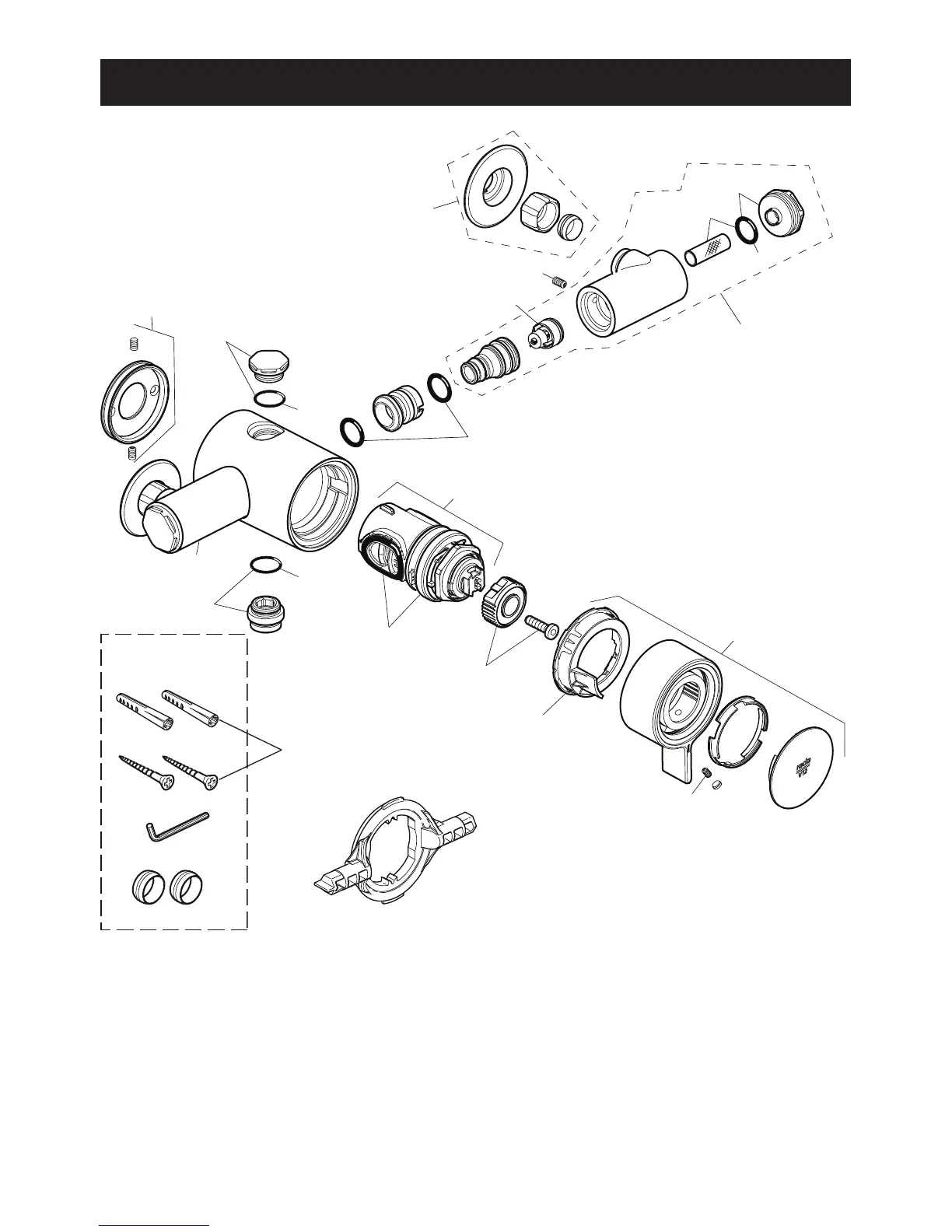

SPARE PARTS
147.48 Check Valve (x 2)
1595.231 ‘O’ Key
1651.113 Backplate
1651.121 Component Pack
1651.133 Control Lever Assy
1651.137 Flow Regulator
(6 and 9 l/min)
1651.140 Hub
1651.141 Insutech Hot Inlet Assy
1595.231
1656.121
B
Rada V12 Exposed Shower Valve
1651.142 Insutech Cold Inlet Assy
1651.144 Inlet Connector Pack
1651.145 Screw Pack (identied ‘B’)
1651.146 Outlet Plug
1651.147 Seal Pack (identied ‘A’)
1651.148 Elbow Cap
1651.149 Cartridge Assembly
1656.115 Outlet Connector Pack
1656.118 Bearing
1651.143 Filter Pack (x 2)
1651.140
1651.133
1651.118
1651.149
A
B
1656.113
1651.146
A
A
1656.115
A
A
1651.148
1651.143
1651.141
1651.142
1651.144
B
147.48 (x2)
