Rear Entry Supplies Rising or Falling Supplies
Securing Brackets
(Mounting on Front
Face of Wall)
Mounting using
Rear Fixing Points
Installation Methods
Securing Brackets
(Mounting on Rear
Face of Wall)

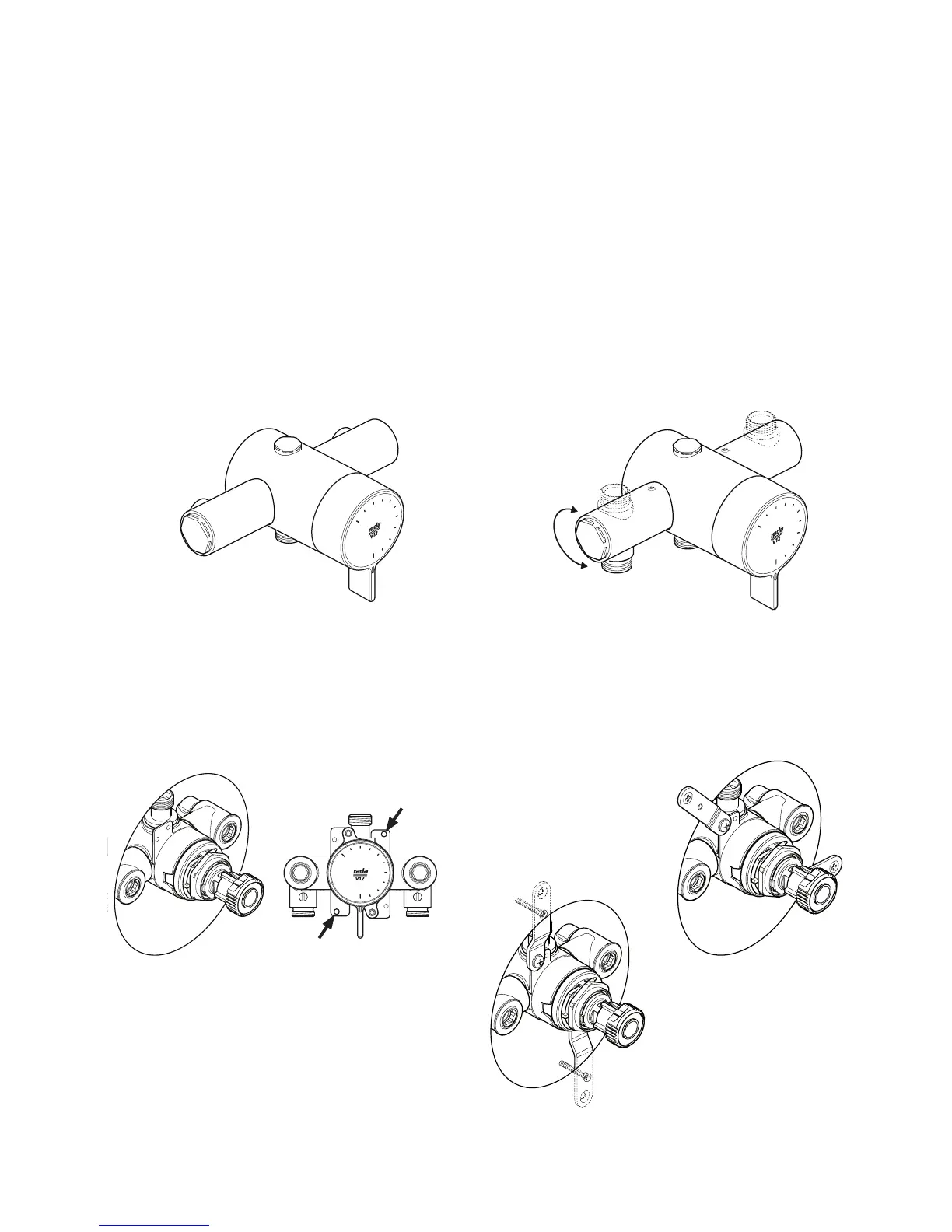

The Rada V12 Exposed Shower Valve can be installed with rear, rising or falling
supply inlets, top or bottom outlet.
The Concealed V12 Mixer can be installed with rising or falling supply inlets (rising
inlets are illustrated) and top or bottom outlet. The Mixer can be installed using Rear
Fixing Points on the Body, or by using the Securing Brackets (supplied) on the
Front Face of a Solid Wall or Stud Partition, or on the Rear Face of a Laminated
Panel.
The hot water supply must always be connected to the hot inlet (marked with
a red sticker) to ensure the correct operation of the ‘Insutech Technology’.
Note! This technology ensures that all outer surfaces are safe to touch.
The Rada V12 130 Centres Shower Valve can be installed with rear, rising or
falling supply inlets, top or bottom outlet. The shower valve is designed to t onto
exisiting installations where the pipe centres are 130 mm. The installation method
is exactly the same as the Rada V12 Exposed Shower Valve.
