7. Tighten the nut by turning the ‘O’ Key clockwise.
8. Ret the components in reverse order.
9. Before using the shower, refer to section: ‘Commissioning’.
COMMISSIONING

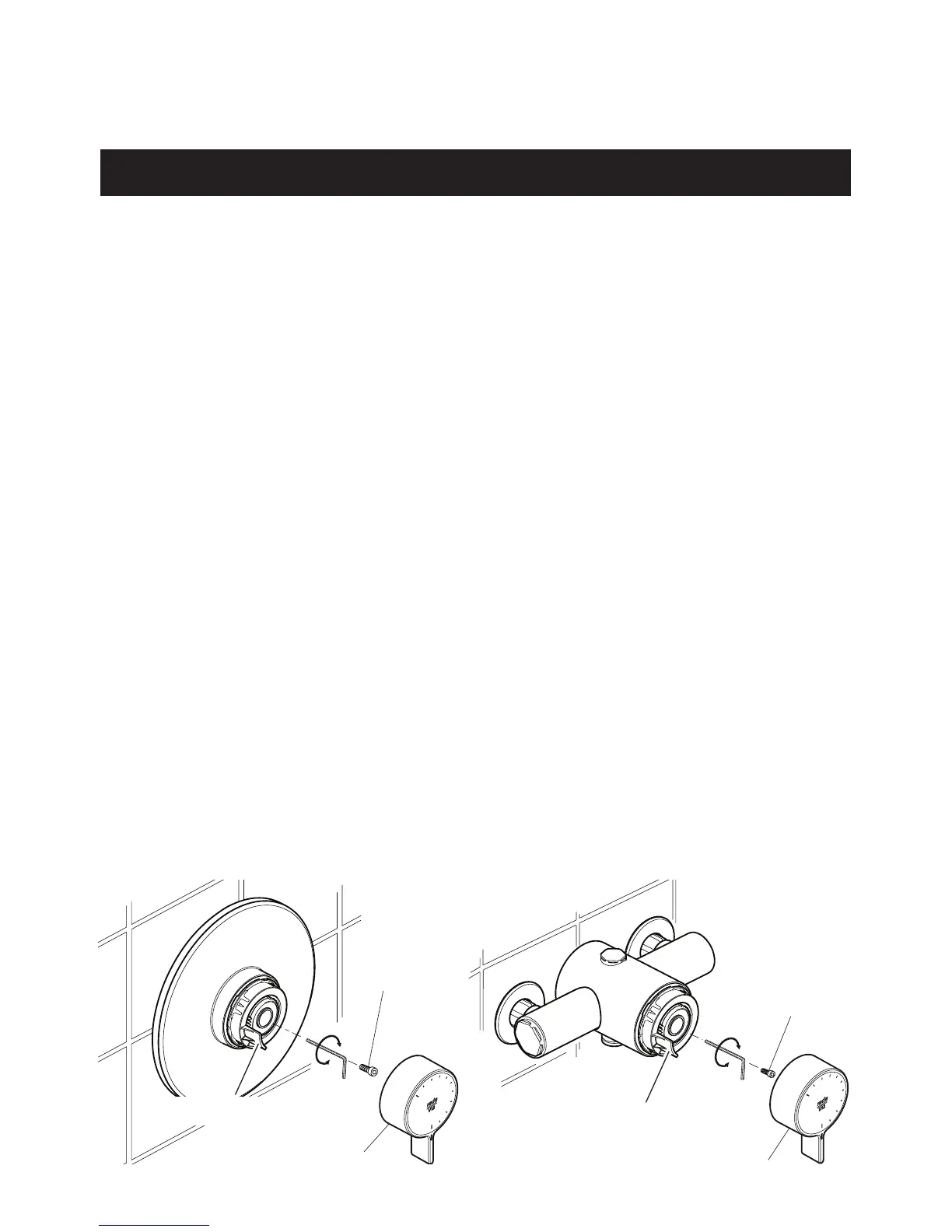

Hub Retaining
Screw
+
-
+
-
Hub Retaining
Screw
Control Lever
Control Lever
Maximum Temperature Setting
Before using the Shower the maximum temperature must be checked to make sure
that it is at a safe level. It has been preset to approximately 43°C at the factory but
due to variations in site conditions the maximum temperature may need adjustment.
Note! Make sure that the hot water temperature is at least 55°C and that there is
sufcient supply.
Note! For Type 3 valves in healthcare installations the maximum blend temperature
is determined by the application, refer to the TMV3 Requirements Manual.
1. Turn on the mixer to the maximum temperature (i.e. fully anticlockwise) and
allow the temperature to stabilise.
If the temperature is too hot or too cold adjust as follows:
2. Use the 2.5 mm hexagon key to slacken the grubscrew retaining the control
lever. Remove the control lever.
3. Unscrew the hub retaining screw.
4. Rotate the hexagon key until the required maximum temperature is obtained
at the shower. Anti-clockwise to increase the temperature, or clockwise to
decrease the temperature (¼ turn = approximately 1°C).
5. Once the desired maximum blend temperature has been achieved turn off the
Mixer.
6. Ret the hub retaining screw.
7. Locate the bearing with the lug in the 8 o’clock position.
8. Align the control lever at the 6 o’clock position and ret, securing with the
securing screw.
9. Check that the shower temperature is correct.
10. Fit the rubber plug to conceal the grubscrew.
Bearing Lug
Bearing Lug
