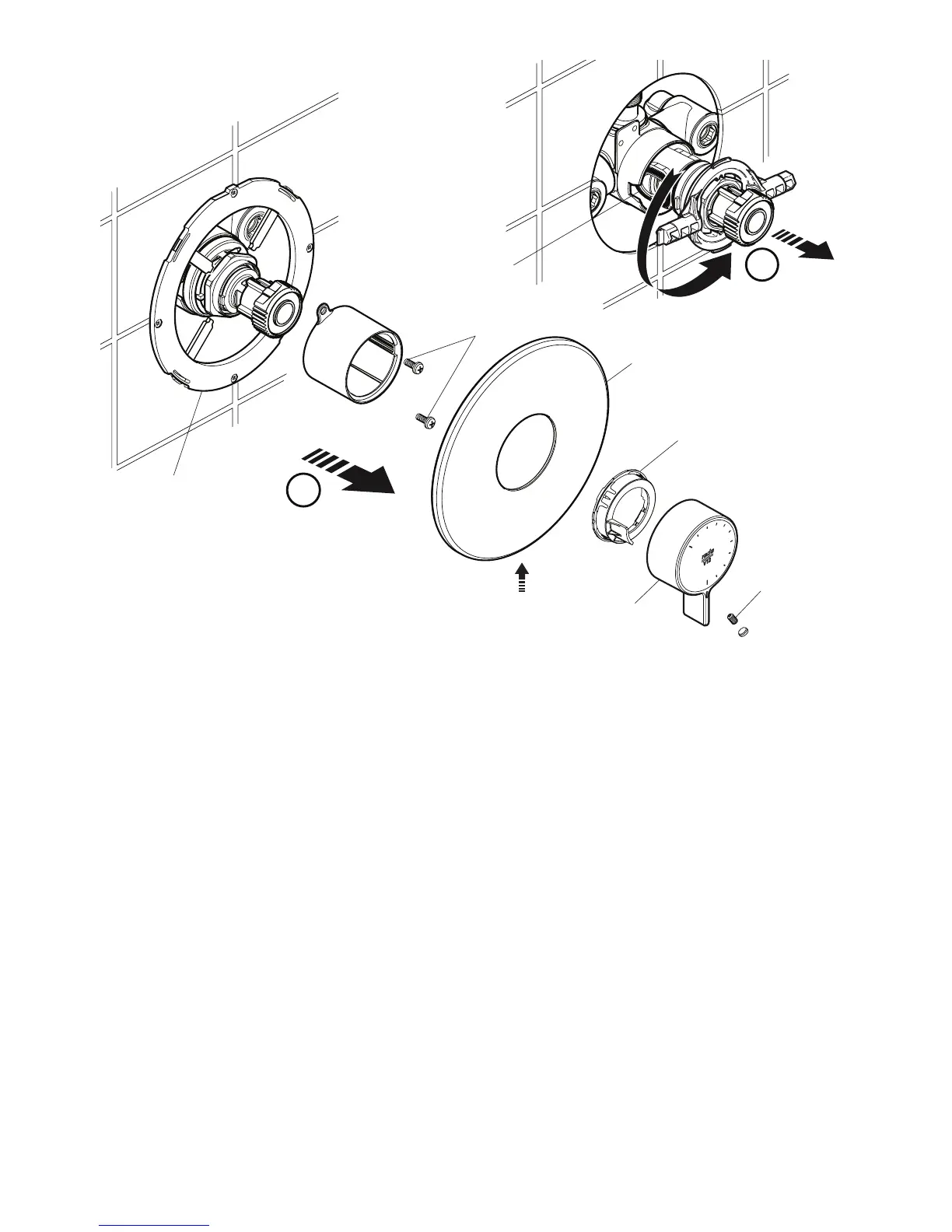

Rada V12 Concealed Shower Valve
The Rada V12 Concealed Shower Valve is supplied with inlet connections Hot
- Left, Cold - Right as standard. If the hot and cold water supply pipes have
been reversed during installation the thermostatic cartridge must be removed and
rotated 180°.
1. Isolate the hot and cold water supplies and operate the control lever to relieve
pressure and drain any residual water.
2. Use the 2.5 mm hexagon key (supplied) to remove the grubscrew, then remove
the control lever.
3. Carefully unclip the concealing plate from the backplate.
Note! Use a screwdriver in the cutout to assist separation.
Unscrew the two shroud screws and remove the backplate from the mixer.
4. Fit the ‘O’ Key (supplied) onto the cartridge nut and turn anticlockwise. Unscrew
fully and pull the cartridge from the mixer body.
5. Rotate the cartridge 180°.
6. Make sure that the two cartridge inlet seals are tted and carefully push into
the body, aligning the cartridge lugs into the body slots.
Note! Check that the cartridge lug stamped ‘H’ is aligned with the hot inlet
supply.
Important! Take care when tting the cartridge as damage to the cartridge inlet
seals may result in dripping from the shower head.
Grubscrew
