Rada V12 - 130 Centres Shower Valve
1651.133
1651.140
1651.149
1656.118
A
1656.115
1651.146
1656.113
A
1656.114
1656.117
1651.150
A
B
1651.148
1651.143
A
A
B

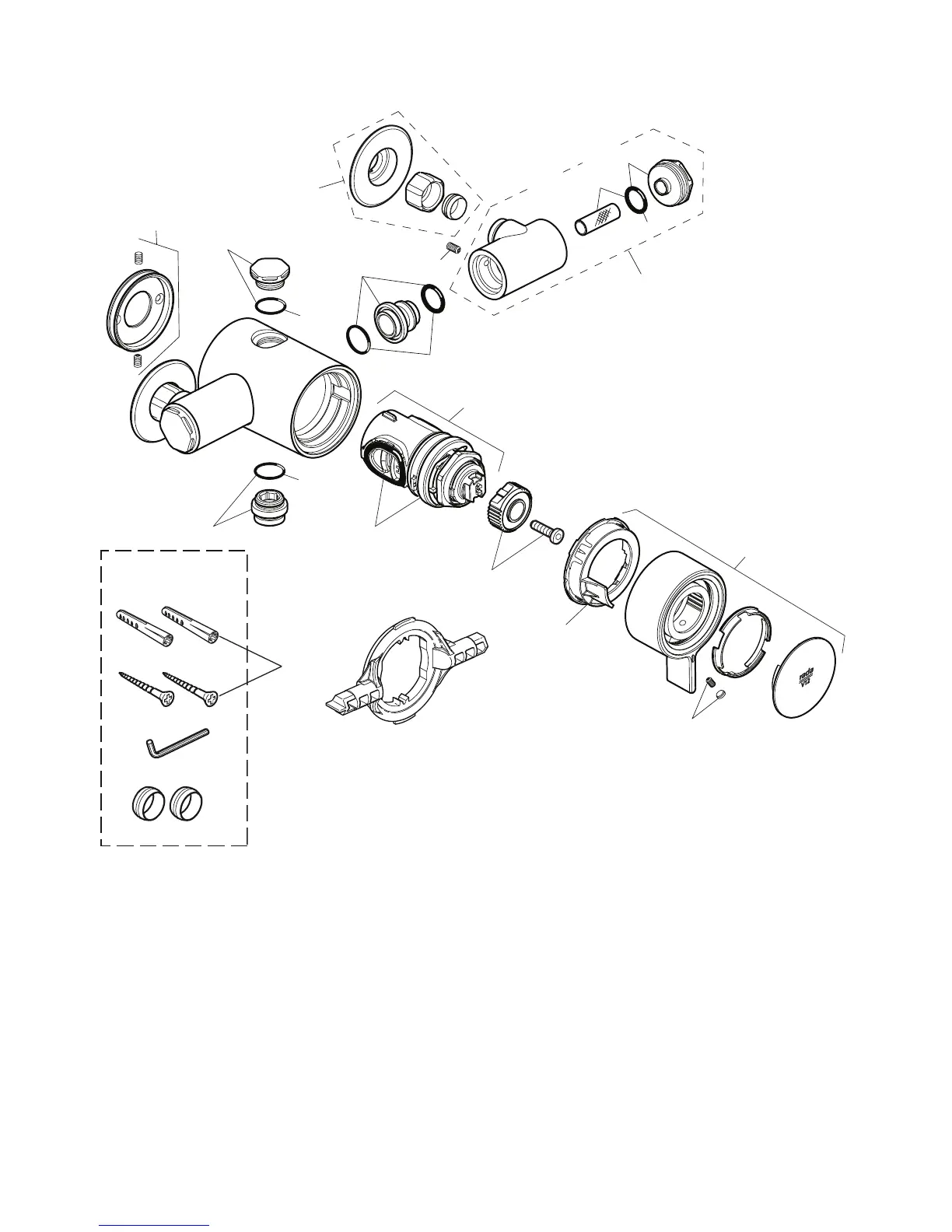

1595.231 ‘O’ Key
1651.121 Component Pack
1651.133 Control Lever Pack Assy
1651.137 Flow Regulators
(6 and 9 l/min)
1651.140 Hub
1651.143 Filter Pack (x 2)
1651.146 Outlet Plug
1651.147 Seal Pack (identied ‘A’)
1651.148 Elbow Cap
1595.231
1651.149 Cartridge Assembly
1651.150 Elbow Assembly
1656.113 Backplate
1656.114 Elbow Connector
1656.115 Outlet Connector Pack
1656.117 Inlet Connector Pack
1656.118 Bearing
1656.145 Screw Pack (identied ‘B’)
1656.121
B
