2. MAINTENANCE
SUPPORT CENTER

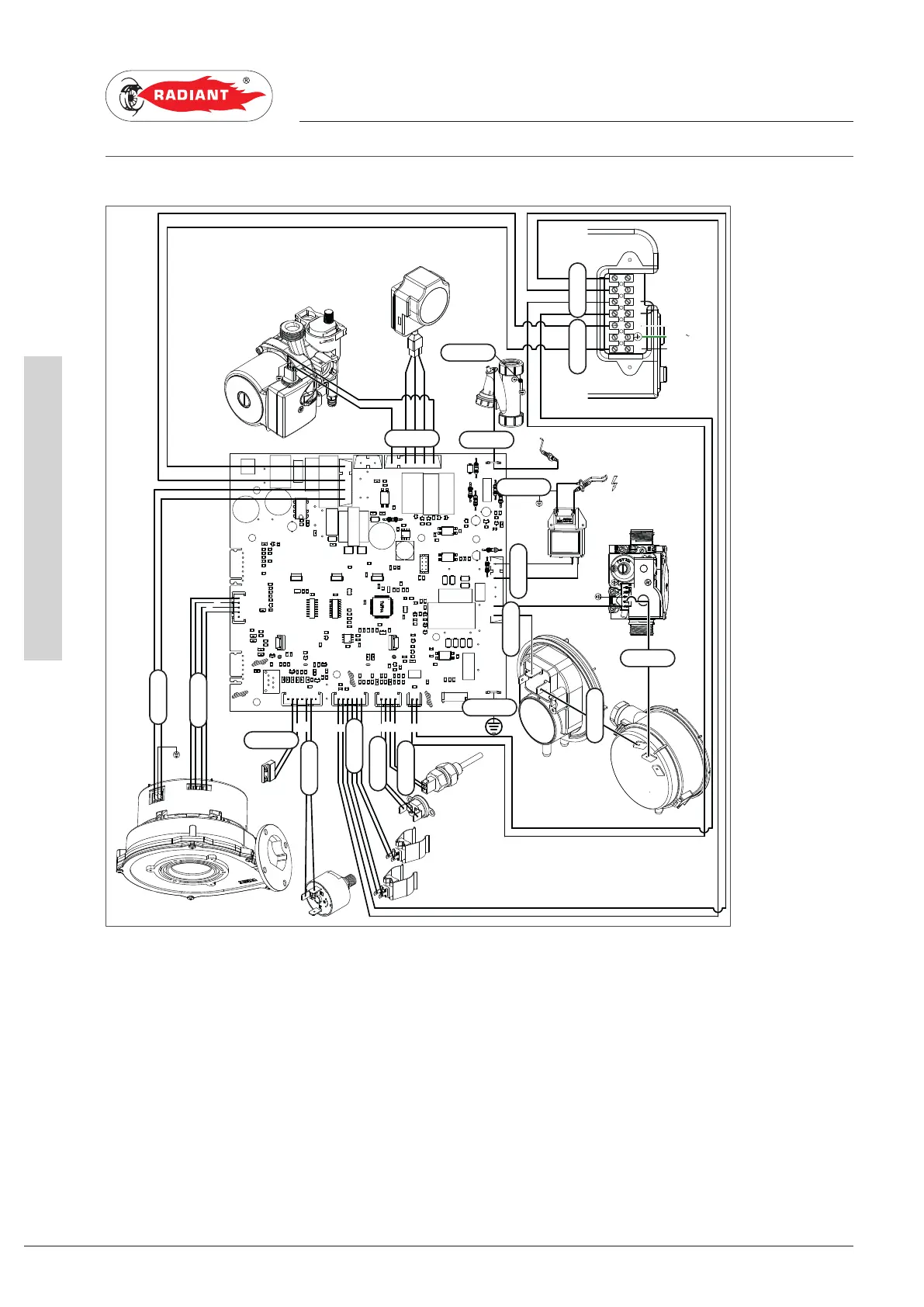

2.2.12. WIRING DIAGRAM
ER: IONIZATION ELECTRODE TS: WATER TEMPERATURE HIGH LIMIT
SWITCH
MP: PANEL TERMINAL BL: BLUE
EA: SPARK ELECTRODE PACQ:WATER PRESSURE SWITCH SE: OUTDOOR TEMPERATURE BR: BROWN
C: CIRCULATOR MF: MICRO-FLOW SWITCH TA: ENVIRONMENT THERMOSTAT O: ORANGE
VG: GAS VALVE SR: CENTRAL HEATING TEMPERATURE
PROBE
L: LINE Y: YELLOW
TRA:IGNITION TRANSFORMER SS: DOMESTIC TEMPERATURE PROBE N: NEUTRAL W: WHITE
TF: EXHAUST SAFETY HIGH LIMIT
SWITCH_(102°C)
EV: COMBUSTION BLOWER BK: BLACK GY. GREY
VD: DIVERTER VALVE PA: AIR PRESSURE SWITCH G: GREEN SF: CONDENSATE
COLLECTION SIPHON
br
bl
br
bl
br
bl
br
y
w
gy
EV
bk
bl
bk
br
MF
TS
TF
SR
o o
bl
br br
bl
bk bk
MP
Pacq
11
10
98
7
12
13
14
15
16
17
M12
M9
M7
M5
M2
M4
M8
M10
M15
M16
1
2
3
4
57
61
60
59
58
44 43 42 41 40
39 38
37 36 35 34 33 32
31 30
29 28
27 26
62
63
64
65
66
67
68
51
52
53
54
55
56
5
6
M13
M14
L
N
SeSe
TaTa
+24V
HS
PWM
GND
VD
br bl g
bl
br
EA
Tra
ER
C
SS
120 V
60 Hz
SF
2
1
3
PA
bl
bl
PA
3
2
1
VG
br
bl
40-00092
40-00223
40-00300
40-00300
40-00250
40-00312
40-00311
40-00277
40-00152
31428LA
40-00313
31396LA
40-00088
40-00106
40-00087
31388LA
31385LA31385LA
MAINTENANCE
CAUTION: Label all wires prior to disconnection when
servicing controls. Wiring errors can cause improper and
dangerous operation. Verify proper operation after servicing.
fig. 36
