2. MAINTENANCE
SUPPORT CENTER

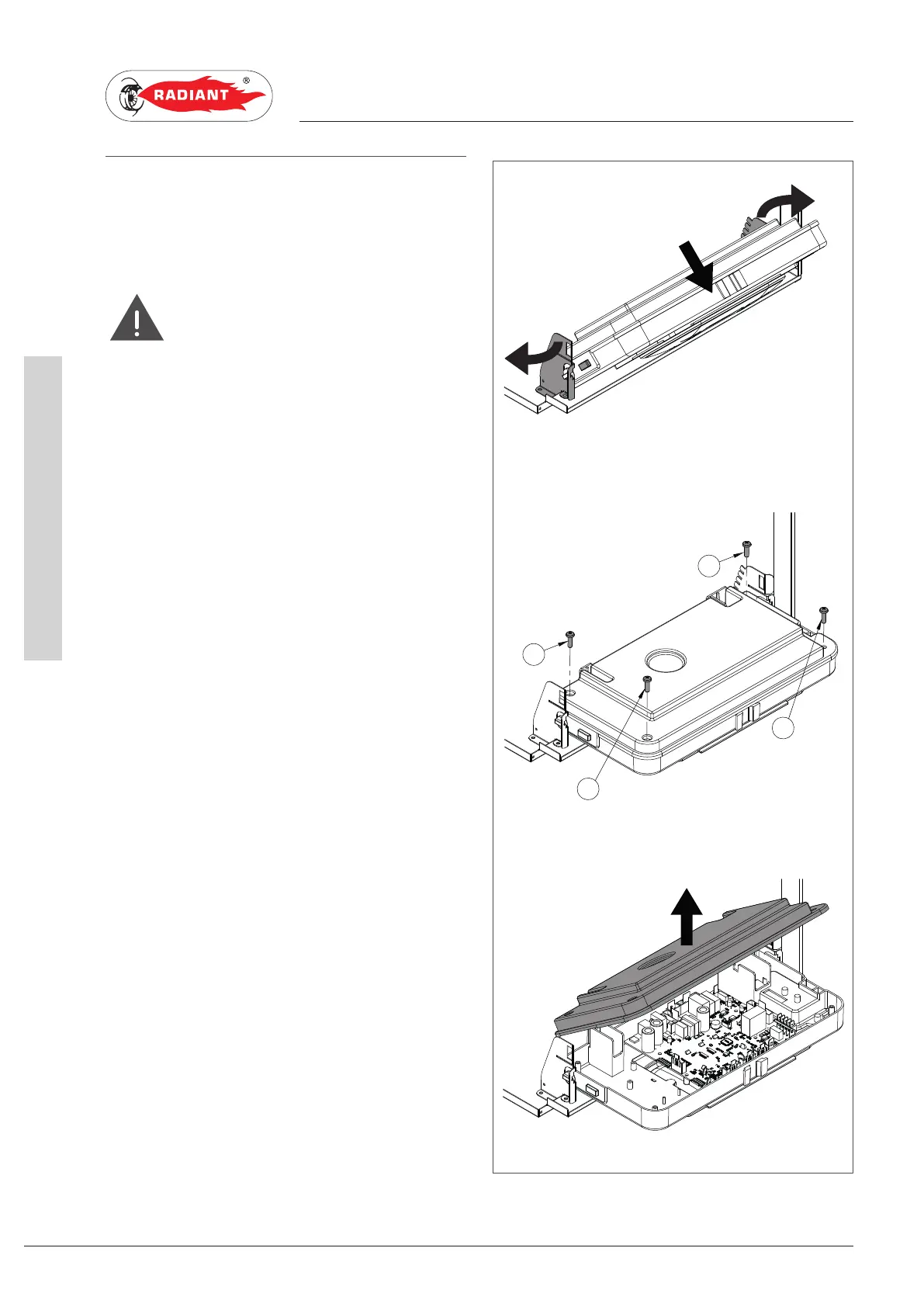

2.2.14. ACCESSING THE ELECTRONIC
BOARD
In order to intervene on the wirings of the control
panel, please proceed as follows:
DANGER
Cut off the voltage from the main switch.
› Grab at the same time the support brackets of
the control panel (fig. 38) loosening them and
turn the panel downwards;
› unscrew the four fastening screws 1 - fig. 38;
› remove the crankcase pulling it upwards.
1
1
1
1
MAINTENANCE
fig. 38
