2. MAINTENANCE
SUPPORT CENTER

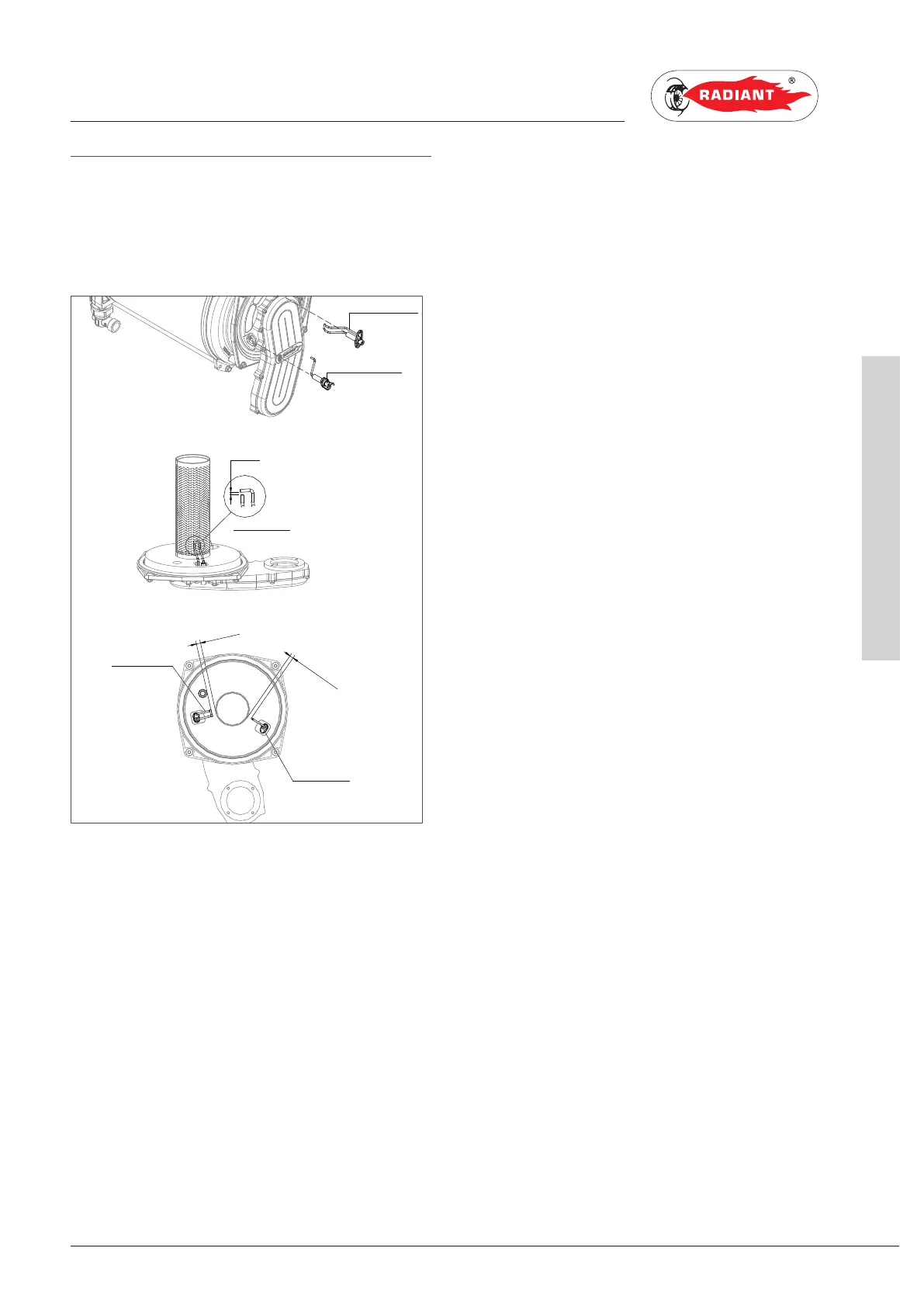

2.2.19. POSITIONS OF THE
ELECTRODES
If the boiler does not restart, check the positions of
the electrodes (especially the ignition electrode).
0.16"
(3mm)
0.31÷0.39"
(8÷10mm)
0.39÷0.47"
(10÷12mm)
DETECTION
ELECTRODE
LIGHT UP
ELECTRODE
LIGHT UP
ELECTRODE
DETECTION
ELECTRODE
LIGHT UP
ELECTRODE
MAINTENANCE
fig. 43
