Radio Systems Millenium-A Analog Console User Manual

Radio Systems Millenium-A Console Page 23
Illustration C-2

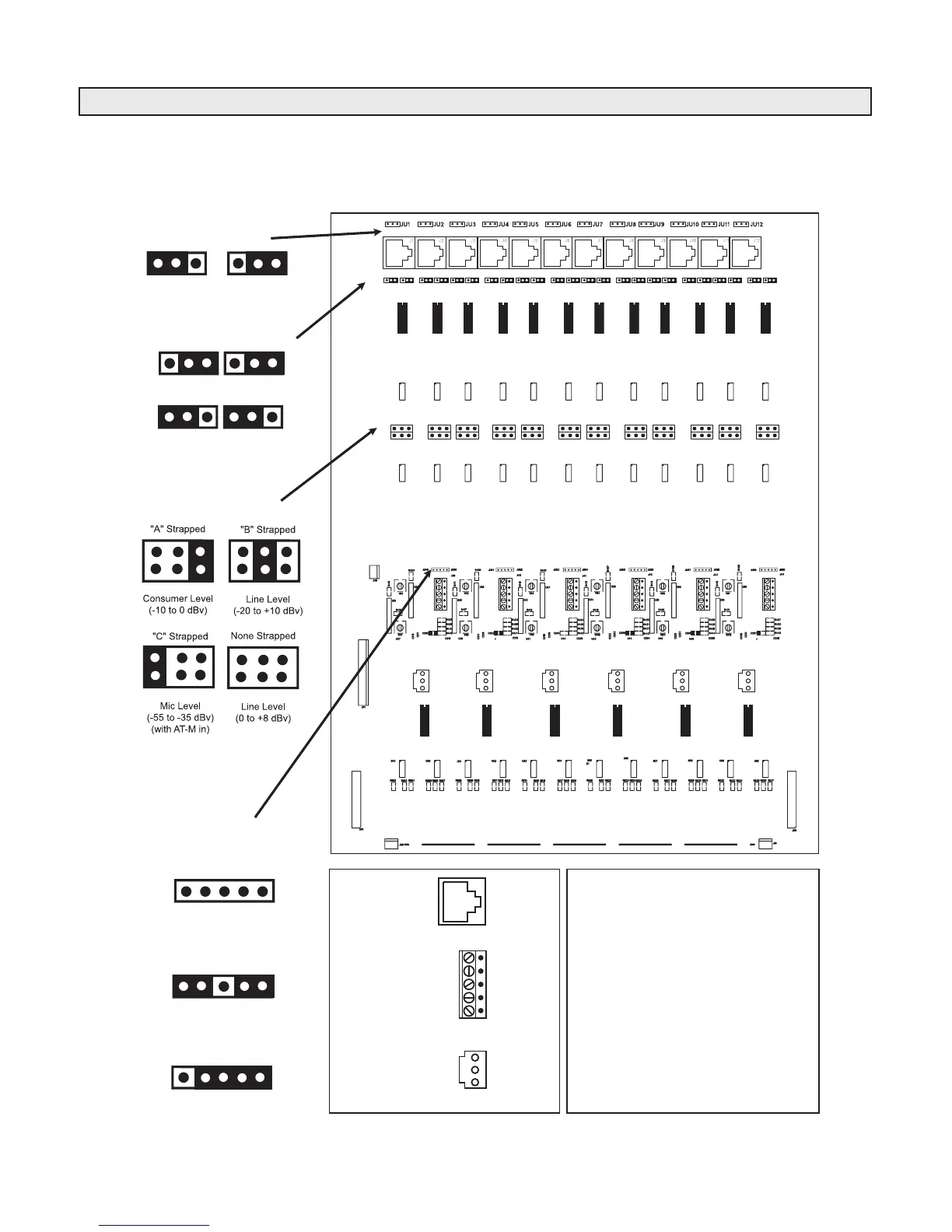

Six Channel Audio Board - RJ-45
IN CH
INPUT
1B
INPUT
1A
INPUT
2B
INPUT
2A
INPUT
3B
INPUT
3A
INPUT
4B
INPUT
4A
INPUT
5B
INPUT
5A
INPUT
6B
INPUT
6A
IN CH IN CH IN CH IN CH IN CH IN CH IN CH IN CH IN CH IN CH IN CH
1
2
3
4
5
6
7
8
10
9
11
12
13
14
15
16
17
Mono/Stereo Select
Channels Sensitivity Select
Loop Thru Bypass
and Mono Select
Loop-Thru
Connector in Circuit
Position A and C strapped
(Pins 1/2 & 4/5 strapped)
Position B and C strapped
(Pins 2/3 & 4/5 strapped)
No pins strapped
Loop-Thru
Connector in Bypass
Loop-Thru Connector Bypassed
and A & B Inputs in Mono
Input or Chassis
Ground Select
1 L+ In
2 L- In
3 R+ In
6 R- In
1 L In
2 L Out
3 Ground
4 R Out
5 R In
1 L Out
2 Ground
3 R Out
Stereo Input (Default)
Input Ground Chassis Ground
(Default)
Mono Input
Jumper Programming
SIX CHANNEL INPUT BOARD with RJ-45 CONNECTORS
C B A C B A C B A C B A C B A C B A C B A C B A C B A C B A C B A C B A
Post Fader Audio
Output Connectors
(Stereo unbalanced)
Pre Fader Audio
Loop-Thru Connectors
(Stereo unbalanced)
Input
Connectors
(Stereo balanced)
1. Input or Chassis Ground Select
2. Input Connector
3. Mono/Stereo Select
4. Input B Attenuator Dip
5. Input A Attenuator Dip
6. Right Channel Sensitivity Select
7. Left Channel Sensitivity Select
8. Pre-Fader Audio Loop-Thru Bypass Select
9. Pre-Fader Audio Loop-Thru Connector
10. Aux. Power Supply Output
11. Power Supply Input
12. Post Fader Audio Patch Point Connector
13. Mixer Control Cable DIP Socket
14. Mix Buses - Loop Out
15. Audio Ground - Loop Out
16. Audio Ground - Loop In
17. Mix Buses - Loop In
2
9
12
