Radio Systems Millenium-A Console Page 31

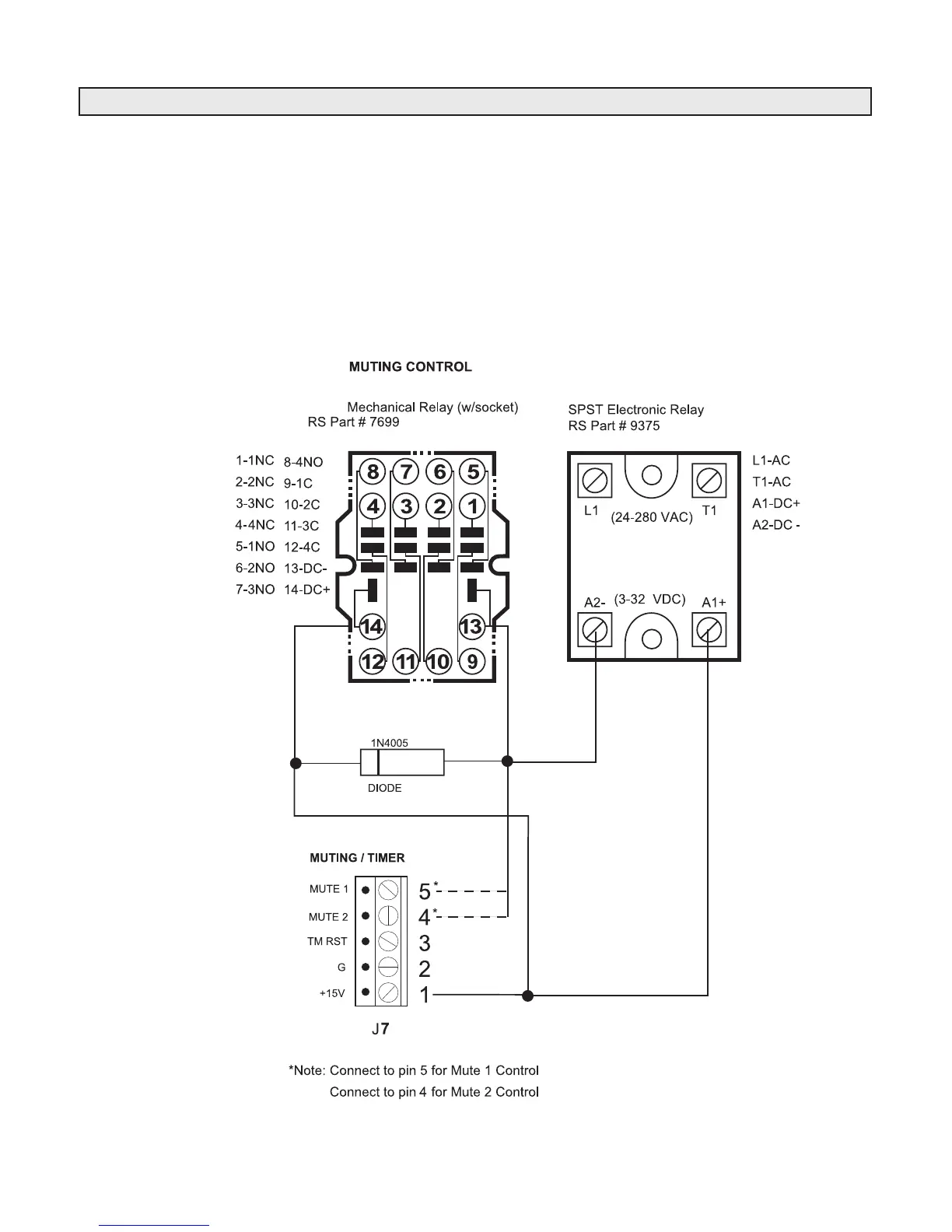

Illustration O-3

Auxiliary Control Relay Wiring

Connect the auxiliary relay (optional) (RS part #7699) to the console muting connector as shown below for mute-1

or mute-2 control of air lights and other outboard equipment.

A solid-state model of this relay (RS part #9375) is also available. Note that this part is only supplied in single pole

(SPST) configuration.

IMPORTANT NOTE: Take extreme care in wiring this relay to console connector J7 to ensure that no hazardous (110V)

voltage is applied to pins on this connector.

4PDT
