Chapter 1 Introduction
Radiolink OSD for image transmission is a video overlying module to have composite output
of the OSD signal and the camera video signal and is compatible with Mini Pix and Pixhawk to
output flight data. This OSD module makes all the necessary flight data on-screen display for FPV,
enabling RC fans to observe models real-time situation. Besides, USB port to setup parameter is
also provided so that RC fans can connect computer with to personalize the flight parameters
display and enrich the flight experience.

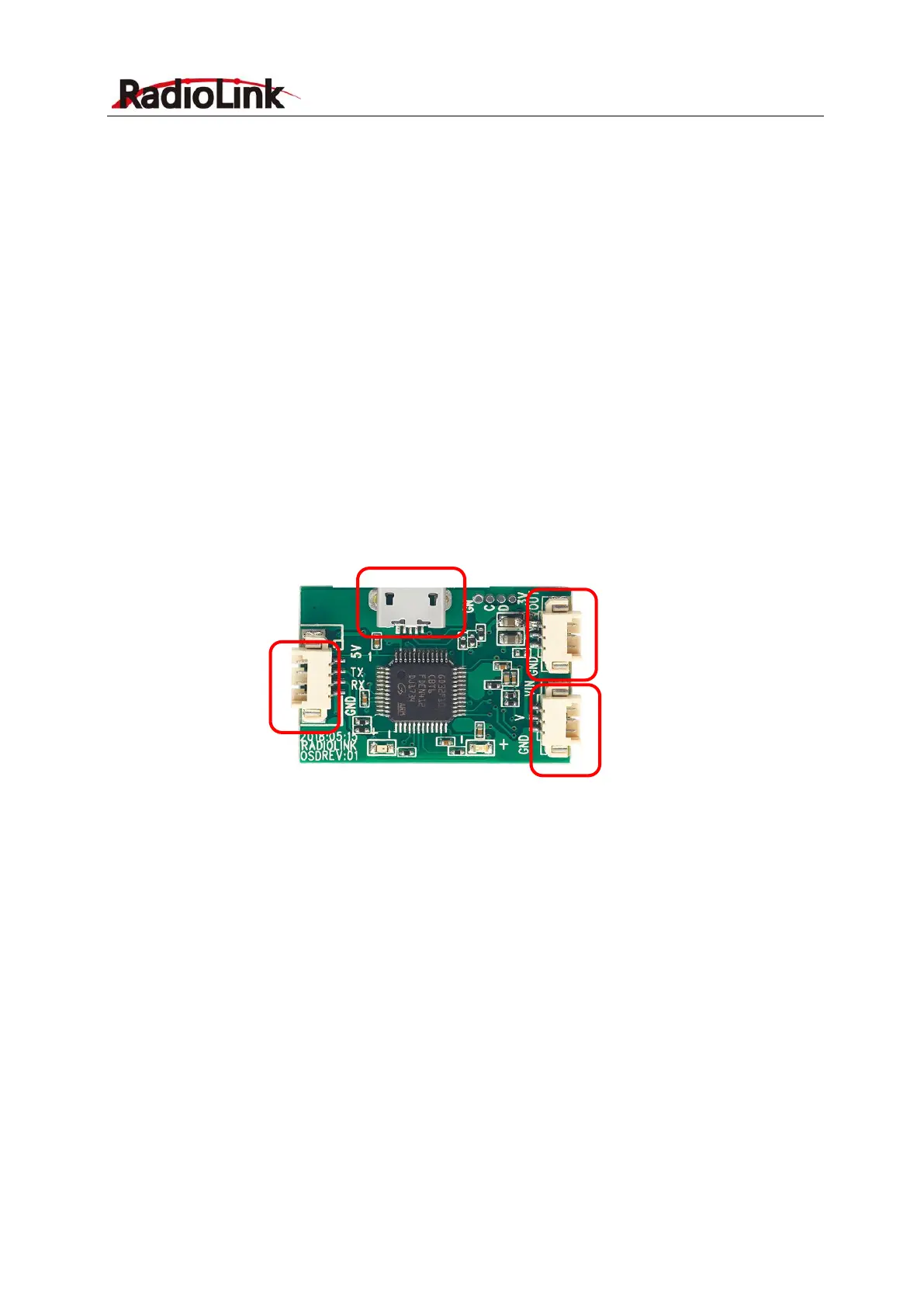

Port &Wires Connection
、
The other end of the 6pin is connected with the telem port of the flight controller.
Note Ports of Pixhawk and Mini Pix are different. Please take the correct one.
USB Port
IT Output
5V Input
GND
Camera Input
5V Output
GND
5V
TX
RX
GND
Flight Controller
Port 4pin
Transmission Port
Video Signal Input
Port
