- 11 -
3.3. STANDARD DELIVERY COMPONENTS LIST
• balance
• bottom insert (AS balance exclusively)
• centring ring (AS balance exclusively)
• weighing pan, open-work pan for AS with d=0,01/0,1mg exclusively
• draft shield (AS and PS balances, d=0.001g, exclusively).
• power supplier
• user Manual – CD version

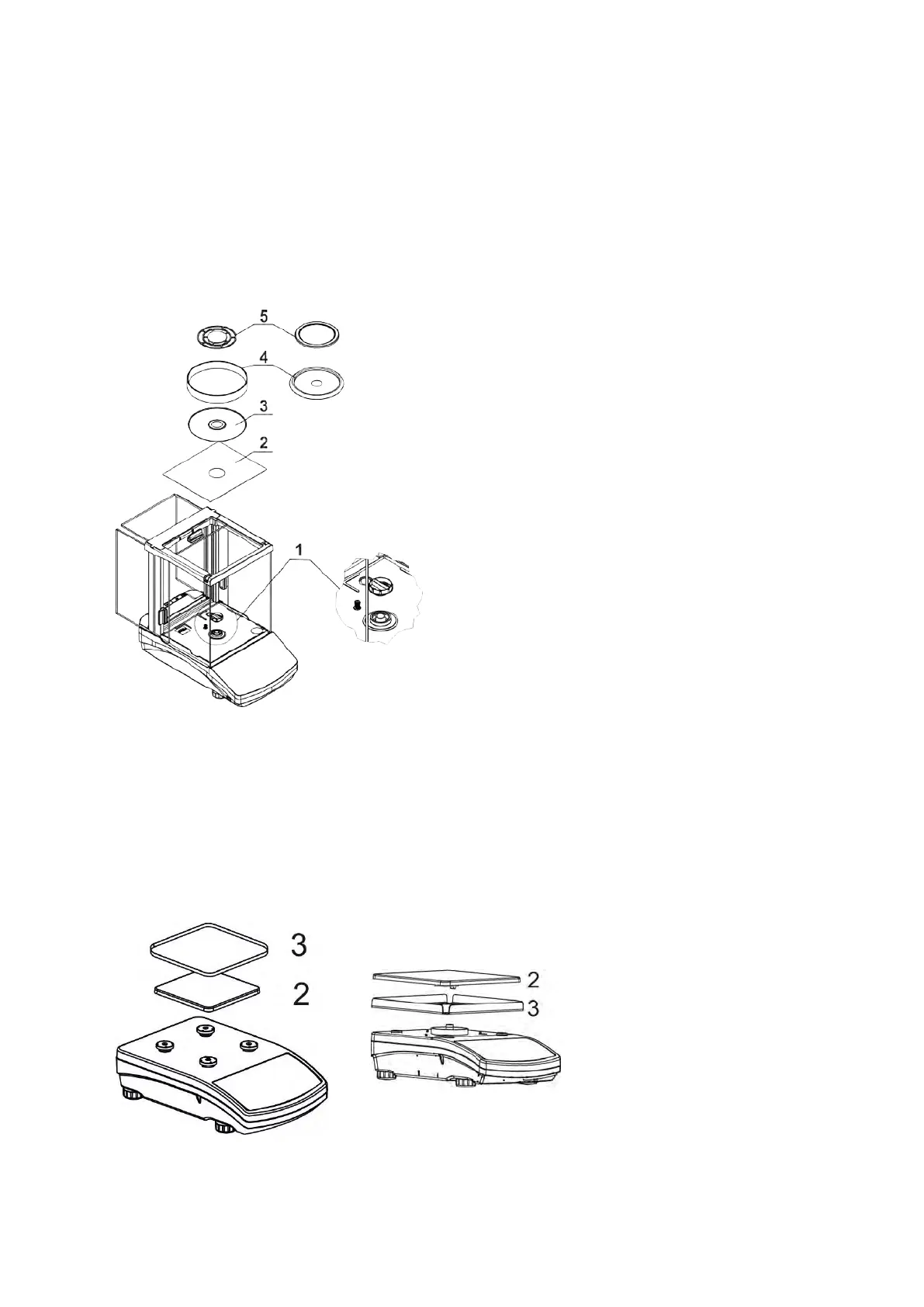

AS R2.PLUS
•
remove a transport lock (1) – gently press the transport lock and turn it accordingly to
<OPEN> instruction, keep the transport lock should your balance be transported in the
future.
• Install components following the above diagram:
• bottom insert (2),
• centring ring [embossment side up] (3),
• draft shield (4).
• weighing pan (5),
PS 200/2000-PS 1000
•
remove tape protecting the grounding spring, located on one of the rubber mandrels
• install components following the above diagram:
• weighing pan (2),
•
