RADWAG AS R2 User Manual

- 69 -

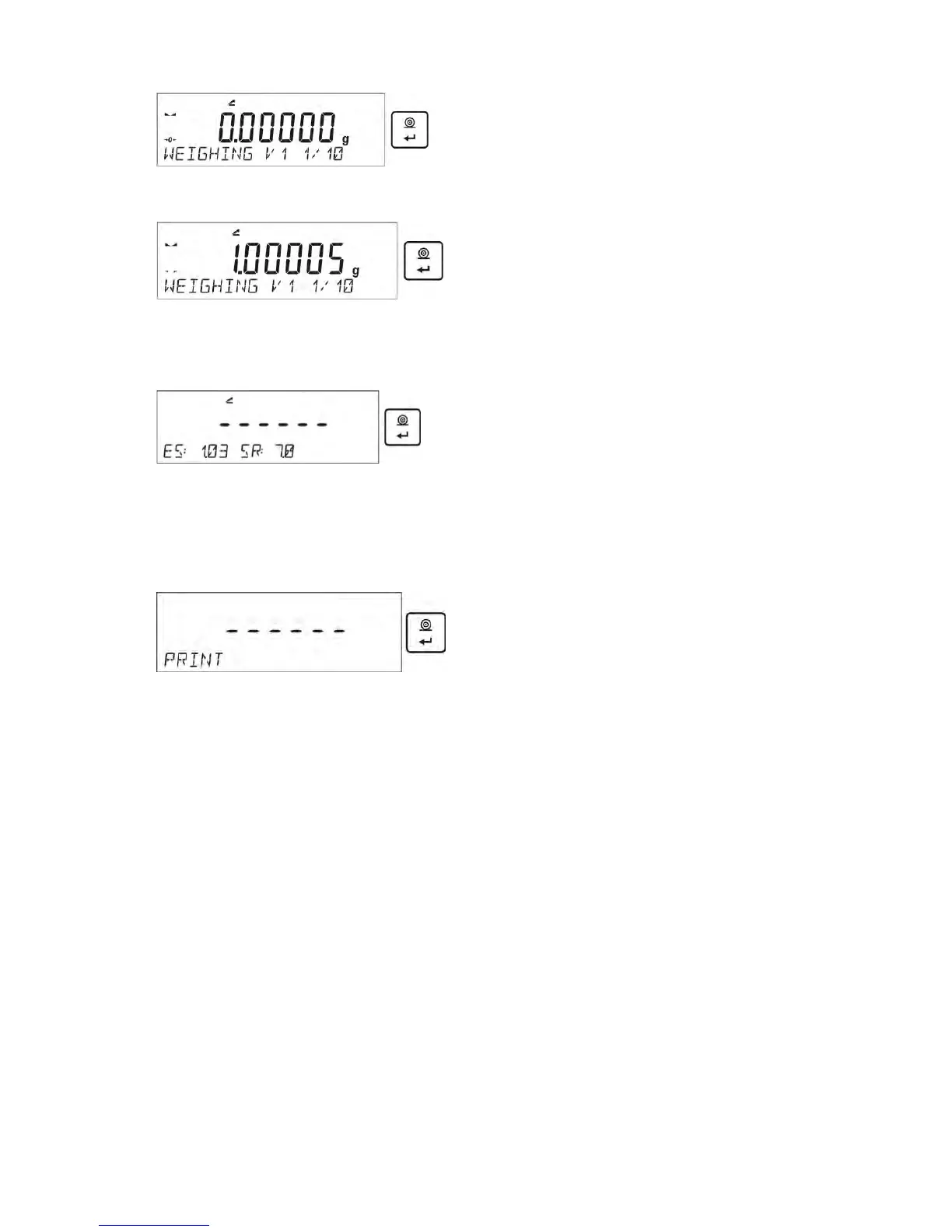

• Upon entering the data the computer software proceeds to pipettes calibration.
• Follow the displayed description and complete the procedure.
• By means of a pipette, dose the first portion of water, wait until the measurement is stable and
press ENTER to confirm.
• The computer software records the measurement. If P2.3.7 AUTOMATING TARING parameter
is set to value <YES> then the indication is automatically tared. If P2.3.7 AUTOMATIC
TARING parameter is set to value <NO> than the user must press TARE button in order to tare
the indication before dosing another portion of water.
• Upon completion of series of measurements, summary is displayed.
• Press ENTER to continue measuring process, press Esc. to stop it. Upon pressing Esc. button
the computer software returns to the main window.
• Upon pressing ENTER, while displaying the summary result for the last adjustable pipette
volume, a report is generated. The report is printed on a printer connected to the balance
(ambient conditions visible on a report are those that user entered at the beginning of the
calibration procedure). For fixed volume pipette the situation is similar if the user presses
ENTER while displaying summary for volume V1.
• The computer software returns to the main window.
• Now the user may either start new procedure for the same pipette or enter new data for a
different pipette.

RADWAG AS R2 Specifications

General

Readability	0.1 mg
Display	LCD (backlit)
Tare Range	-220 g
Linearity	±0.2 mg
Protection Class	IP43
Calibration	Internal
Interface	RS232, USB-A, USB-B
Power Supply	100 ÷ 240 V AC 50 / 60 Hz
Maximum Capacity	up to 220 g
