RADWAG AS R2 - Connectors; Connection Cables - Diagrams

- 7 -

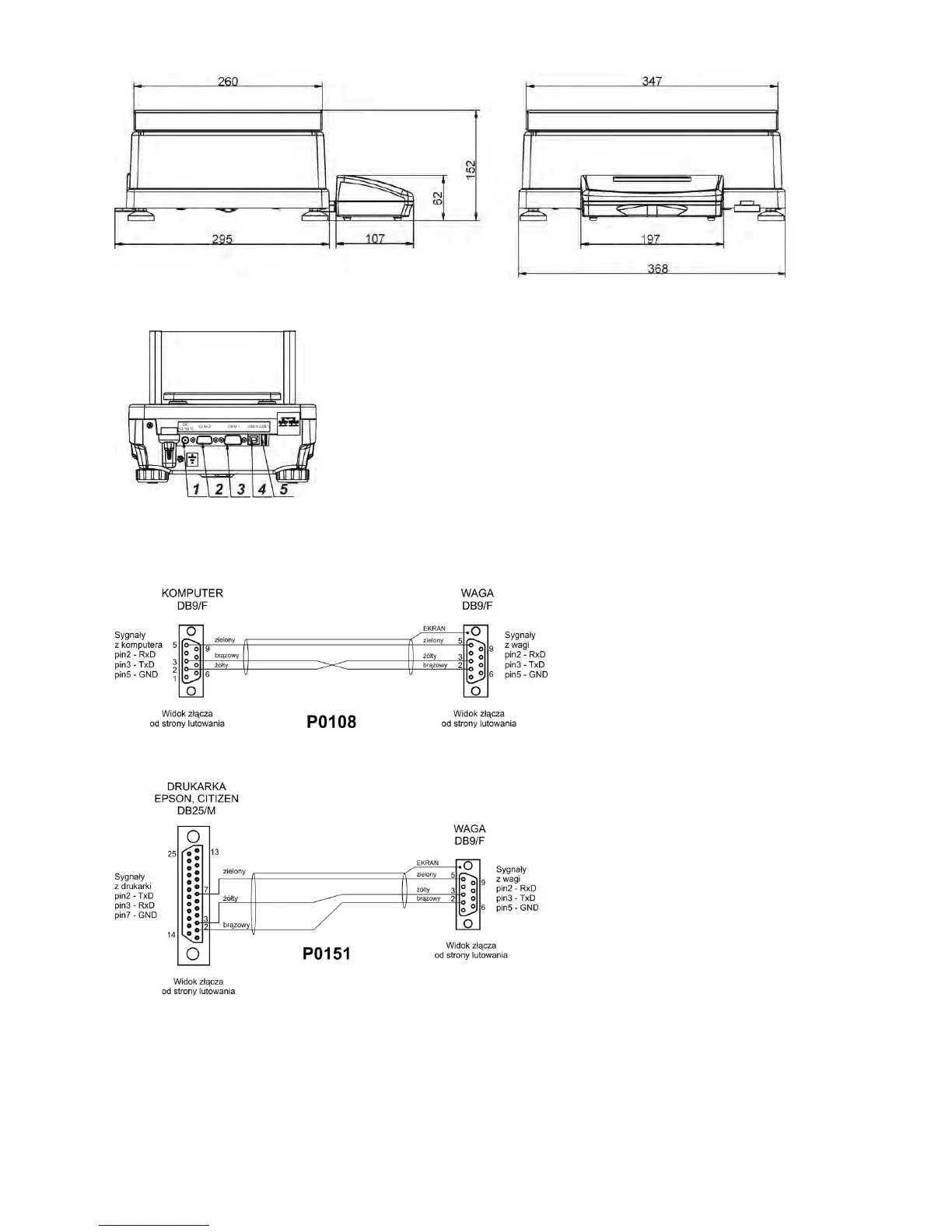

1.2. CONNECTORS
1
Power supply socket
2
COM 2 connector (additional display or external buttons)
3
COM 1 connector (printer)
4
USB 2, type B (computer)
5
USB 1, type A (keyboard)
1.3. CONNECTION CABLES - DIAGRAMS
Scale – computer cable (RS232)
Scale – printer cable (CITIZEN, EPSON)
