18. COMMUNICATION
The menu Communication enables the configuration of port settings, to which you
can get access by pressing
button.
The balance enables communicating with peripheral devices through the following
ports:
• COM 1 (RS232),
• COM 2 (RS232),
• USB type A
• USB type B
• WIFI,
Parameters of the USB ports are not configurable. The port type B is designed to
connect a printer or computer, and the port type A is designed to connect a
computer keyboard, bar code reader or USB flash drive.

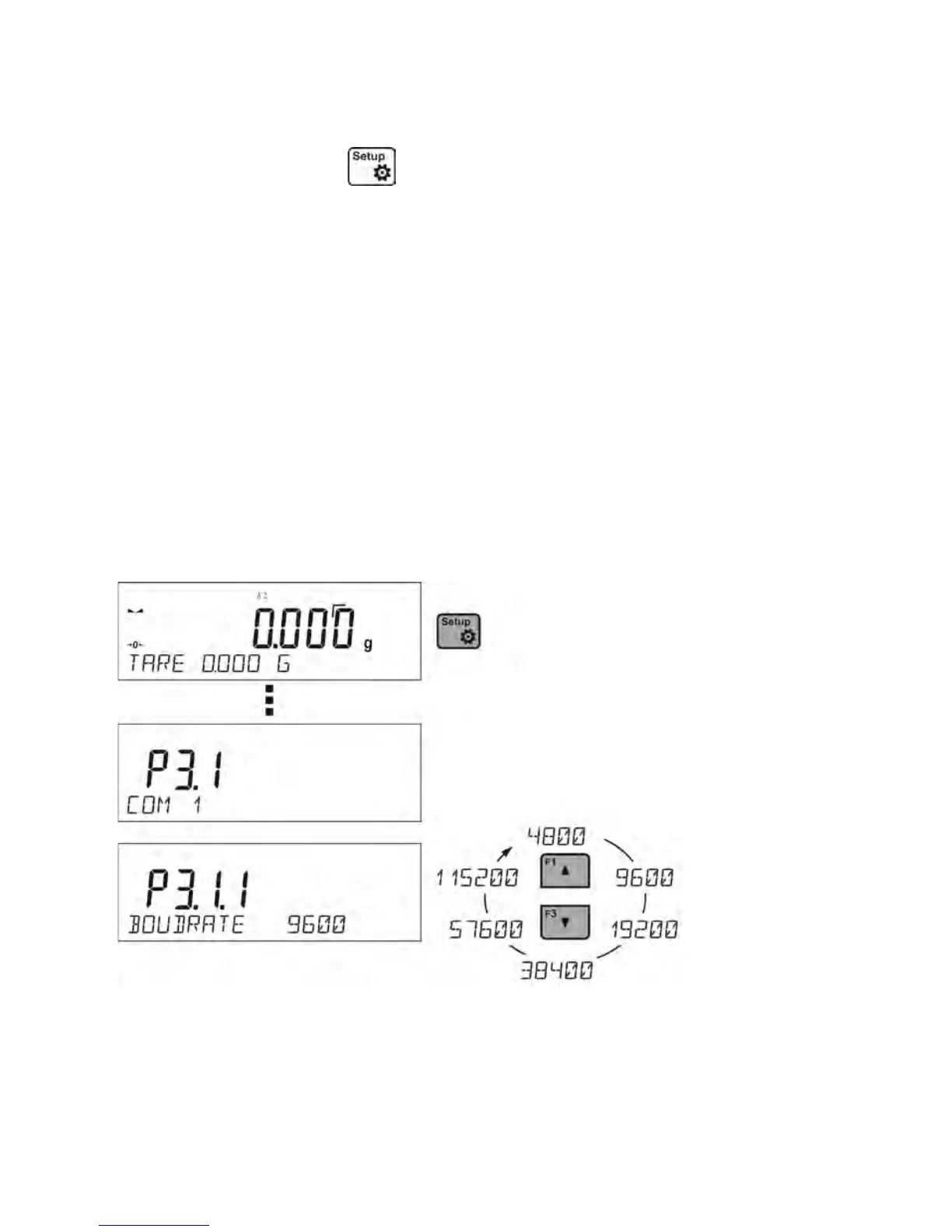

18.1. RS 232 ports settings
Procedure:
− Select a communication port <COM 1> or <COM 2>,
− Set relevant values
The RS 232 ports enable the following setting of transmission parameters:
• Baud rate - 4800, 9600, 19200, 38400, 57600, 115200 bit/s
• Parity - NONE, ODD, EVEN
