4.3. Levelling

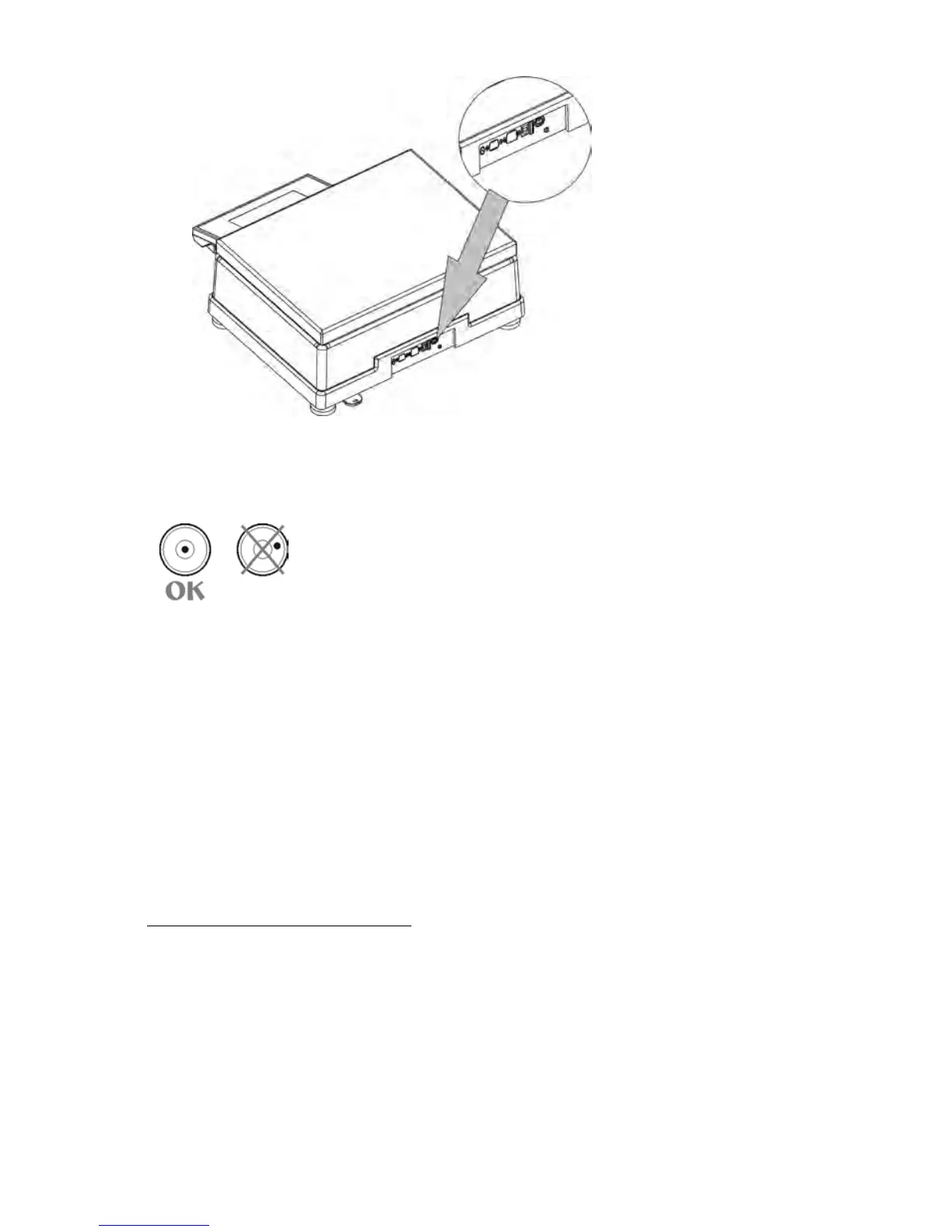

Before plugging to mains, level the balance by turning the
adjustable feet in a way that the air bubble of the level is in
its central ring. The balance should be placed at the
workplace firmly on all of its feet.
4.4. Cleaning
Balance should be cleaned with damp cloth by gentle wiping smudges of dirt.
Cleaning of the weighing pan when assembled may cause damage of the
measuring system of the balance. Hence, it is crucial to remove it from the
balance before cleaning.
In order to clean the glass walls of the draft shield of the XA R2 and AS R2
series balance, it is acceptable to remove the walls of the draft shield following
the below instruction.
Steps for XA.R2 series balance:
1. Twist off and remove the top glass wall safety frame, and slide the top
glass wall out of the slideway
