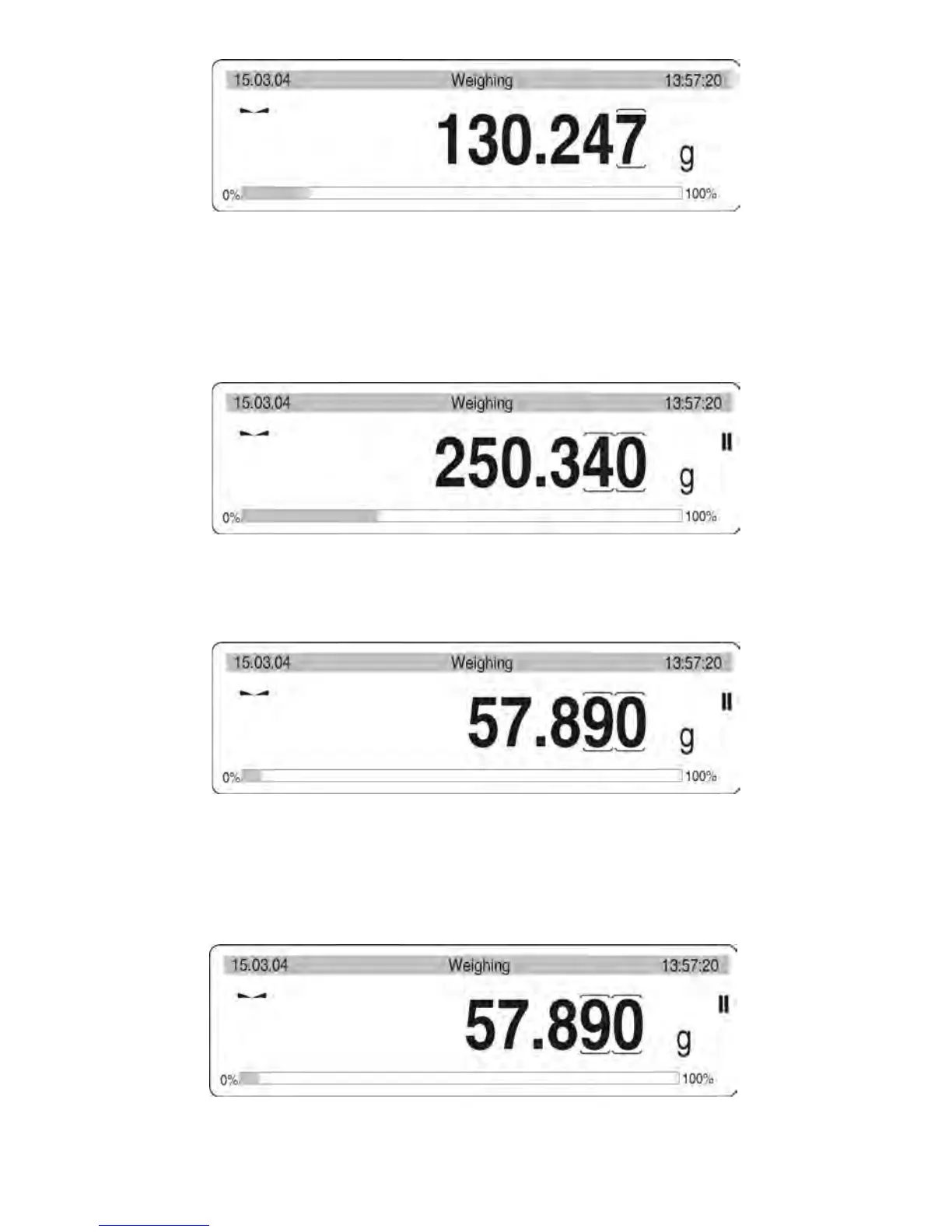

Fig. 9. Dual range balance – measurement result in the I weighing range
Transmission from weighing with the accuracy of the I weighing range to the accuracy of
the II weighing range takes place automatically on exceeding Max
1
point i.e. 200g. The
moment of entering into weighing with the accuracy of the II weighing range is signaled on
balance’s display by a pictogram II located on the right side of the display and an additional
tags over the last but one digit.
Fig. 10. Dual range balance – measurement result in the II weighing range
From now on the balance measures mass of weighed loads with the accuracy of the II
weighing range.
Fig. 10-1. Dual range balance – measurement result in the II weighing range
In order to return to weighing with the accuracy of the I weighing range:
• Take the weighed load off the weighing pan
Fig. 10-2. Dual range balance – measurement result in the II weighing range
