Display content

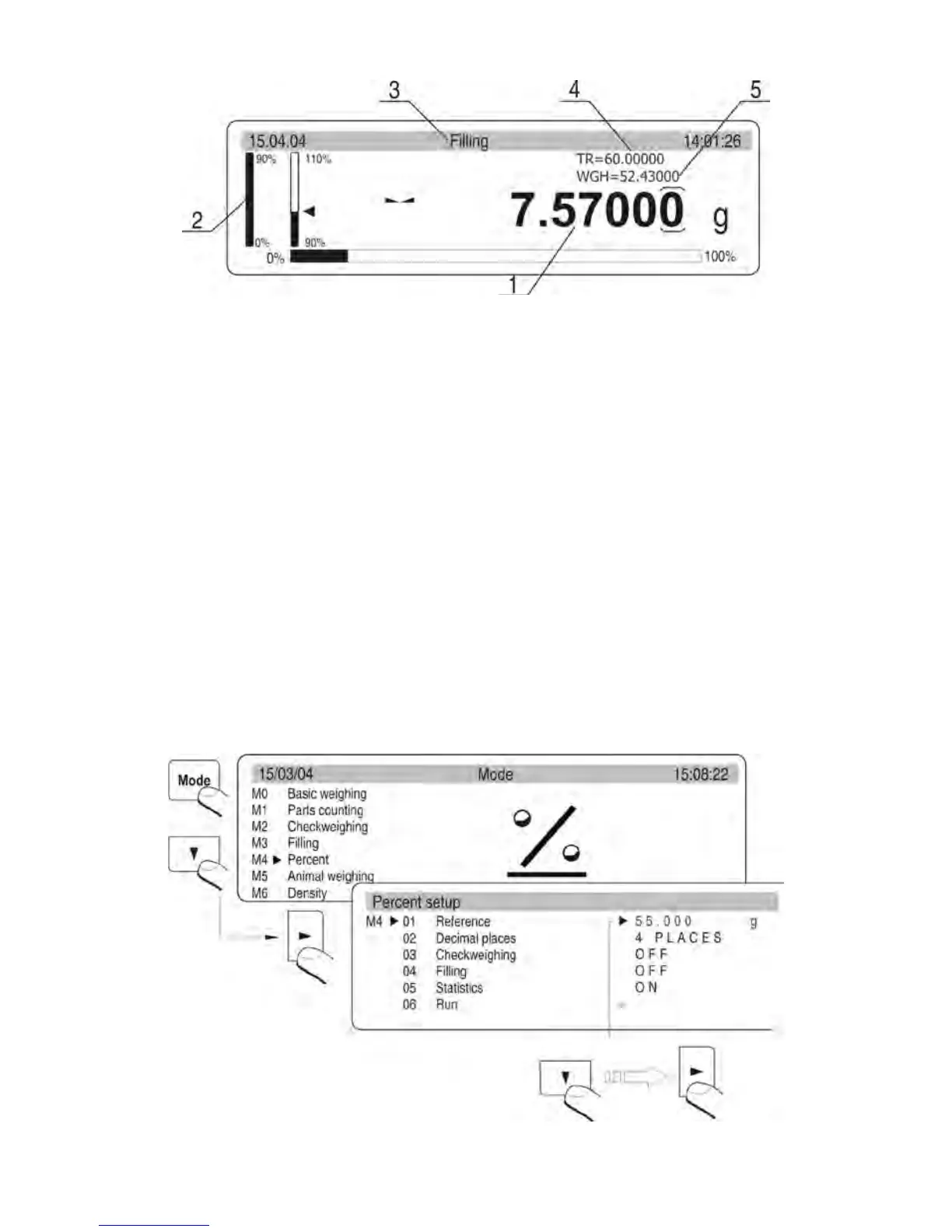

Fig. 43. Filling – display content
1 – mass to be placed on the weighing pan to reach a pre-defined target value
2 – bargraph
3 – working mode name
4 – TR (target) the value of target mass which is declared in mode parameters
(see Fig. 42 M3 01 Target mass)
5 – WGH mass currently placed on balance’s weighing pan
18.4. Percent setup
The purpose of this working mode is comparing mass of a weighed load with reference
mass which is specified in mode settings. The result of the comparison process is
displayed in percent.
The reference mass can be set in the options of the working mode or determined by
weighing (see procedure description at the end of point. 18.4. of this user manual).
Working mode Percent Setup can cooperate with additional working modes:
checkweighing, filling and statistics.
Mode activating
Fig. 44. Percent setup – mode activating
