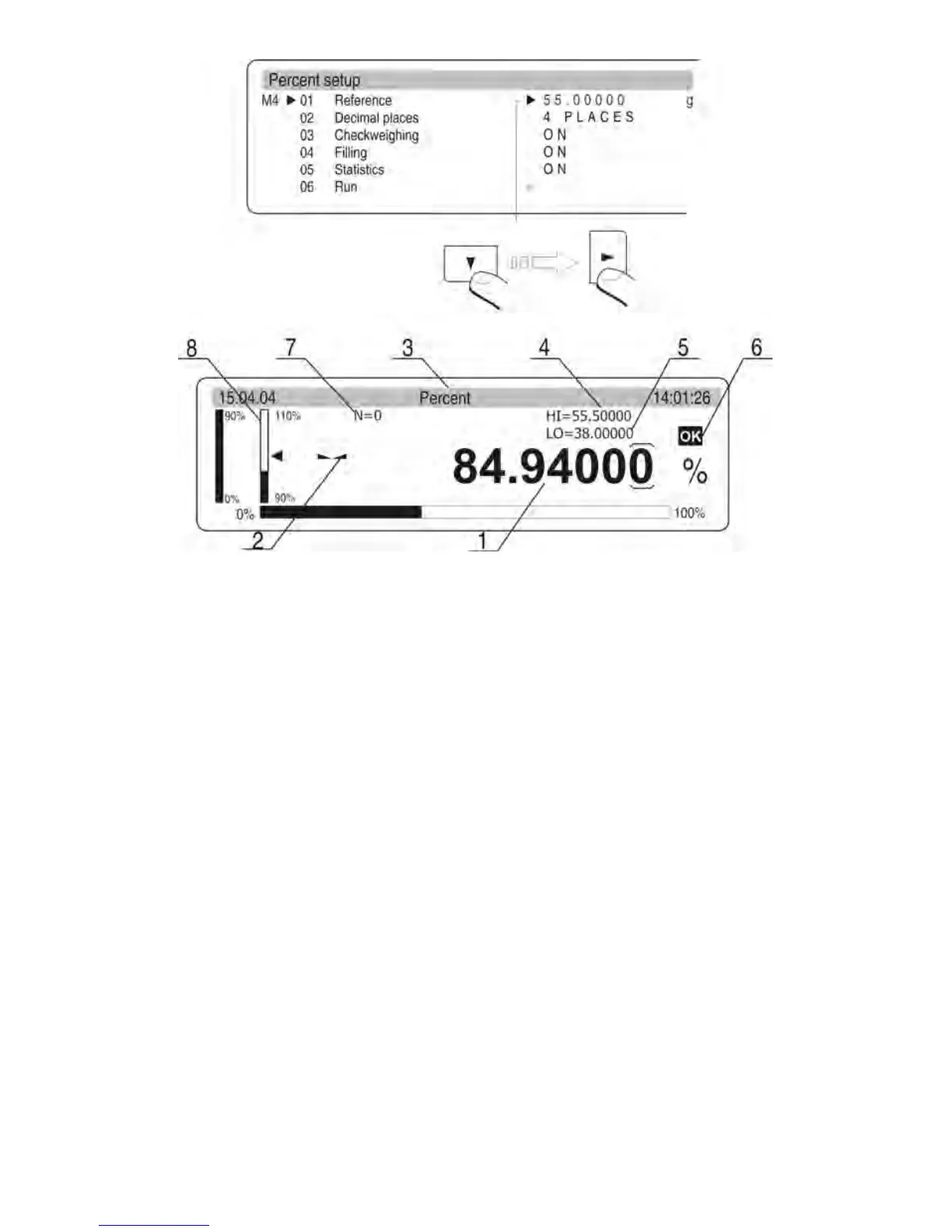

Fig. 46. Percent setup – cooperation with other working modes
1 – percent value, i.e. relation between mass of a load placed on balance’s weighing
pan and reference mass saved in parameter settings
2 – pictogram of stable measurement result
3 – working mode name
4 – REF reference mass
5 – WGH mass currently placed on balance’s weighing pan
6 – a pictogram indicating the weighing range of currently weighed sample
(LO – OK – HI)
7 – statistics mode enabled (N=0 – equals to no measurement records in current
statistics)
8 – dosing mode enabled (load mass between 90 – 110%)
On completing a measurement series, e.g. 10 measurements (no, of measurement
N=10) the user can preview the result of carried out statistics from the measurement
series.
− Enter working mode submenu
− Set the cursor next to a parameter 05 Statistics
− Press F key to enter the parameter 05 Statistics
− Set the cursor next to a parameter 02 Results
− Enter the parameter to preview results from completed statistics
− Press ENTER key to print statistics result on a connected printer/computer
− Return to working mode submenu and higher menu levels by pressing ESC
key.
