14
ESP-LXIVM Series Controllers
Pump Start Relay
IVM-OUT 2-Wire Control Devices can
control pump start relays that have a DC
latching input coil.
Connect the red IVM-OUT wire to the red
wire on the 2-Wire path. Then connect
the black IVM-OUT wire to the black wire
on the 2-Wire path.
Connect the red and white IVM-OUT wire
to the DC Latching Relay. Connect the
black and white IVM-OUT wire to the DC
Latching Relay.
Follow your Pump Start Relay wiring
instructions to connect input power and
pump.
For future troubleshooting or modifi-
cations, it is recommended to leave an
additional 3 feet (1 meter) of 2-Wire cable
stored in each valve box location.
NOTICE
Use only WC20 splice kits for all wiring con-
nections to the 2-Wire Path. Improper wiring
can cause serious damage to your controller
or irrigation system and work must be per-
formed by licensed electrician.
WARNING
All electrical connections and wiring runs must
comply with local building codes. Some local
codes require that only a licensed or certified
electrician can install power. Only professional
personnel should install the controller. Check
your local building codes for guidance.
Input
Power
Pump Start with
DC Latching Relay
Valve
Box
To Pump
Allow 3 ft. (1 m)
Extra Cable
Length
IVM-OUT

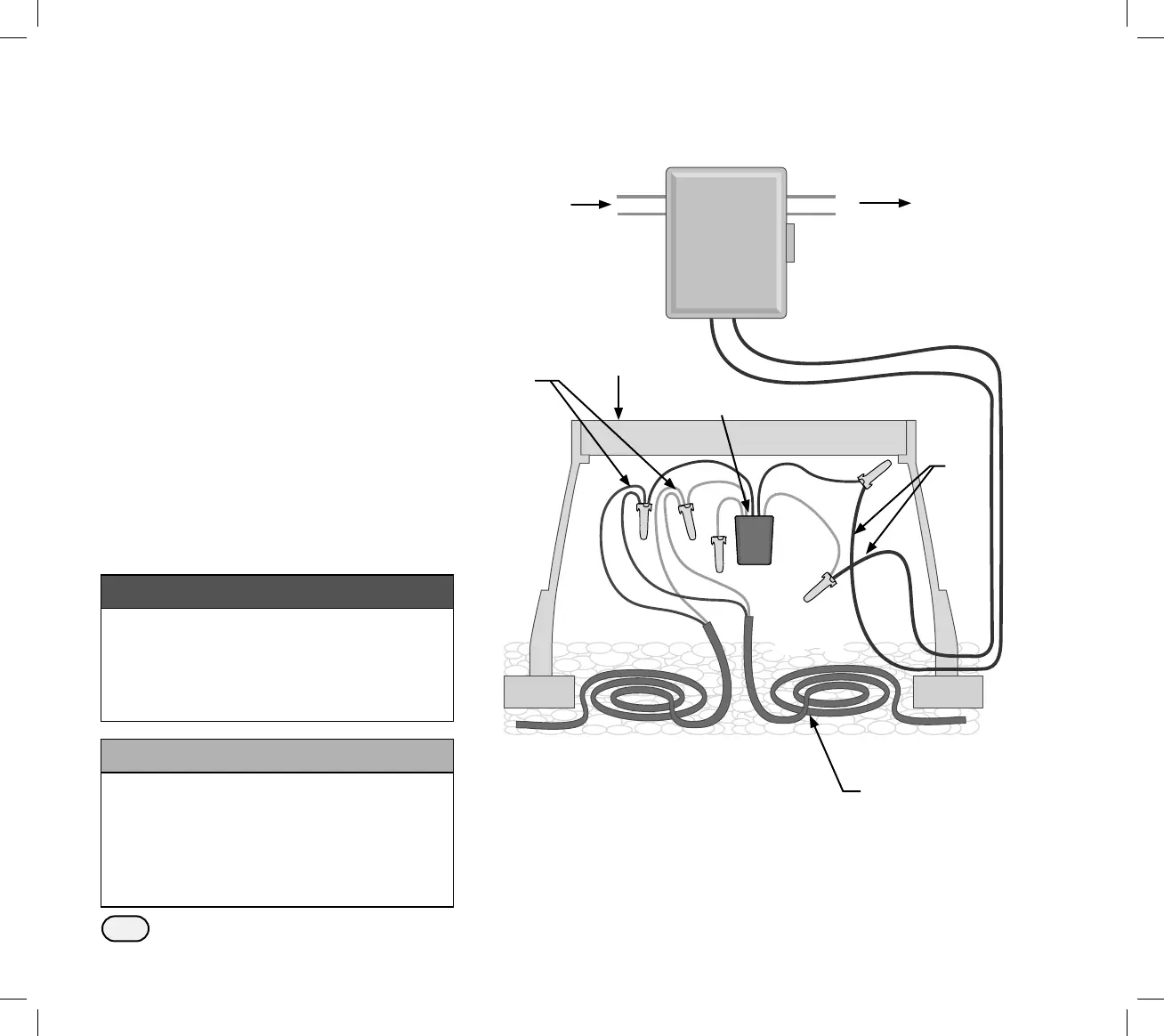

Typical IVM-OUT Pump Start Relay Wiring
