8
ESP-LXIVM Series Controllers

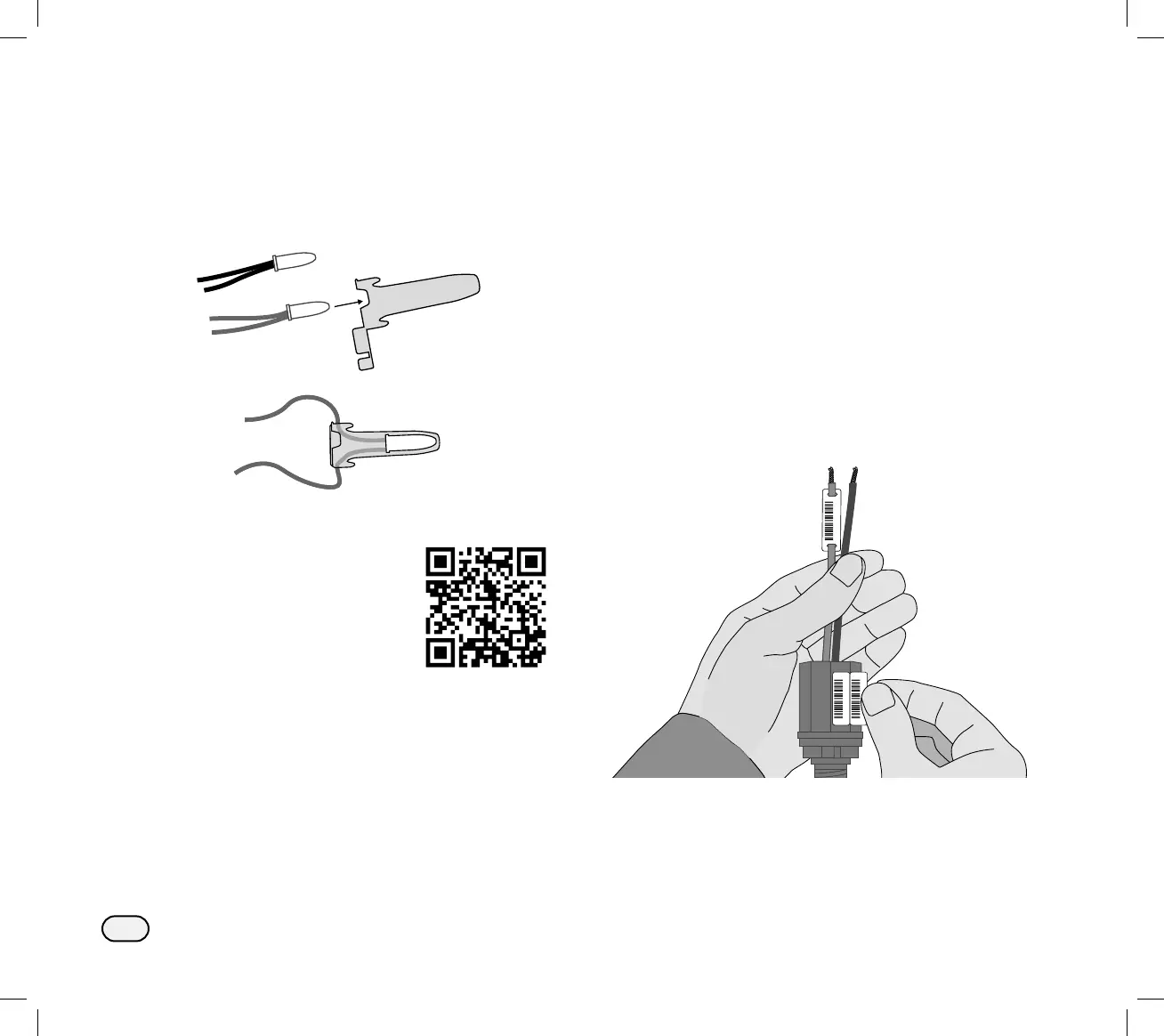

Insert the connected wires into the provided wire-nuts
and twist to secure.
Insert the wire-nut all the way into the WC20 connec-
tor. Position wires on side of the connector as shown
and then snap the cap shut.
Completed Wire Splice
Scan the QR code to see
a video on how to make
2-Wire cable connections.
Installation
2-Wire Address Labels
Before installing the 2-Wire Device, apply your 2-Wire
Device barcode labels to the appropriate fields on
the Programming Guide.
NOTE: See the ESP-LXIVM Programming Guide that
came with your controller.
Carefully peel off the station, master valve, flow or
weather sensor device barcode label.
Apply the 2-Wire Device address labels in the appropri-
ate fields on the Programming Guide.
NOTE: Do not remove the label from the carrier
attached to the wire.
40005
40005
40005
