Rain Bird ESP-Me Series User Manual

5

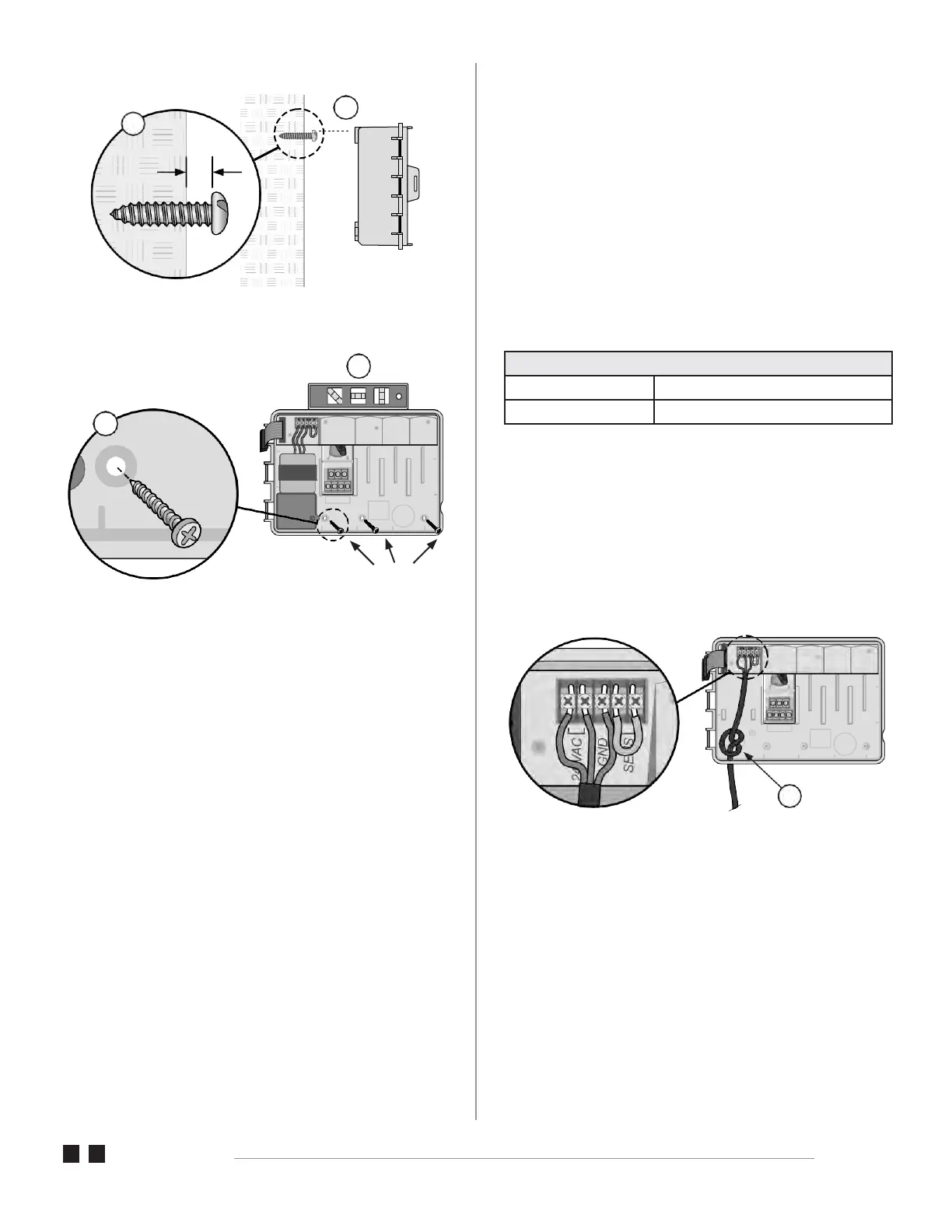

ESP-Me User Manual Installation
2.
1.
1/8 IN.
Mount Controller
b
NOTE: Use wall anchors (not included) if needed.
Connect Power
c
WARNING: DO NOT plug in the transformer or
connect external power until you have completed
and checked all wiring connections.
c
WARNING: All electrical connections and wiring
runs must comply with local building codes.
Some building codes require that only a licensed
or certified electrician can make the power
connections. Please check with your local building
code for guidance. Only professional personnel shall
install the controller.
Electrical Specifications (230V only)
Input 230VAC, 0.2AMP, 50/60Hz
Output 25.5VAC, 1.0AMP, 50/60Hz
Indoor Model
1. Route the transformer power cord through the conduit
opening at the bottom left of the unit. Knot the cable/
cord inside the controller cabinet to prevent it from
being pulled out.
d
CAUTION: Do not route the power cord through the
field wire opening at the bottom right of the unit.
3.
4.
VT MV COM 5 6 7 11 12 13 17 18 19
1 2 3 4 8 9 10 14 15 16 20 21 22
VT MV COM
1 2 3
4
VT = VALVE TEST
CONNECT
120 VAC
VT MV COM 5 6 7 11 12 13 17 18 19
1 2 3 4 8 9 10 14 15 16 20 21 22
VT MV COM
1 2 3
4
VT = VALVE TEST
1.
24
VAC
GND SENS
24 VAC
GND
SENS

Rain Bird ESP-Me Series Specifications

General

Display	LCD
Programming Schedules	Up to 4 independent programs
Weather Sensor Input	Yes
Controller Type	Modular
Seasonal Adjust	5% to 200%
Electrical Input	120 VAC
Electrical Output	24 VAC
Surge Protection	Yes
Watering Start Times	6 per program
Cycle and Soak	Yes
Rain Delay	Yes
Power Supply	External transformer
Housing Material	UV-resistant plastic
WiFi Capability	Optional (with LNK WiFi Module)
Watering Schedule	Custom days, odd/even days, cyclic
Remote Compatibility	Yes, with remote
Stations	4, 6, 12 (depending on model)
Start Times	6 start times per program
