Weather Station - Model “PRO”
Model “PRO” - Weather Station
Page
27
Nov., 2001
GT27145B Cozz

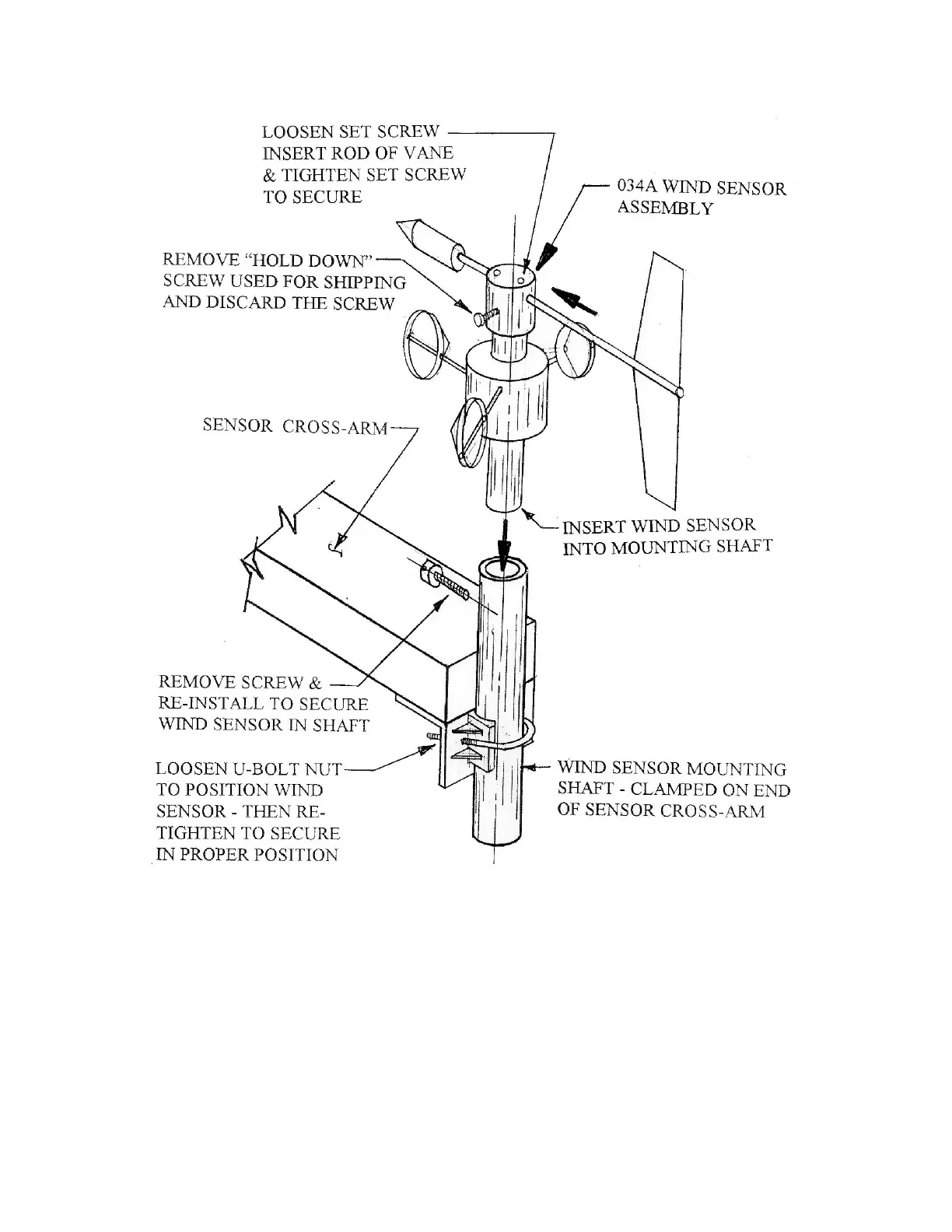

FIGURE 12 - WIND SENSOR INSTALLATION DETAIL
INSTALLATION OF RELATIVE
HUMIDITY / TEMPERATURE
SENSOR AND RADIATION
SHIELD:
