Weather Station - Model “PRO”
Nov., 2001 Page 32
Model “PRO”- Weather Station
Cozz GT27145B
cross-arm, on the support brackets on
the cross-arm near the tipping bucket
rain gage. Thread the three (3) leveling
screws into the threaded holes in the
support brackets. Be sure that the
spring, for each screw, is between the
mounting bracket and the support
bracket. Turn each screw two (2) or
three (3) turns into the threaded holes.
Install the sensor cross-arm to the top of
the Enclosure as previously described.
All other sensors, including the 034A
Wind Sensor, the Radiation Shield,
cables, etc. shall be installed as
previously described in this section.
All cables shall be connected to the
connectors on the back panel of the
Enclosure - as previously described and
as shown in FIGURE 15.

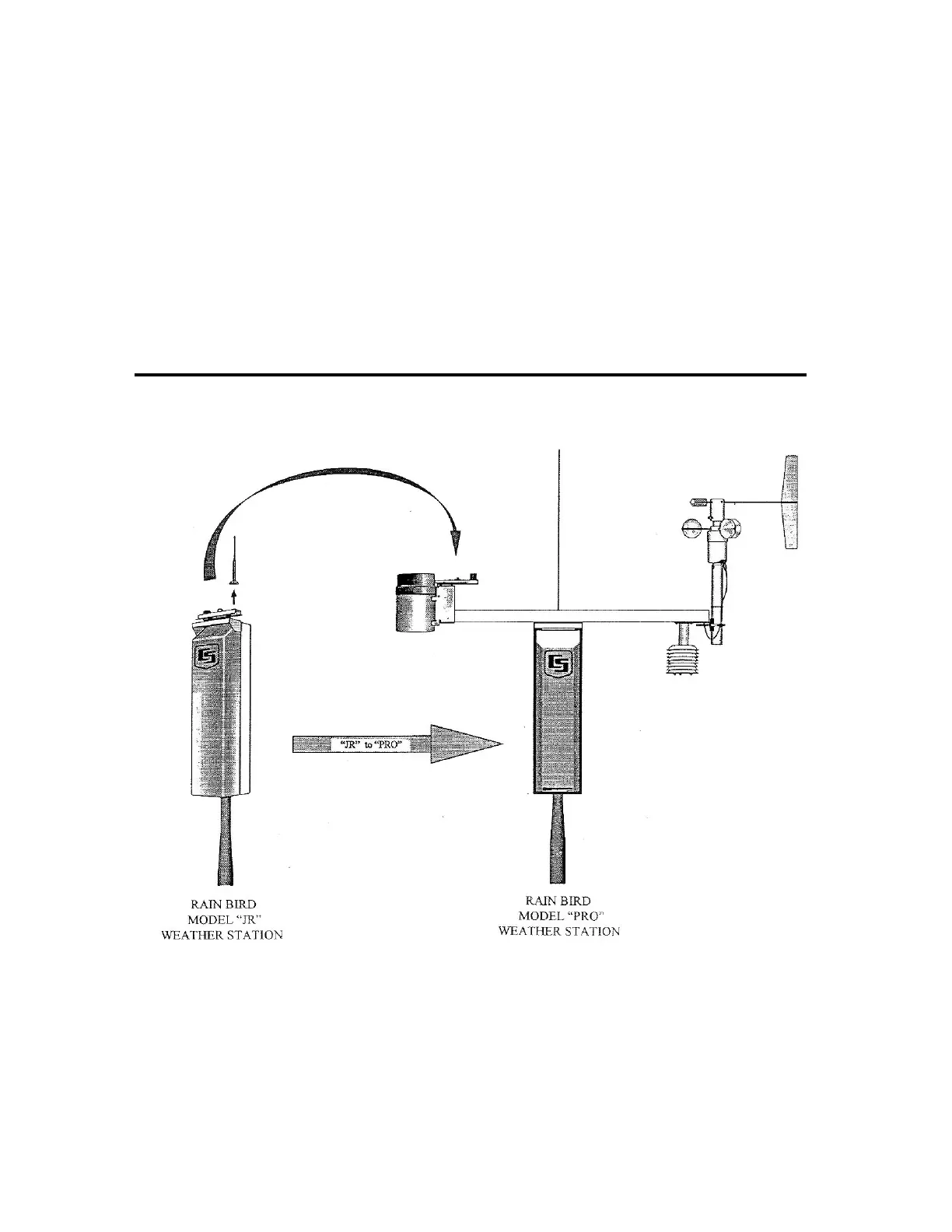

FIGURE 17 - UPGRADING A “JR” TO A “PRO” WEATHER STATION
