Weather Station - Model “PRO”
Model “PRO” - Weather Station
Page
29
Nov., 2001
GT27145B Cozz
The Solar Radiation Pyranometer, (with
the leveling device) is mounted, at the
factory, on a mounting bracket at the
opposite end of the cross-arm near the
Tipping Rain Bucket gage. By using
the three (3) leveling screws - level the
Pyranometer. After leveling - remove
the “RED” protective cap from the
Pyranometer.

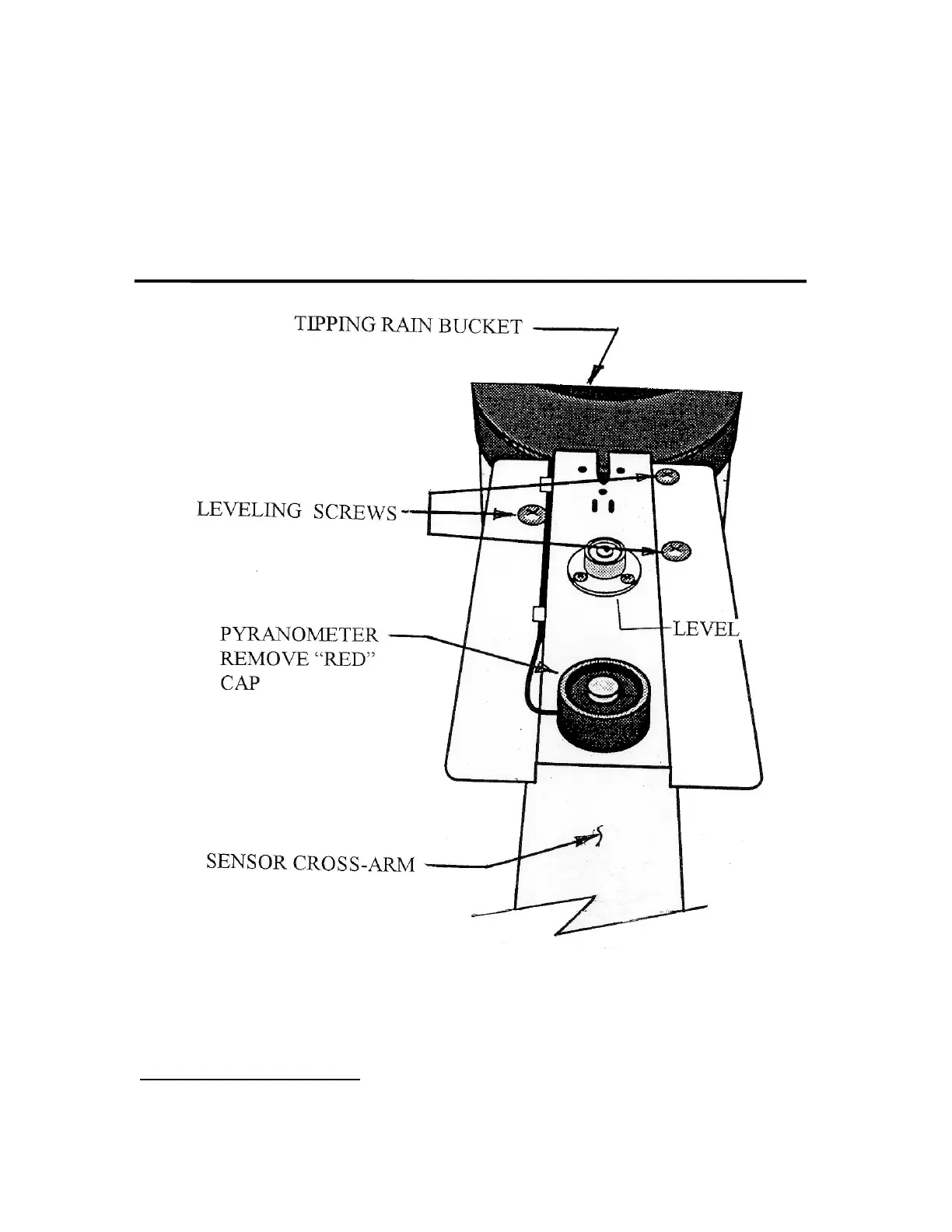

FIGURE 14 - SOLAR RADIATION SENSOR INSTALLATION DETAIL
SENSOR CABLE CONNECTIONS:
Refer to FIGURES 12 & 15:
