Pro2 Endstop Limit Switch Board Installation Instruction
STEP 2: Power Off
Power off the printer.

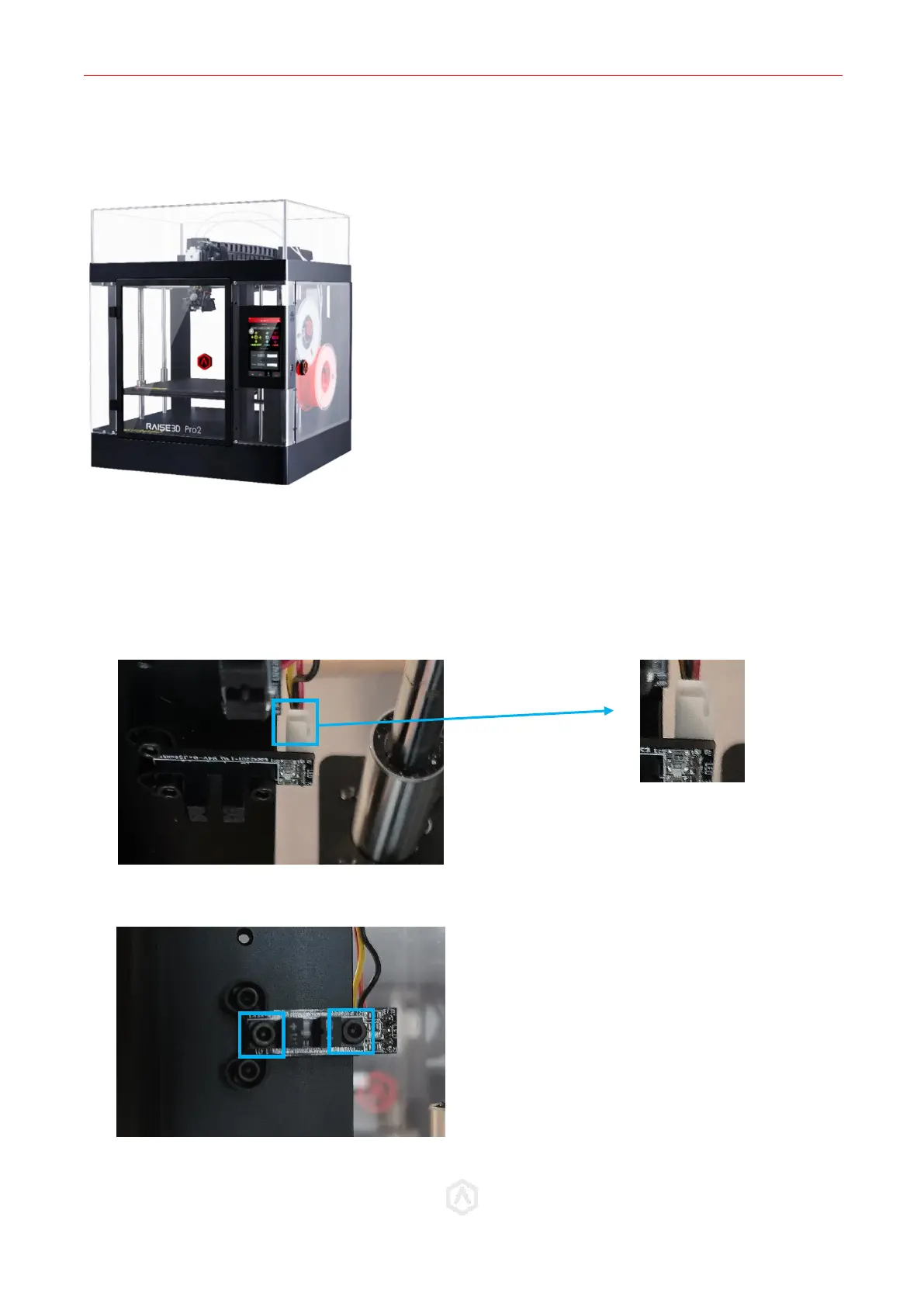

STEP 3: Remove the Z-Endstop Limit Switch Board
⚫ The steps of replacing Endstop Board are similar for different directions. We will use Z direction
here as reference.
⚫ Unplug the cable on Z-Endstop Board.
⚫ Remove the two fixing screws marked in image below and take the old Endstop Board off with casing.
